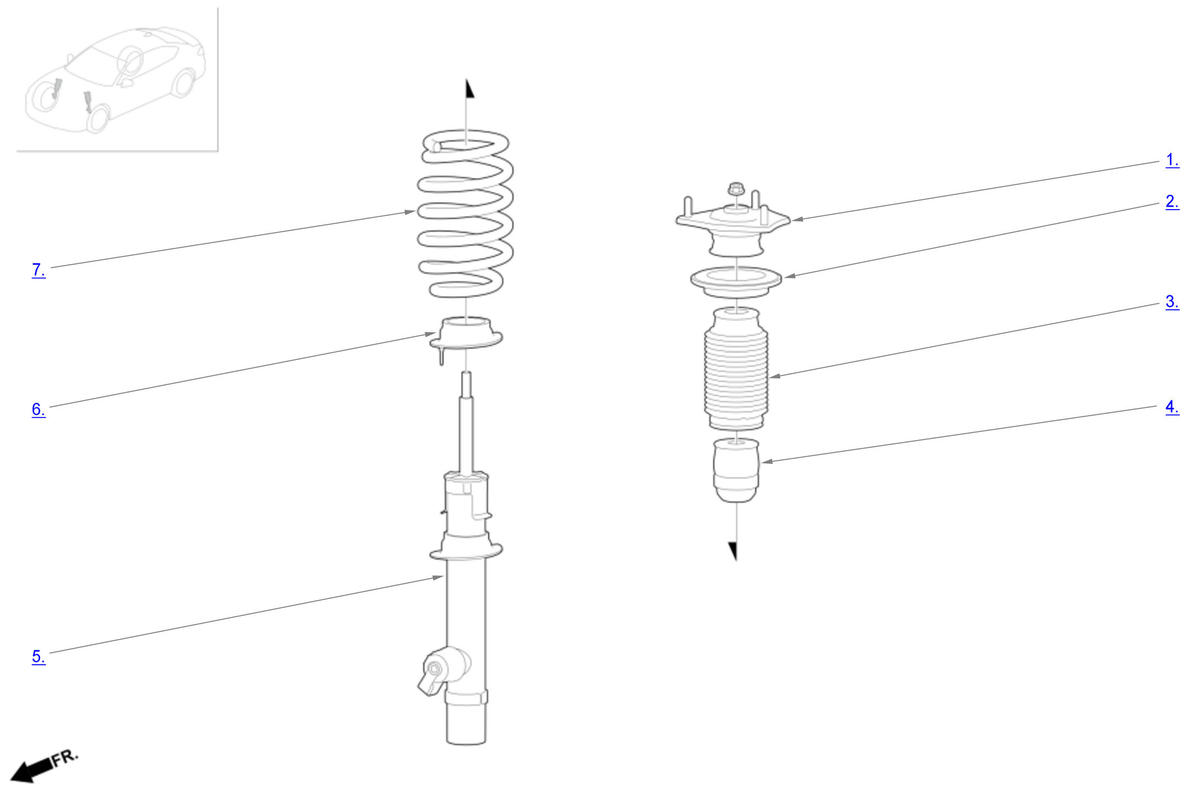

Exploded View Legend

GHH561311Courtesy of HONDA, U.S.A., INC.
  1. Damper Mounting Base
  2. Upper Spring Seat Rubber
  3. Dust Cover
  4. Bump Stop
  5. Damper Unit
  6. Lower Spring Seat Rubber
  7. Damper Spring
