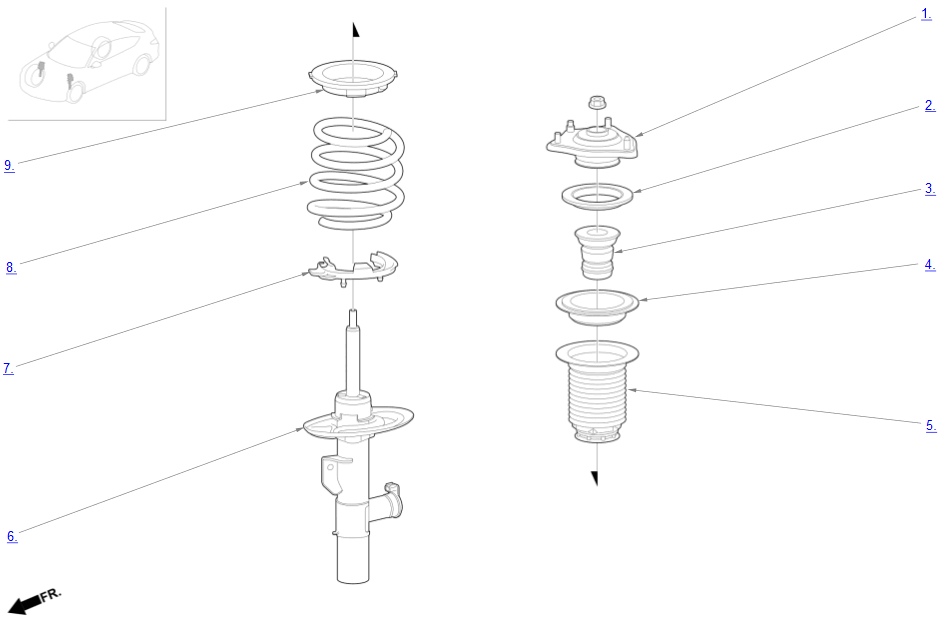

Exploded View

NOTE:

This illustration shows except Type-S.

GHH654720Courtesy of HONDA, U.S.A., INC.
  1. Damper Mounting Base
  2. Damper Mounting Bearing
  3. Bump Stop
  4. Upper Spring Seat
  5. Dust Cover
  6. Damper Unit
  7. Lower Spring Seat Rubber
  8. Damper Spring
  9. Upper Spring Seat Rubber
