Electrical Component Locator
>>
Control Units
Control Units
CONTROL UNITS LOCATION
Component
Location

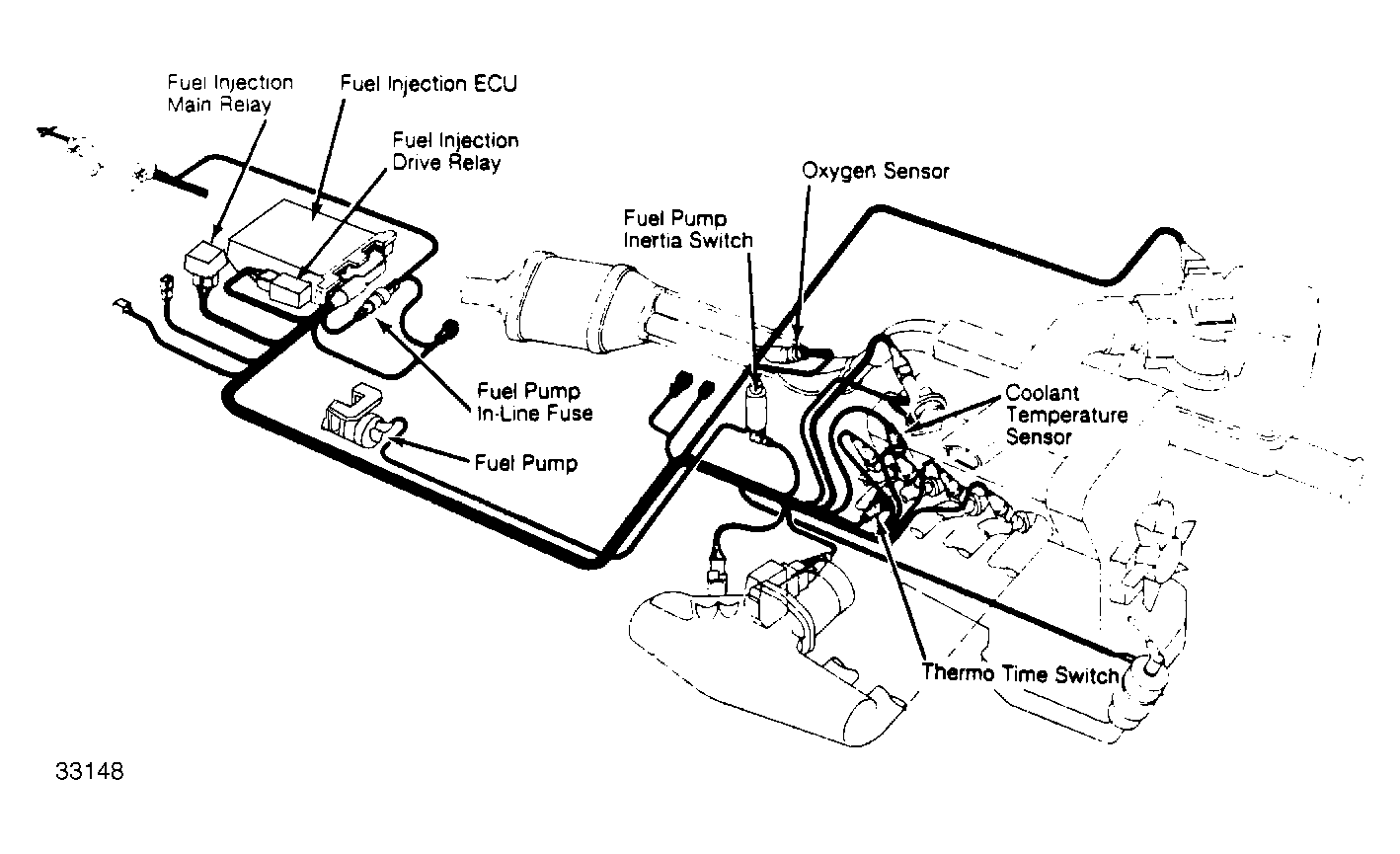

Fuel Injection ECU
Under floor panel behind passenger seat. See
Figure
.

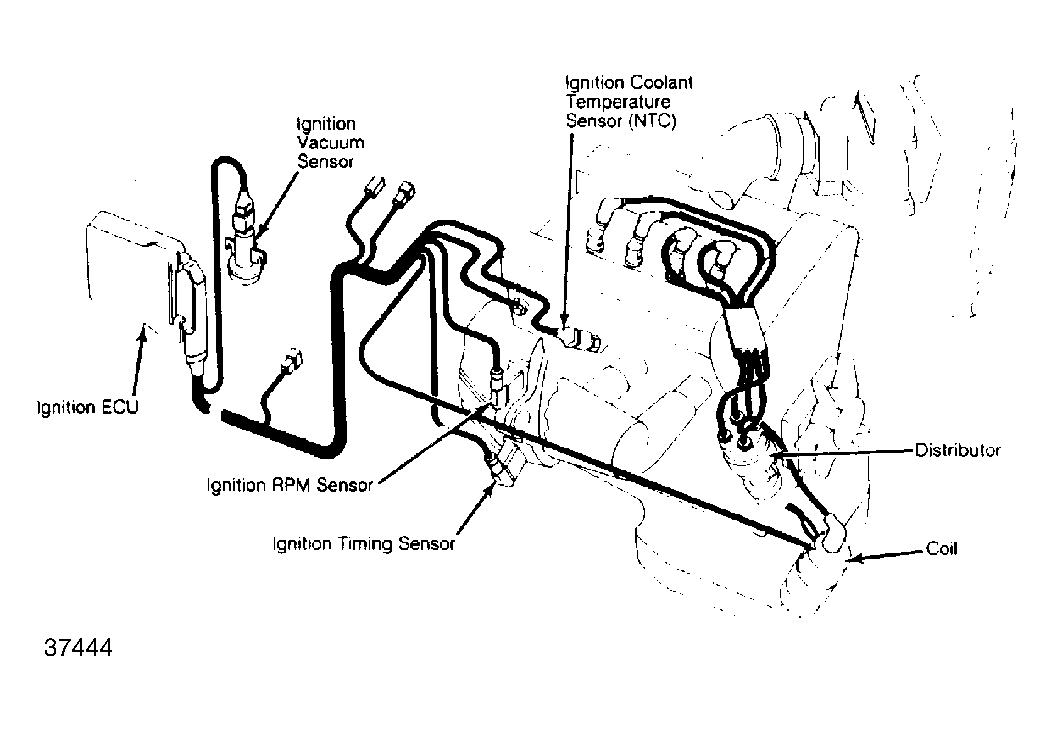

Ignition ECU
Behind right rear inner side panel. See
Figure
.
