Home >> Alfa Romeo >> 1987 >> Spider Graduate >> Repair and Diagnosis >> Engine Performance >> System >> Spark Control System >> Wiring Diagram

Spark Control System: Wiring Diagram

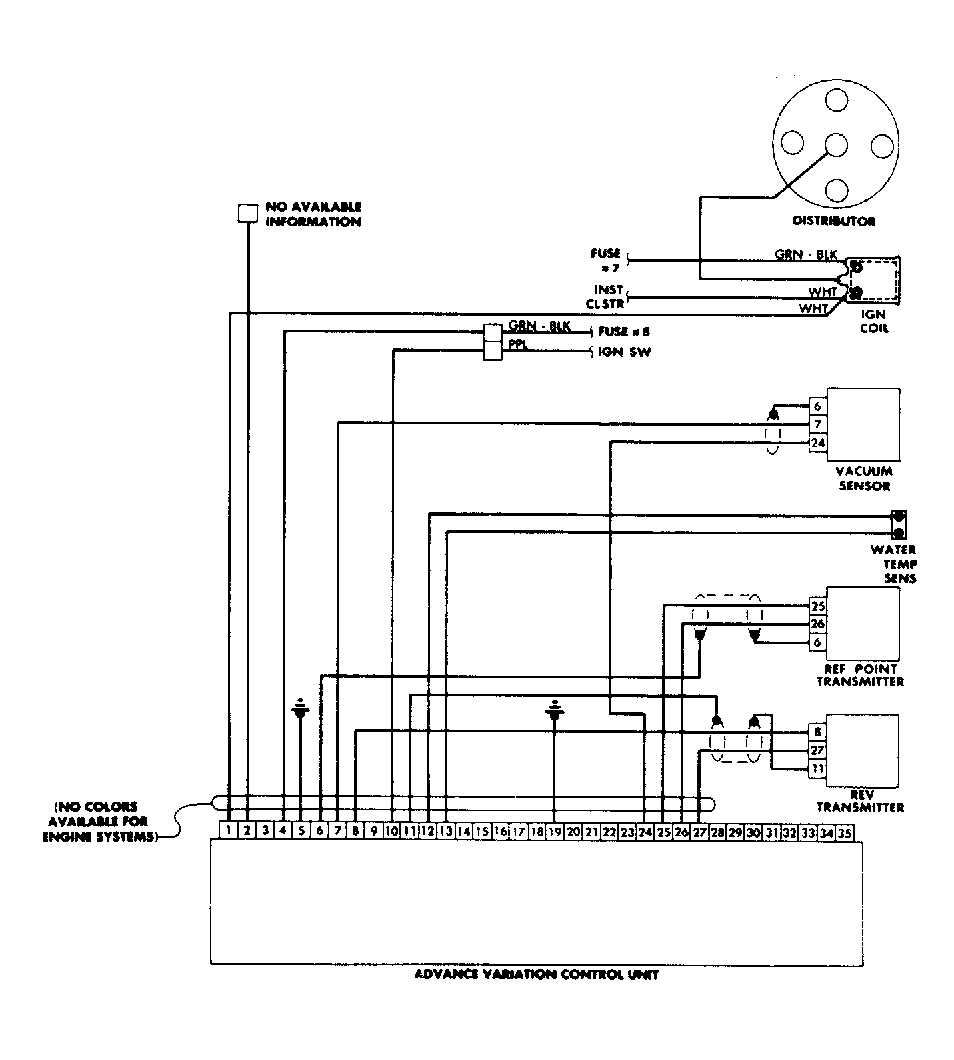

Fig 1: Wiring Diagram

G65207
