Wheel Alignment (Procedures): Pacer: Caster

Adjust caster by turning only the rear pivot bolt eccentric. When caster angle is set, tighten lock nut to 110 ft. lbs.

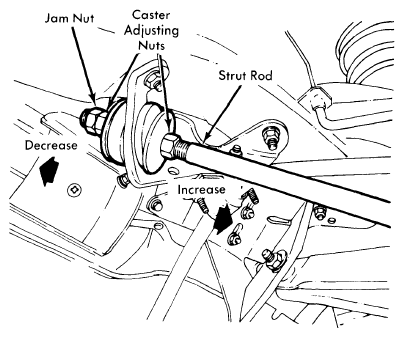

Fig 1: Caster Adjustment (Except Pacer)

Courtesy of AMERICAN MOTORS/RENAULT CORP.
