Position Sensor Check

  1. Disconnect 3-pin connector from computer. See Fig 1. Turn ignition switch off. Attach ohmmeter leads to terminals "B" and "C" of 3-pin harness connector.
  2. Resistance should read 100-200 ohms. If so, proceed to next check. If not, replace magnetic position sensor.

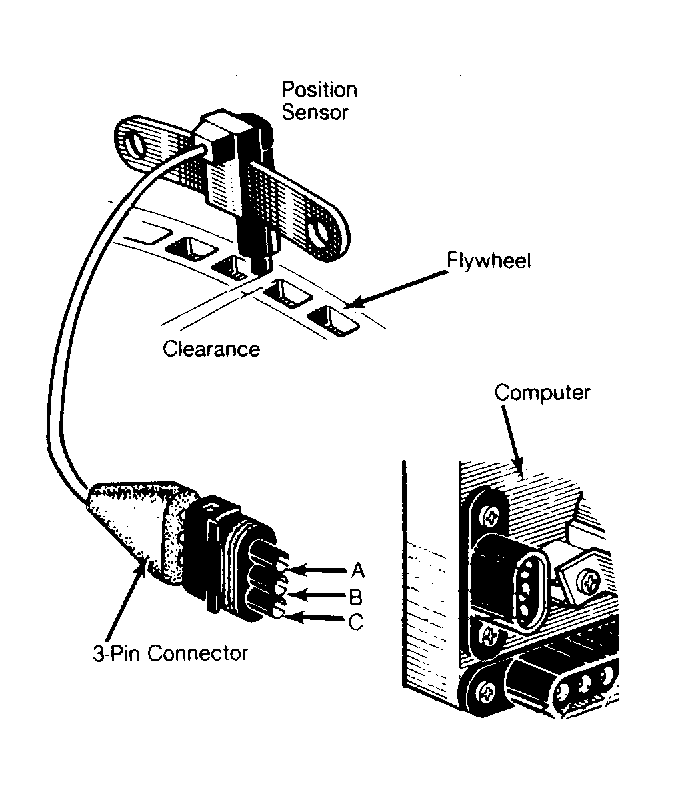

Fig 1: Connector Terminals for Magnetic Position Sensor Use this illustration for position sensor, sensor insulation, and position sensor clearance checks.
G718
