Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| A/C Control Module | In center console on plenum casing. |
| Automatic Transaxle Computer | On inner face of left strut tower. |
| Chime Module | Behind left side of dash. |
| Cruise Control Regulator | In lower panel housing of steering column. |

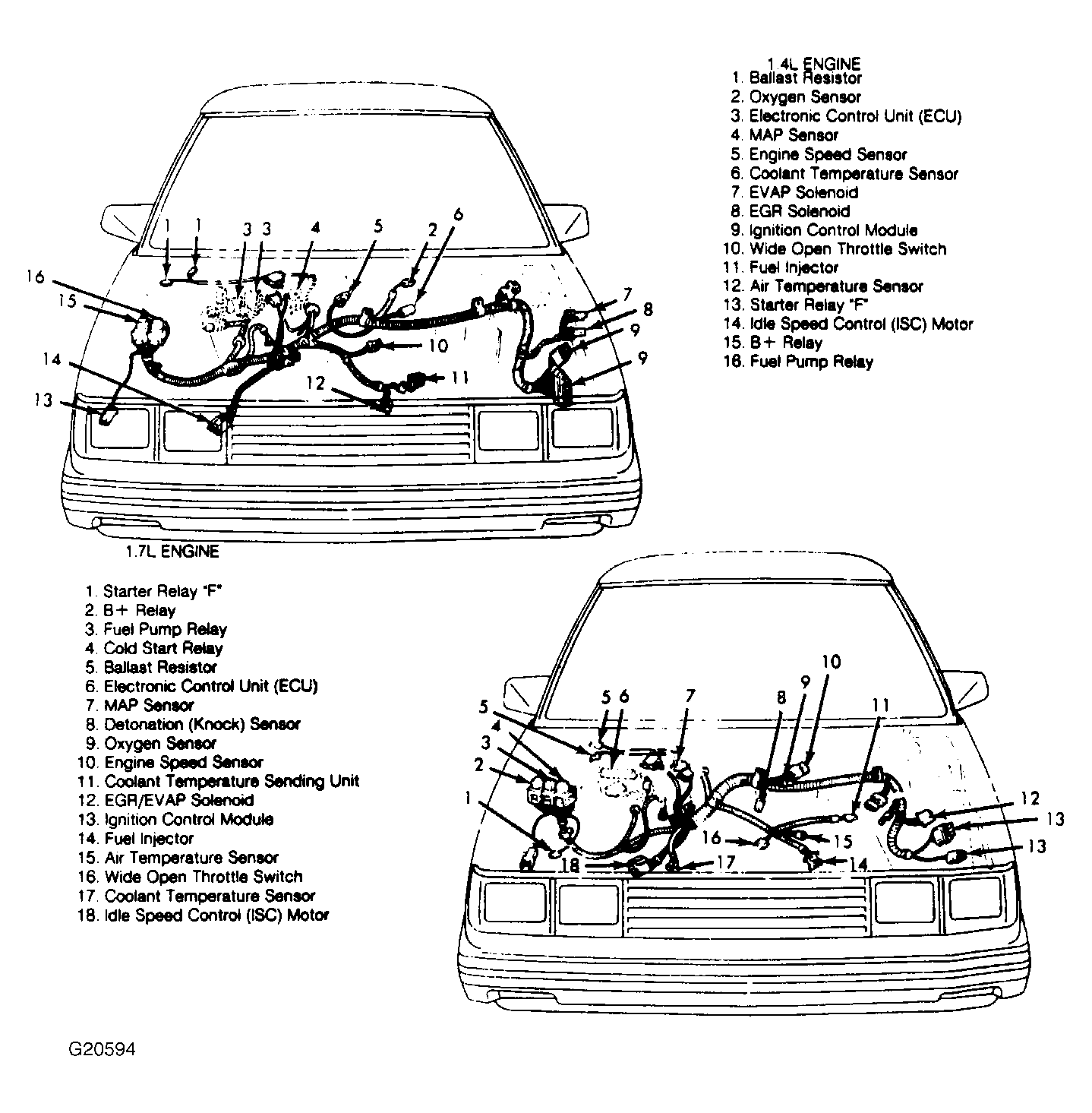

| Electronic Control Unit (ECU) | Under glove box. See Figure. |
| Ignition Control Module | On front side of left strut tower. See Figure. |
| Keyless Entry Module | Between sun visors. |
| Signal Lt. Control Module (Encore) | Behind left side of dash. |
| System Sentry Module | Under left side of dash. |
