Home >> American Motors >> 1985 >> Encore Base >> Repair and Diagnosis >> Engine Performance >> Ignition System >> Ignition System - 1.4L >> Testing >> Computer Check

Computer Check

  1. Be sure all connectors are attached to computer. Disconnect harness connectors from coil primary terminals. Install 12-volt test lamp between 2 connectors just removed. See Fig 1.
  2. Crank engine. At cranking speed, lamp should flicker. If so, proceed to next check. If not, replace computer.

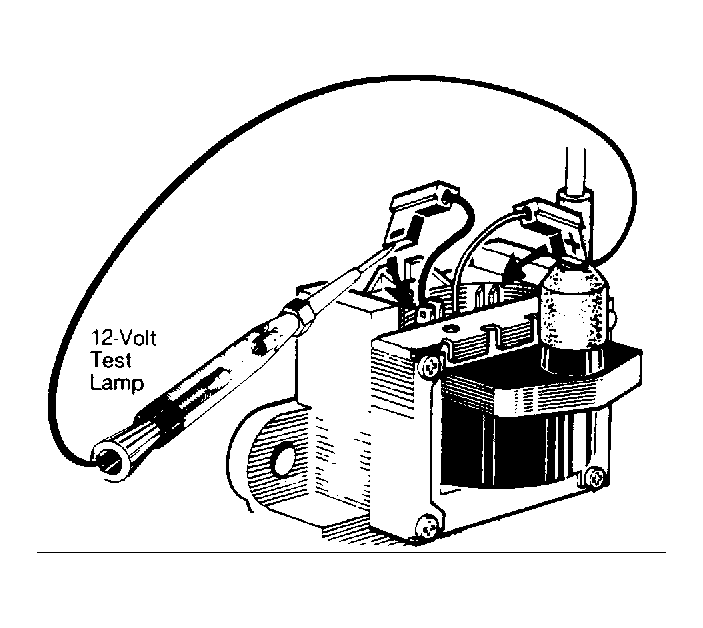

Fig 1: Test Lamp Hookup for Checking Computer Attach 12-volt lamp to disconnected coil primary leads.
G719
