Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

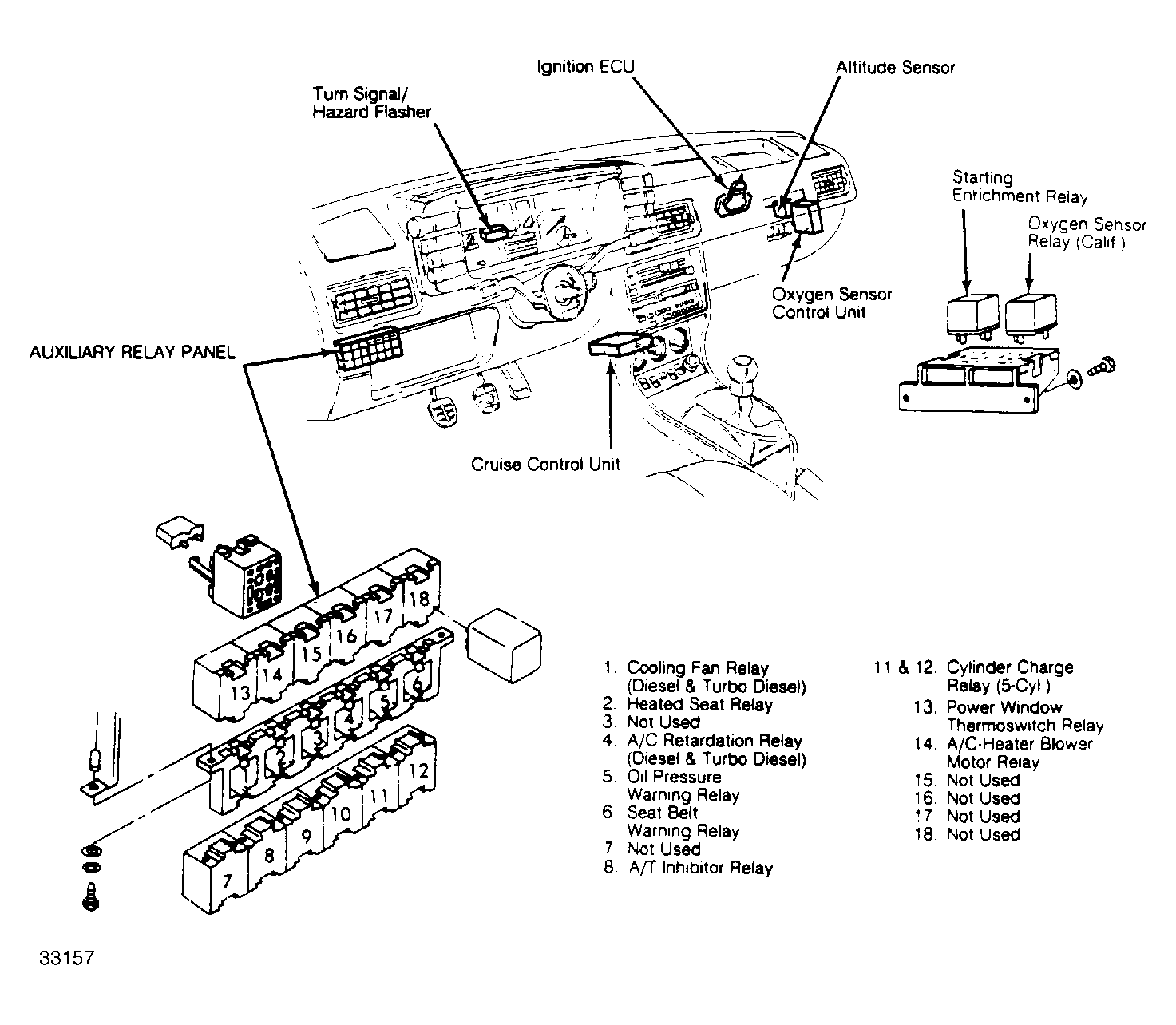

| Cruise Control Unit | Under lower console on transmission tunnel. See Figure. |
| Dynamic Oil Pressure Control Unit | On back of instrument cluster. |
| Idle Stabilizer Control Unit (Calif.) | Left rear side of engine compartment. |
| Idle Stabilizer Control Unit (Federal) | Under right side of instrument panel, next to ignition control unit. |
| Ignition ECU | Under instrument panel, right right side of glove compartment. See Figure. |
| Oxygen Sensor Control Unit | Under instrument panel, right side of glove compartment. See Figure. |

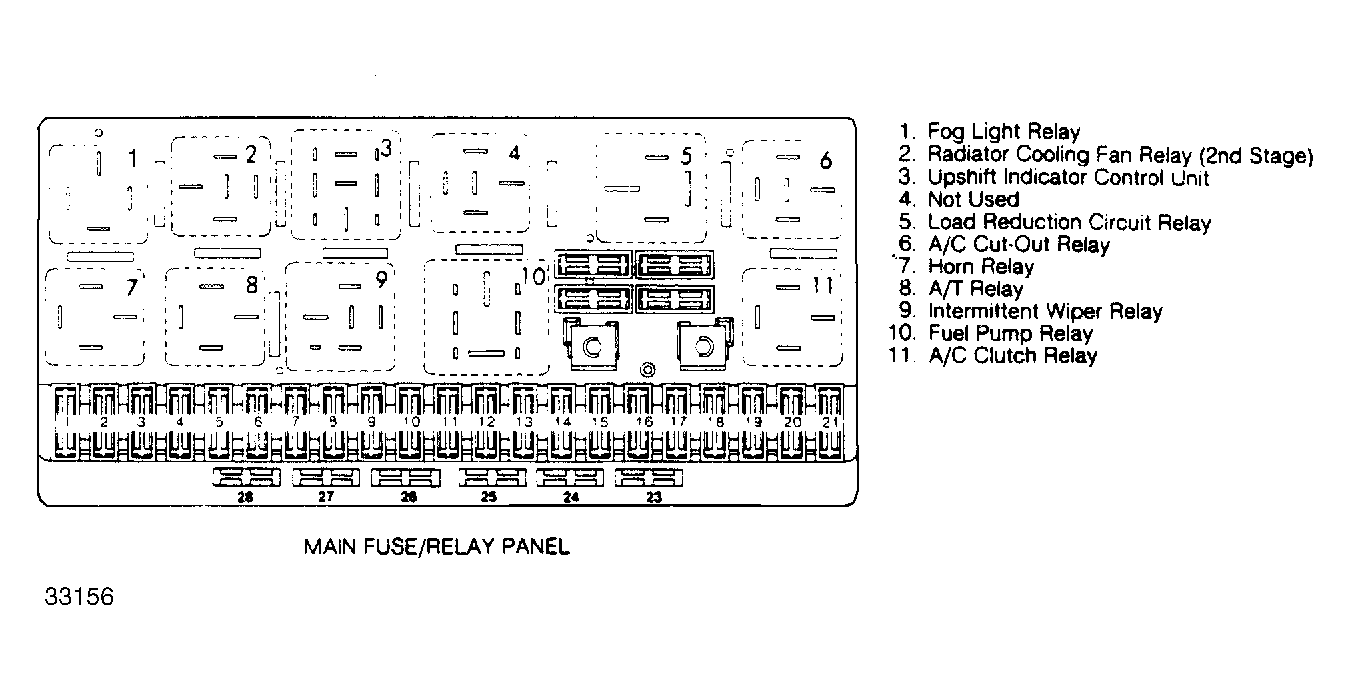

| Upshift Indicator Control Unit | Position 3 on main fuse/relay panel. See Figure. |
