Alignment Procedures

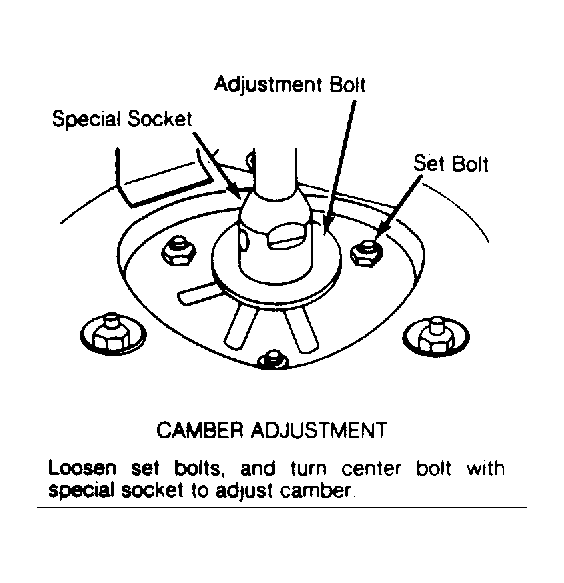

Fig 1: Camber Adjustment. Loosen set bolts, and turn center bolt with special socket to adjust camber.
G52252

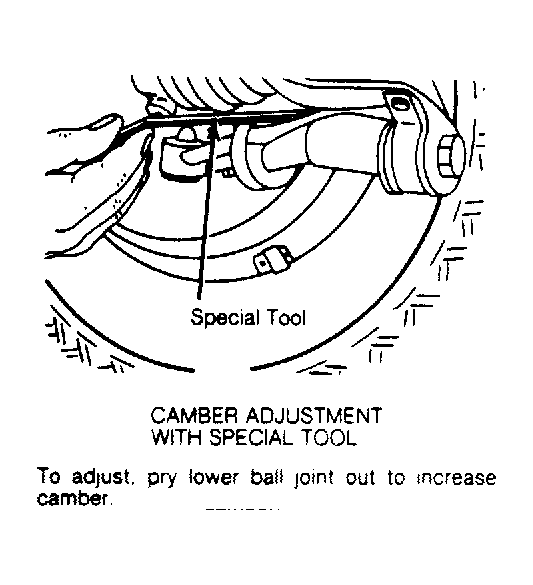

Fig 2: Camber adjustment with special tool. To adjust, pry lower ball joint out to increase camber.
G52240
