Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

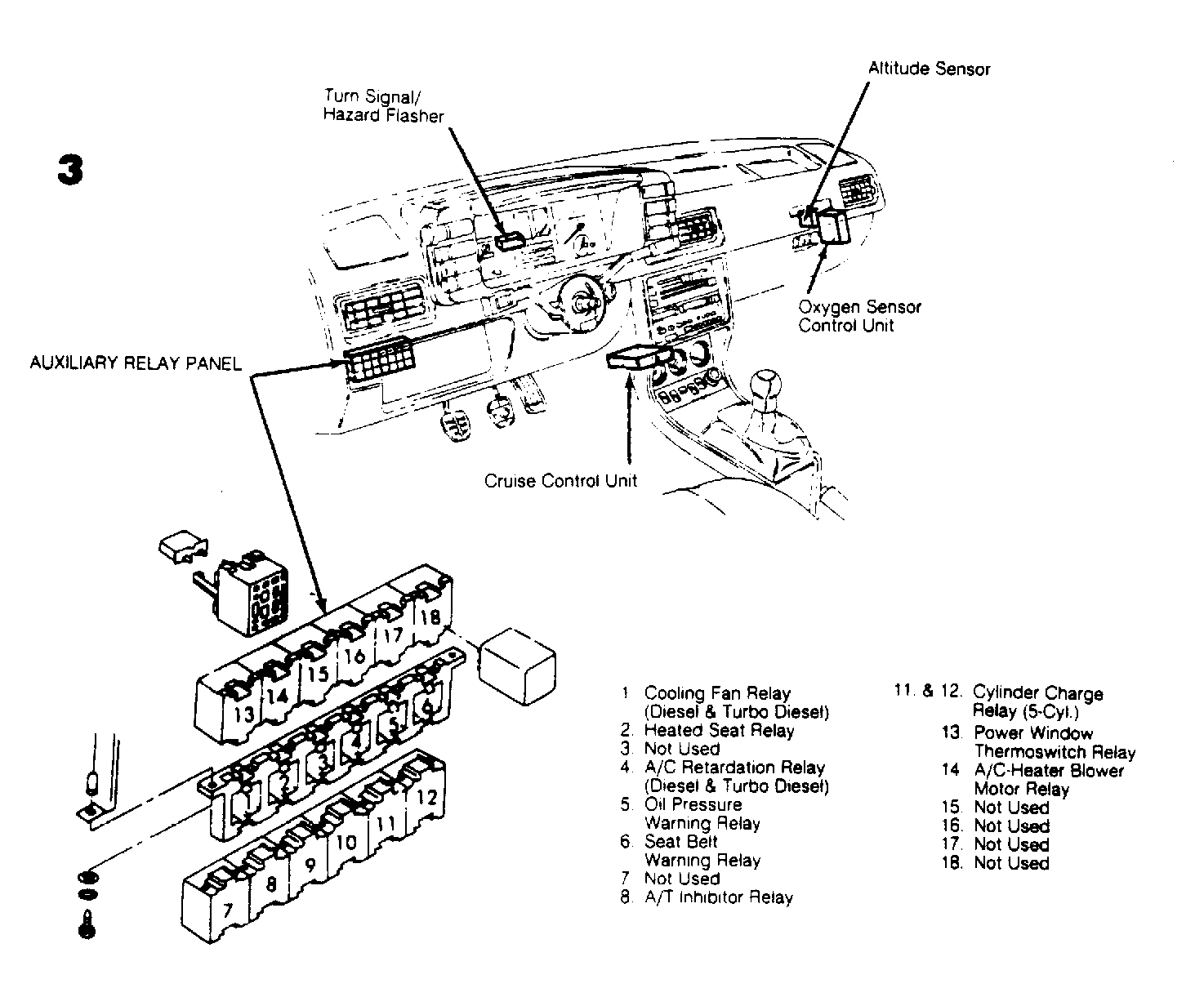

| Cruise Control Unit | Under center console, on transmission tunnel. See Figure . |
| Differential Pressure Regulator | On fuel distributor head. |
| Dynamic Oil Pressure Control Unit | On back of instrument cluster. |
| Ignition Control Unit | On left kick panel. |
| Ignition Electronic Control Unit (ECU) | Under dash, to right of glove compartment. |
| Knock Sensor Control Unit | Behind center console. |
| Oxygen Sensor Control Unit | Under dash, to right of glove compartment. See Figure . |
| Transistorized Coil Control Unit | In glove compartment. |
