Control Units
CONTROL UNITS LOCATION
| Component | Location | |
|---|---|---|
| ABS Control Unit | Under left side of rear seat. | |

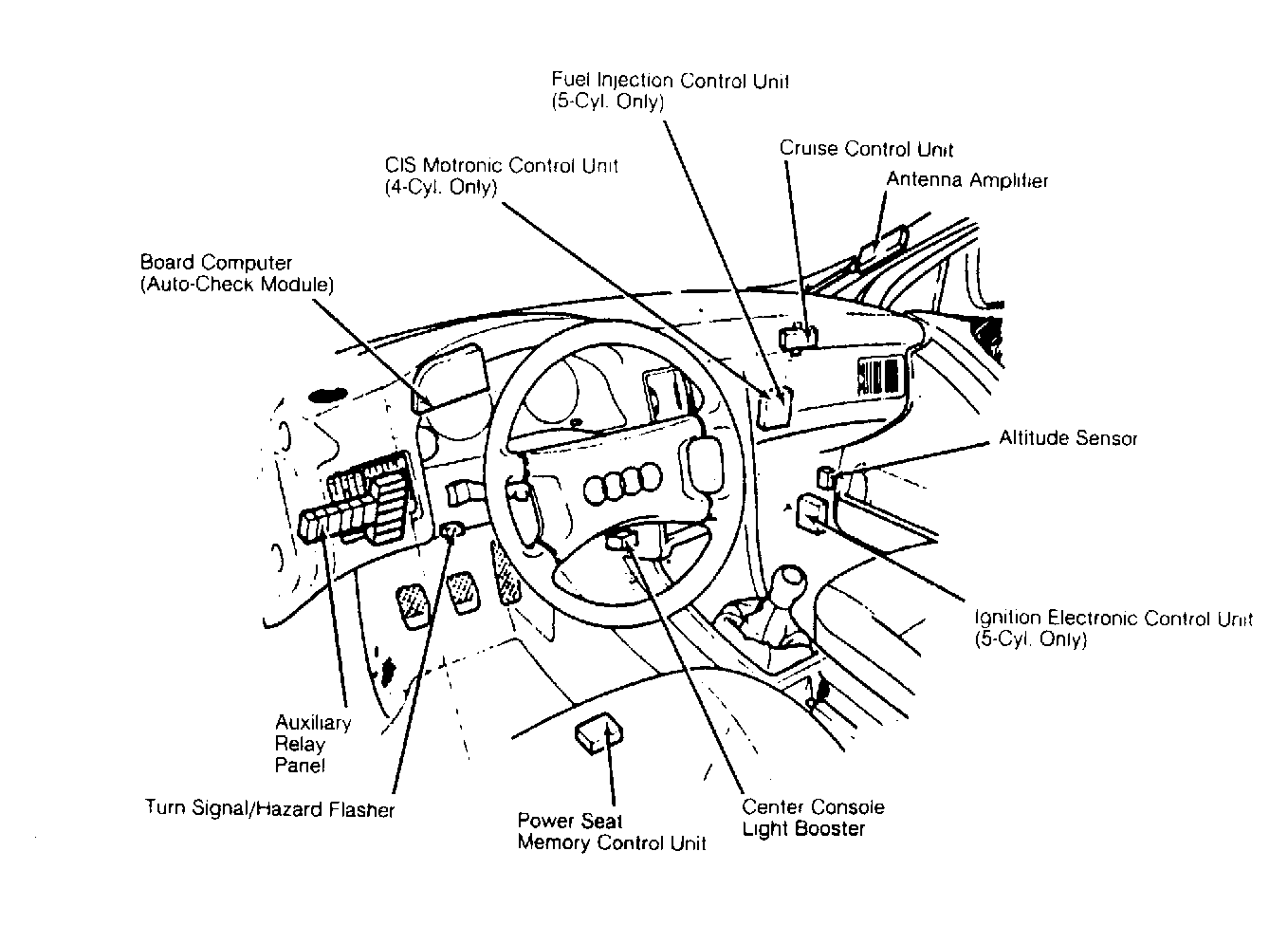

| Board Computer Auto-Check Module | On back of instrument cluster. See Figure . | |
| CIS Motronic Control Unit (4-Cyl.) | Behind right side of dash, above glove box. See Figure . | |
| Cruise Control Unit | Behind right side of dash, above glove box. See Figure . | |
| Differential Lock Control Unit | Under right side of rear seat. | |

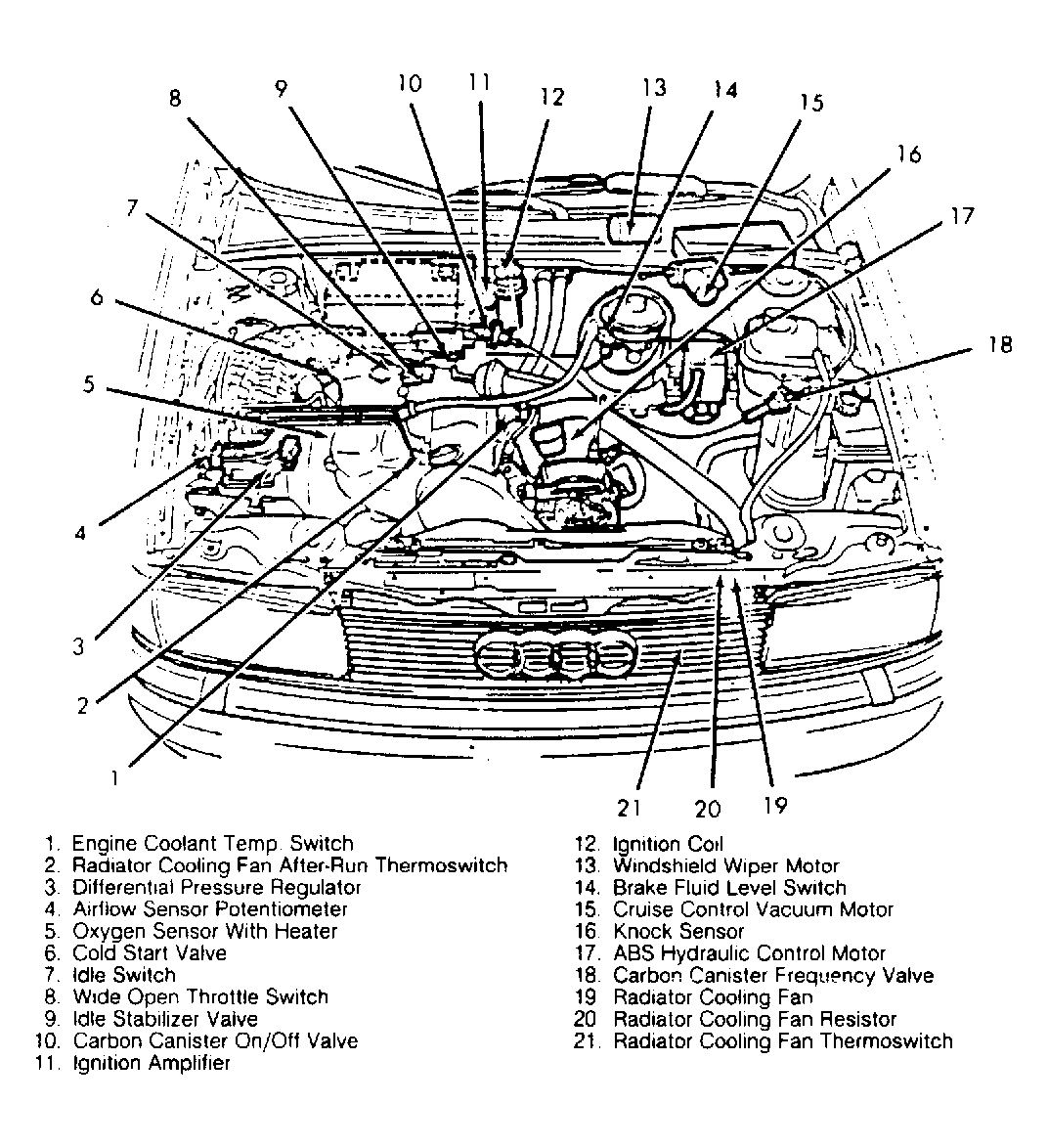

| Differential Pressure Regulator | On fuel distributor head. See Figure . | |
| Fuel Injection Control Unit (5-Cyl.) | Behind right side of dash, above glove box. See Figure . | |
| Ignition Electronic Control Unit (5-Cyl.) | Behind right kick panel. See Figure . | |
| Memory Seat Control Unit | Under driver's seat. See Figure . | |
| Rear Lamp Control Units | ||
| Input Control (White Connector) | On left side of trunk, behind access panel. | |
| Output Control (Black Connector) | On left side of trunk, behind access panel. | |
