Component Locations

COMPONENT LOCATIONS

Component	Location
Control Unit	Behind Door Trim Panel, Driver's Door, See Fig 1
Operating Switches (Driver's Door)	On Door Trim Panel, See Fig 1
Operating Switches (All Others)	On Door Trim Panel, See Fig 2
Relay Panel	Behind Trim Panel, In Passenger Footwell
Thermofuse	Bottom Of Relay Panel, See Fig 3
Window Regulator Motor & Drive Cable Assembly (Front)	Behind Door Trim Panel, Mounted To Inner Door Trim Panel, See Fig 1
Window RegulatorMotor & Drive Cable Assembly (Rear)	Behind Door Trim Panel, Mounted To Inner Door Trim Panel, See Fig 2

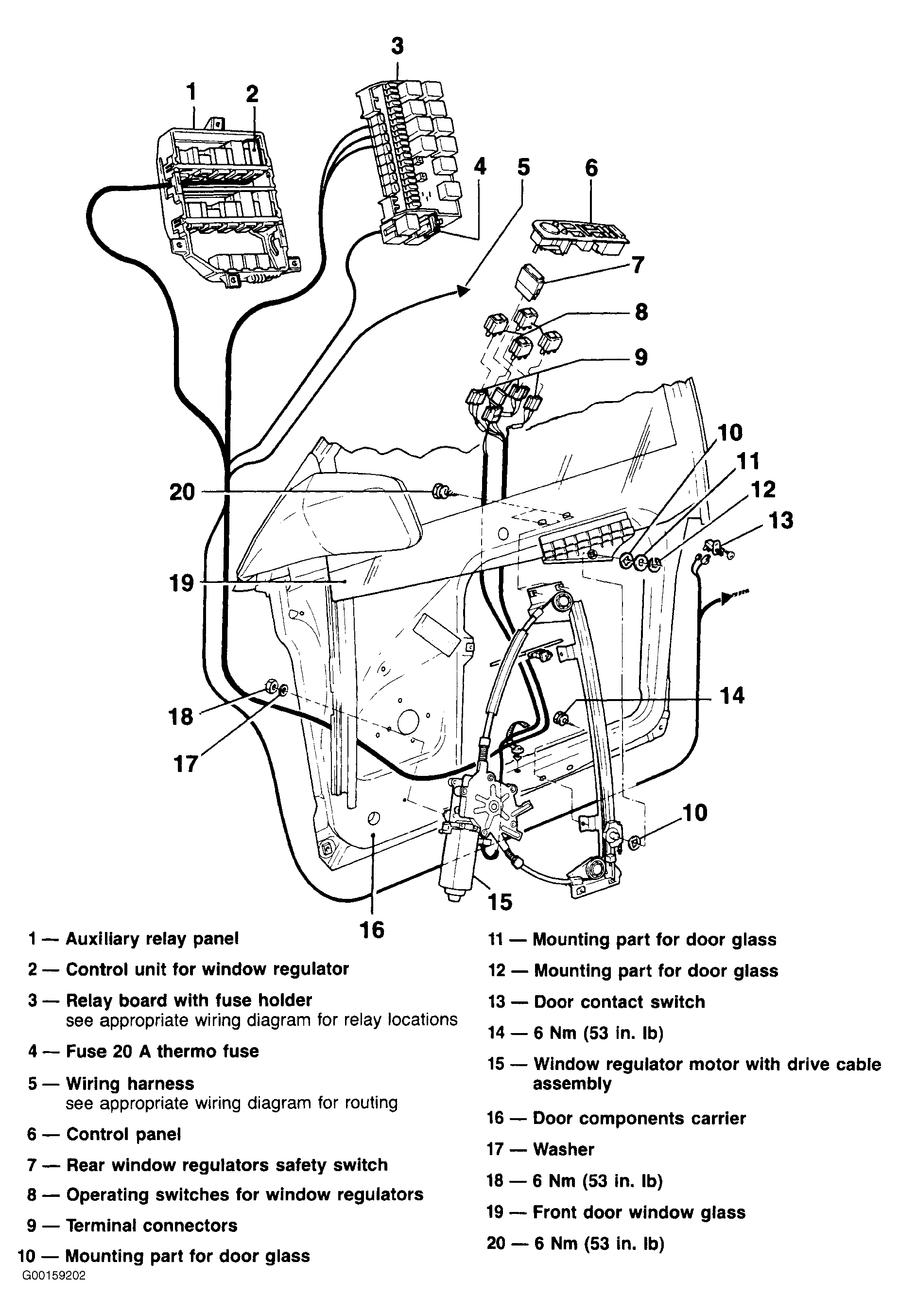

Fig 1: Locating Power Window Components (Driver's Door)

Courtesy of AUDI OF AMERICA, INC.

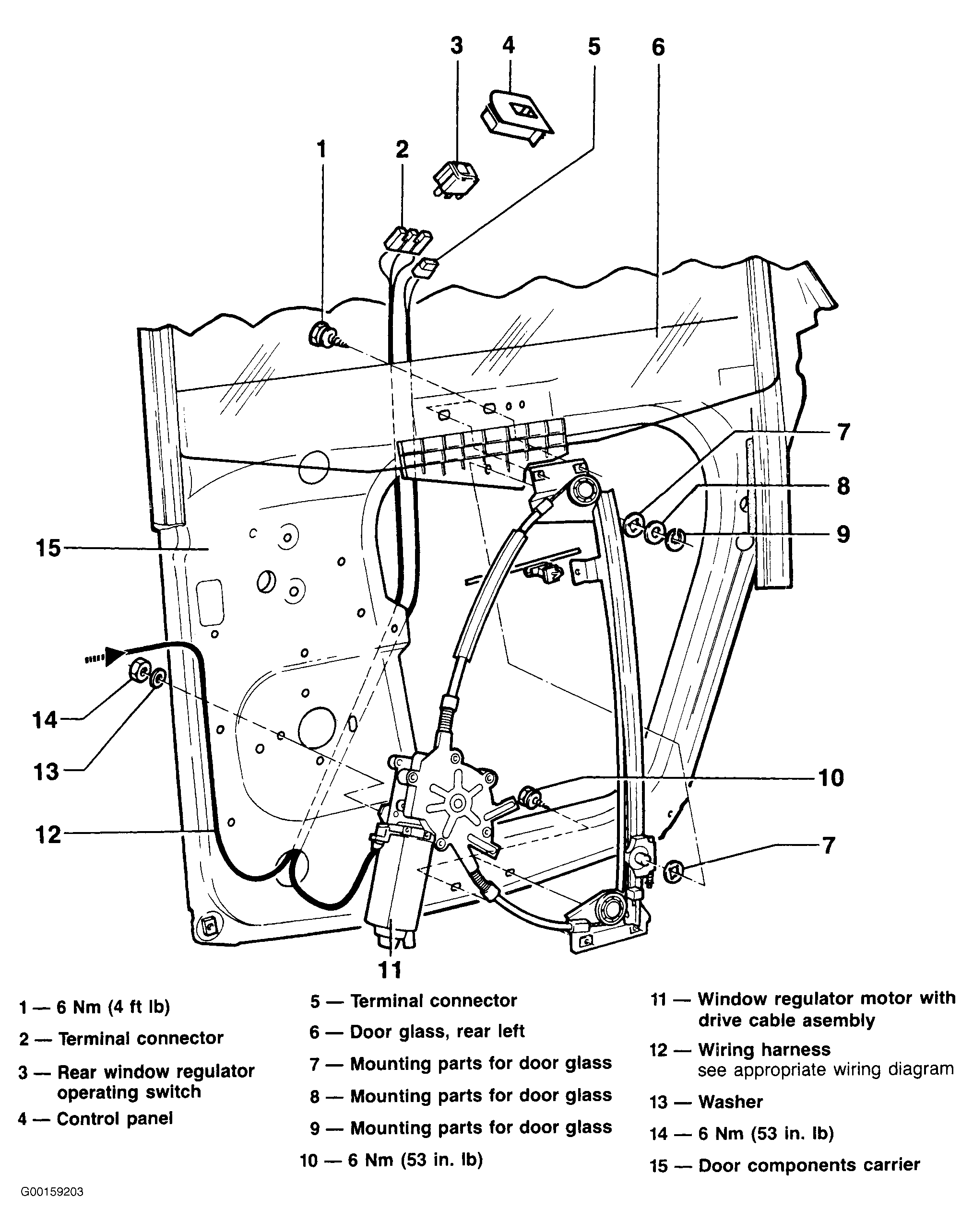

Fig 2: Locating Power Window Components (Rear Doors)

Courtesy of AUDI OF AMERICA, INC.

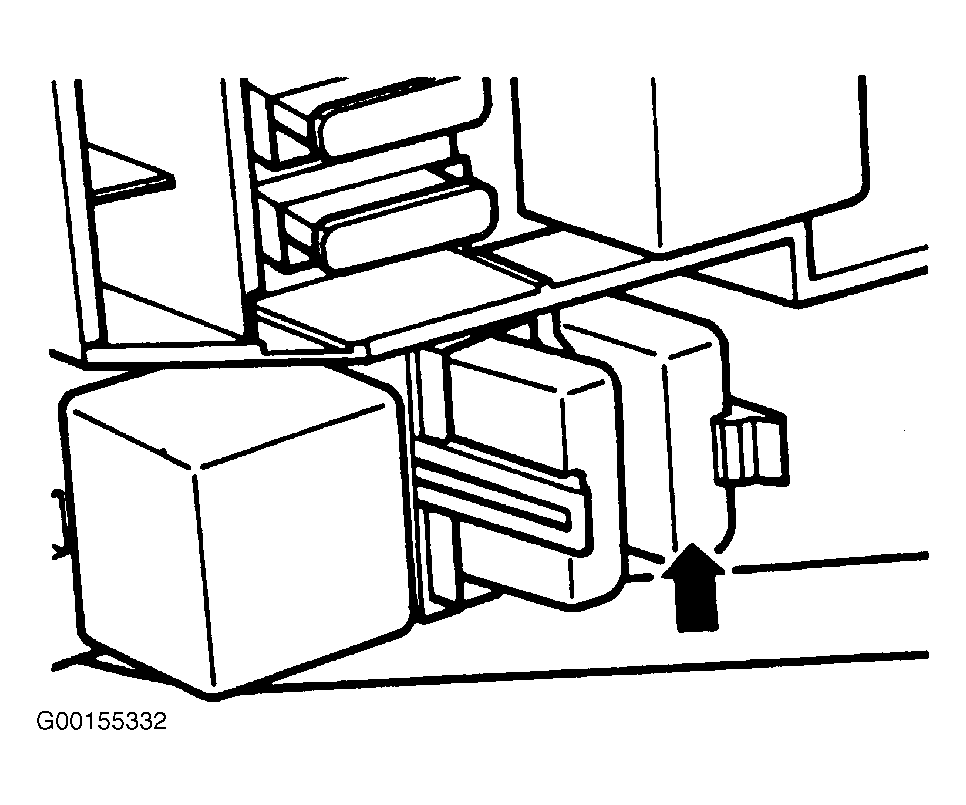

Fig 3: Locating Thermofuse For Window Regulator

Courtesy of AUDI OF AMERICA, INC.
