Continuity Test

  1. Connect ohmmeter to terminals 5 and 2, then to terminals 3 and 1. See Fig 1 . Check for continuity.
  2. Connect ohmmeter to terminals 4 and 2. Check for continuity.
  3. Activate switch (lower window). Check for continuity
  4. Connect ohmmeter to terminals 4 and 1. Check for continuity.
  5. Activate switch (raise window). Check for continuity.
  6. If continuity is not achieved, replace operating switch.

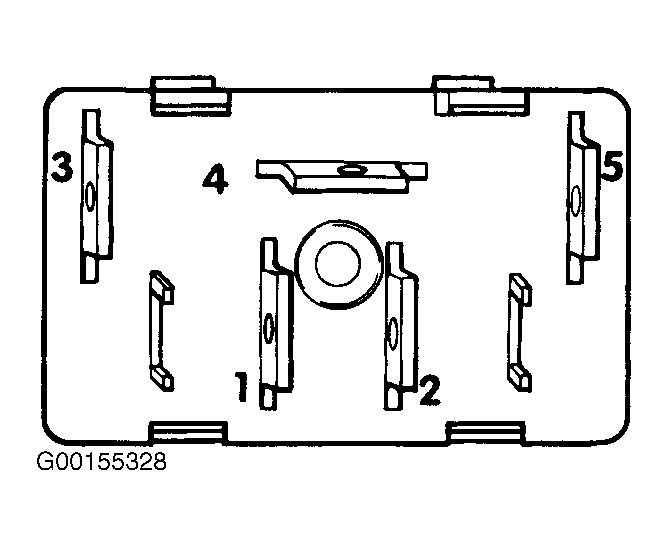

Fig 1: Testing Continuity Of Window Regulator Operating Switch
G00155328Courtesy of AUDI OF AMERICA, INC.
