Continuity Test

  1. Connect ohmmeter to terminals 1 and 2, then terminals 3 and 4 (button not depressed). See Fig 1 . Check continuity.
  2. Press button in. Check for no continuity.
  3. If specified values are not achieved, replace switch.

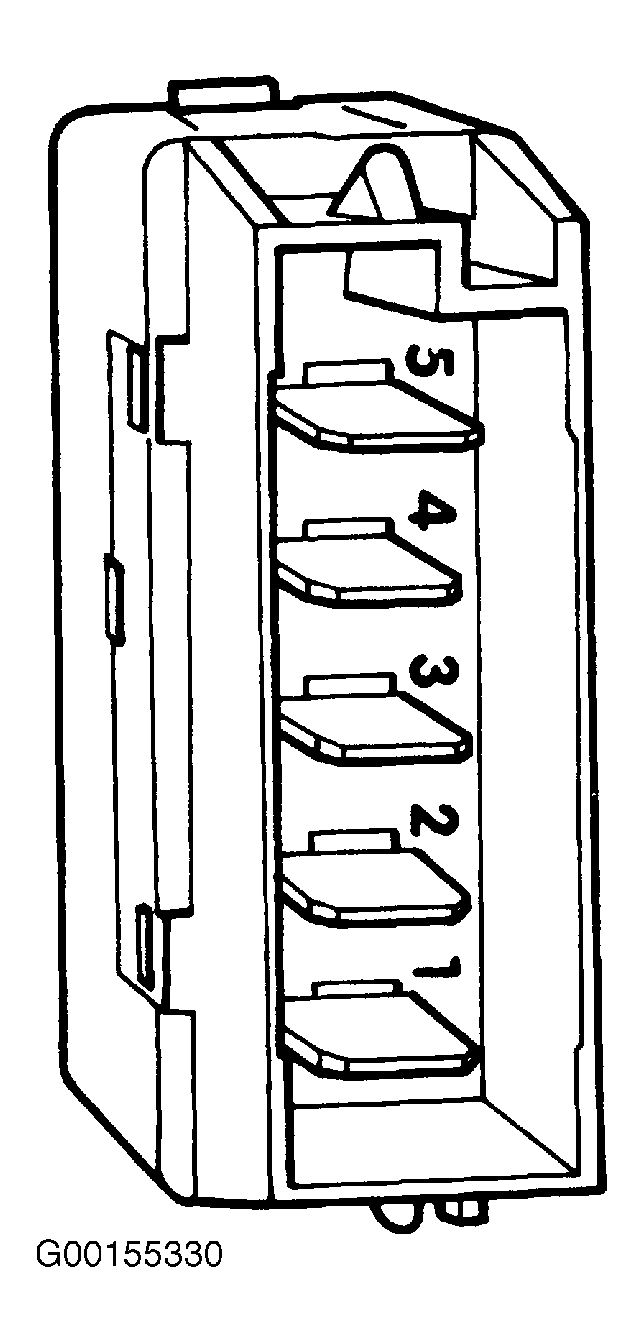

Fig 1: Testing Window Regulator Safety Switch
G00155330Courtesy of AUDI OF AMERICA, INC.
