Component Locations

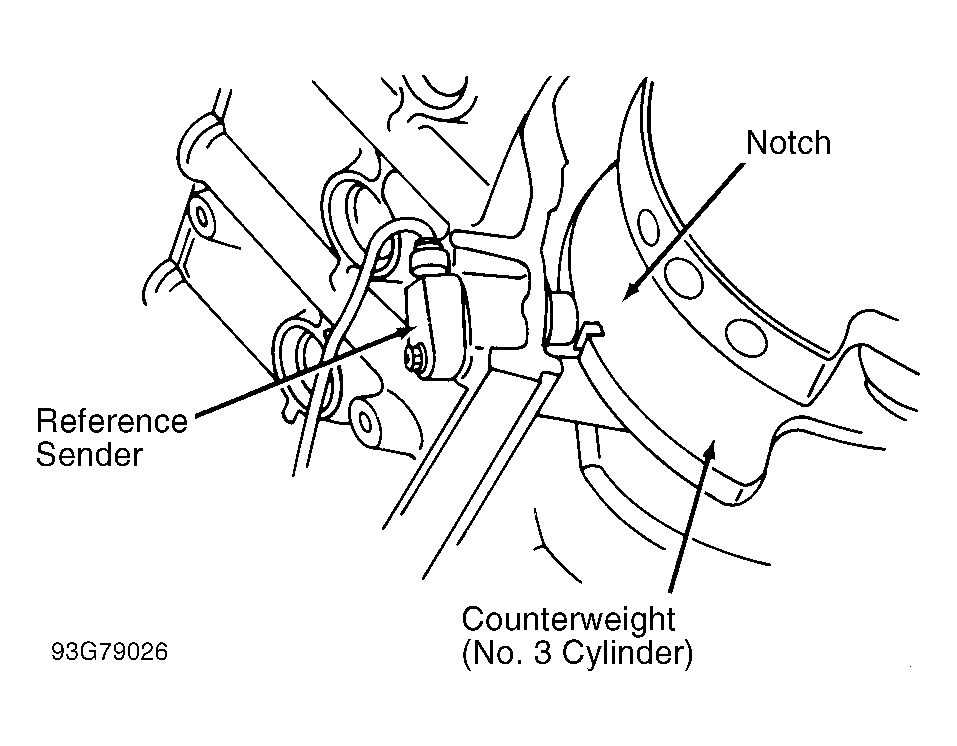

Fig 1: Locating Crankshaft Reference Sender
G93G79026Courtesy of AUDI OF AMERICA, INC.

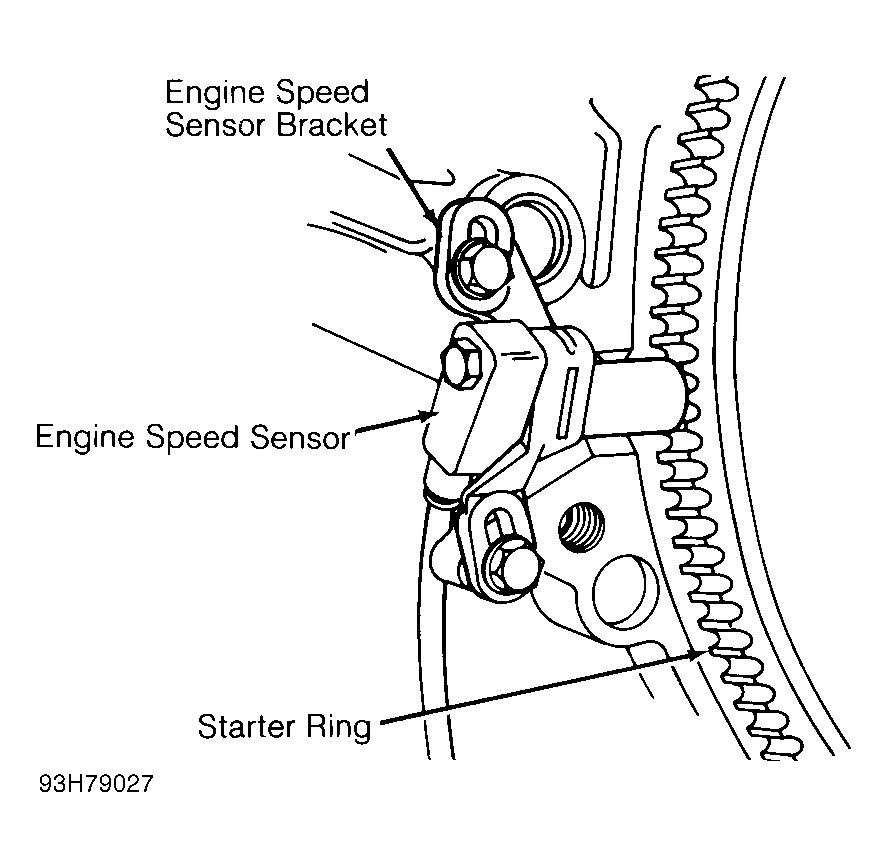

Fig 2: Locating Engine Speed Sensor
G93H79027Courtesy of AUDI OF AMERICA, INC.

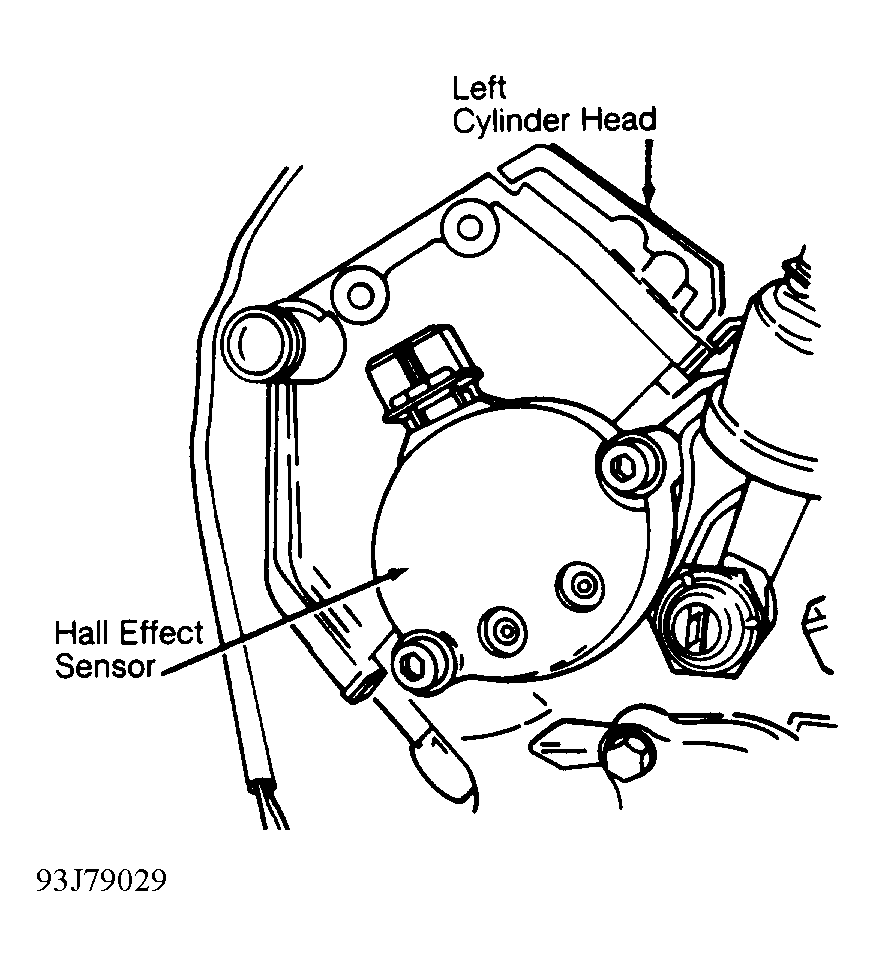

Fig 3: Locating Hall Effect Sensor
G93J79029Courtesy of AUDI OF AMERICA, INC.

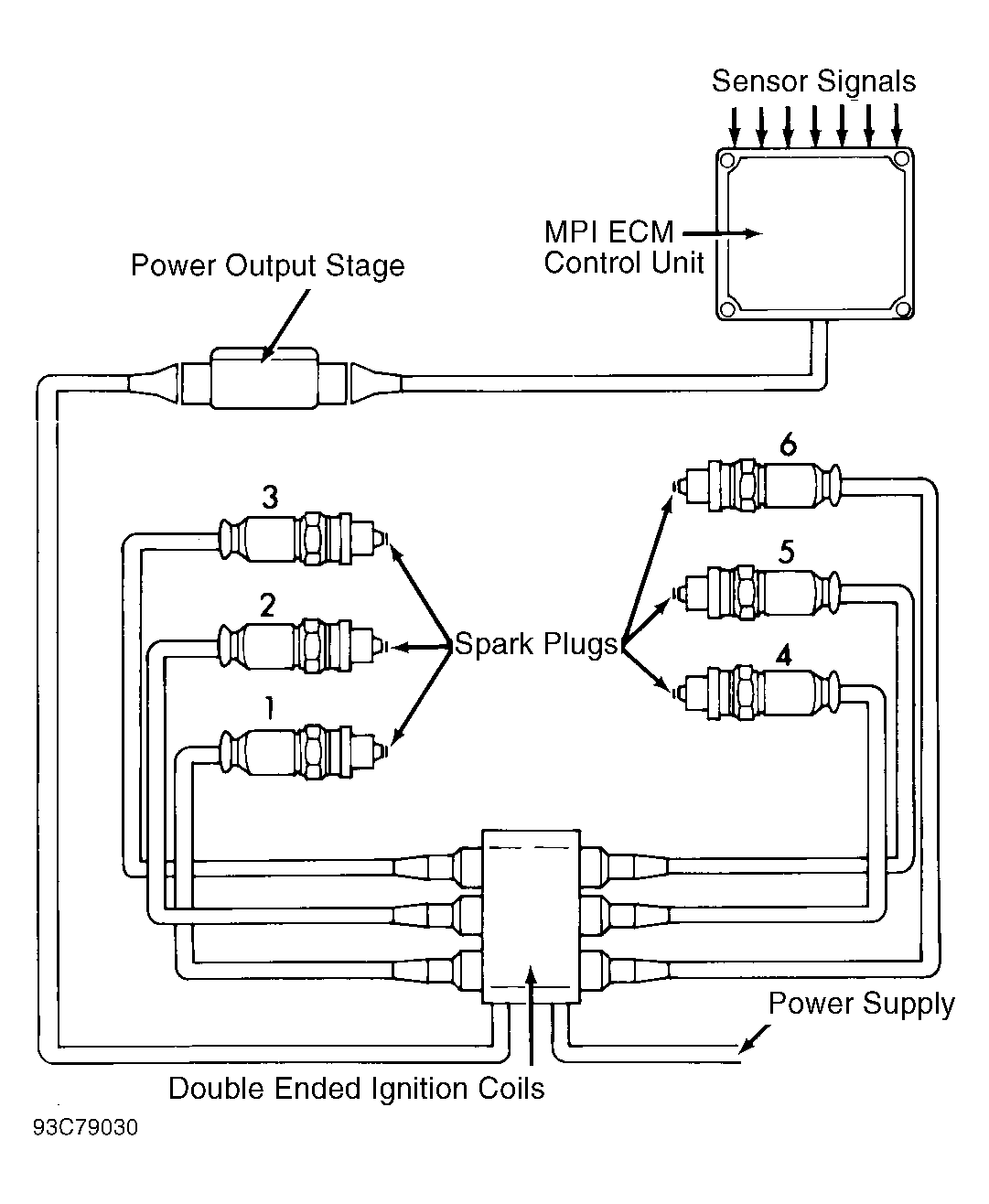

Fig 4: Controlling Ignition Timing
G93C79030Courtesy of AUDI OF AMERICA, INC.
