Home >> Audi >> 1994 >> 100 CS, 2.8 K >> Repair and Diagnosis >> Electrical >> Component Locations >> Electrical Component Locator >> Component Location Graphics

Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

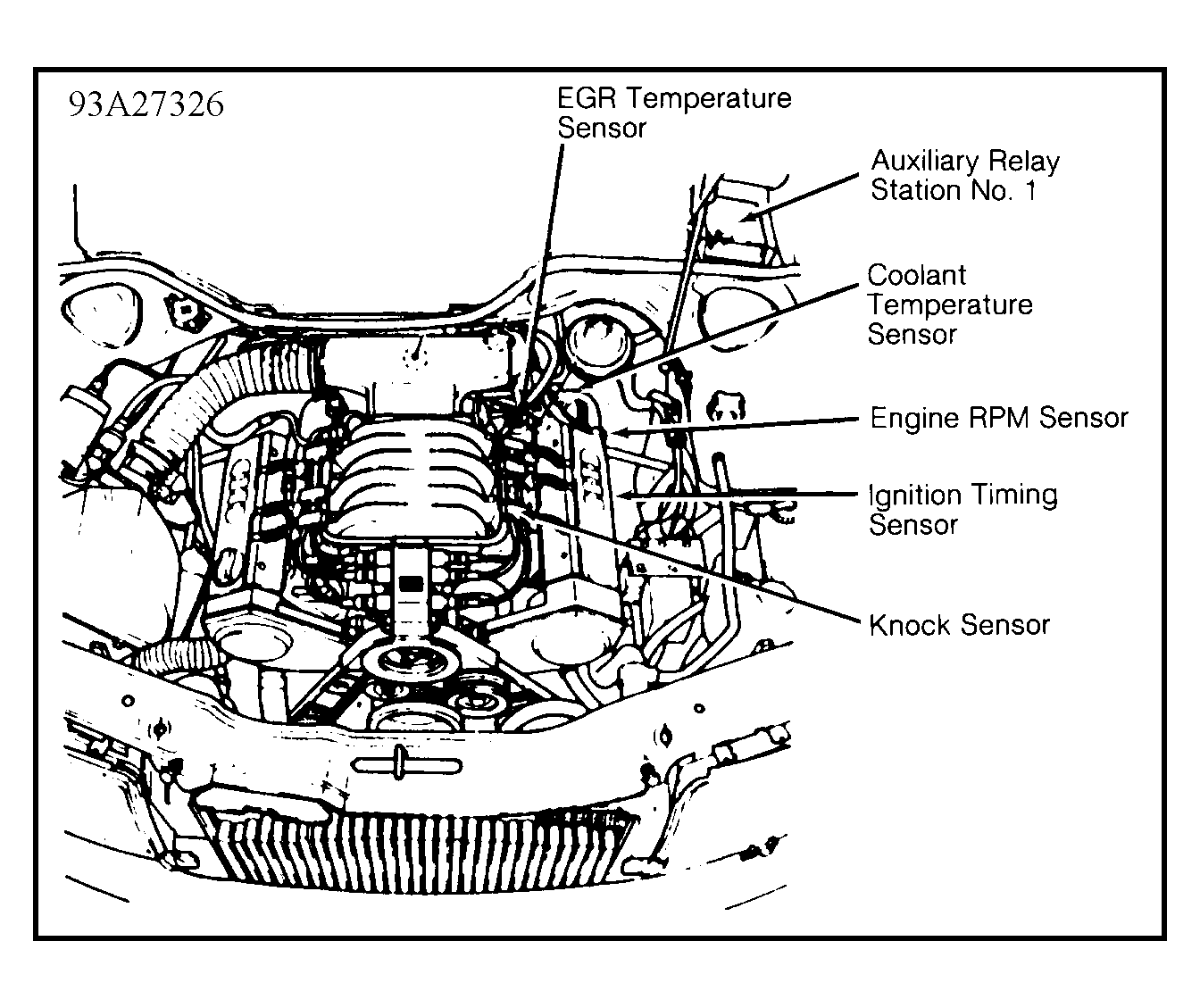

Fig 1: Component Locations (1 Of 2)
G93A27326
Fig 2: Component Locations (2 Of 2)
G93B27327
