Home >> Audi >> 1994 >> 90 CS Quattro >> Repair and Diagnosis >> Engine Performance >> Engine Controls - Specifications >> Ignition System >> Firing Order

Firing Order

NOTE: See illustration for firing order. See Fig 1 .

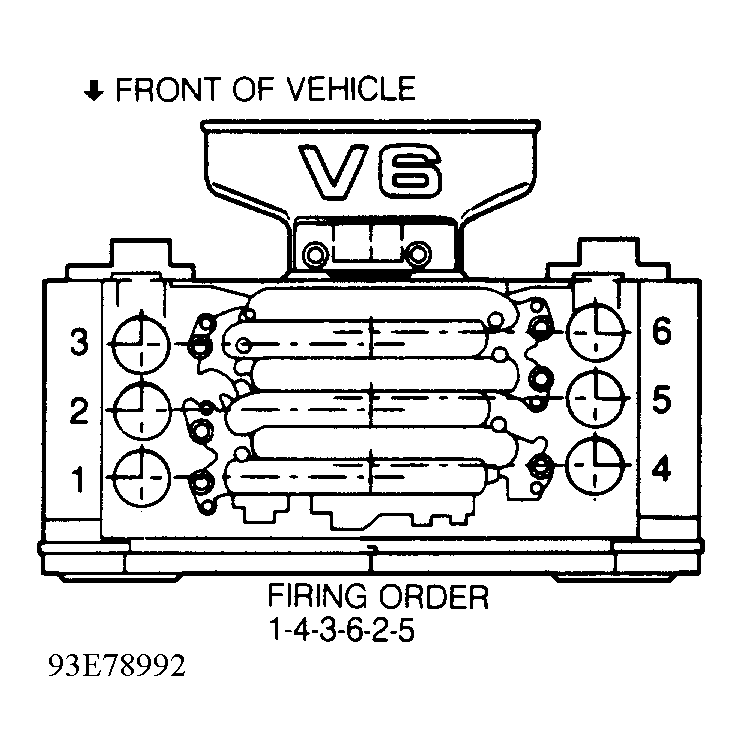

Fig 1: 2.8L V6 Firing Order

G93E78992

Courtesy of AUDI OF AMERICA, INC.
