Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

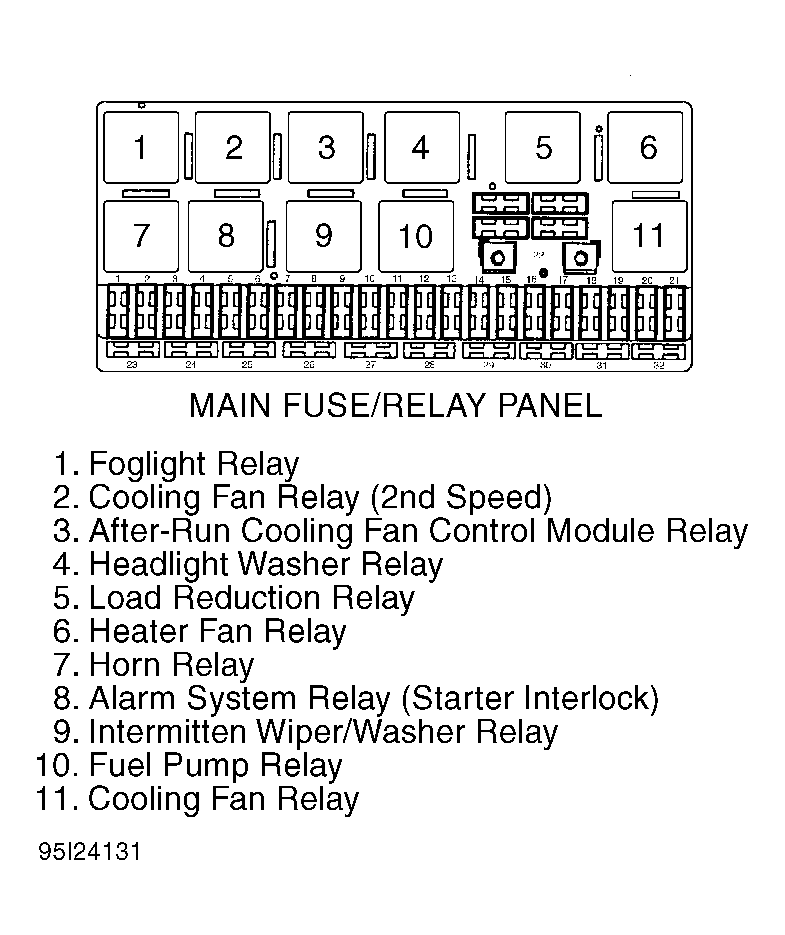

Fig 1: Component Locations (1 Of 3)
G95I24131

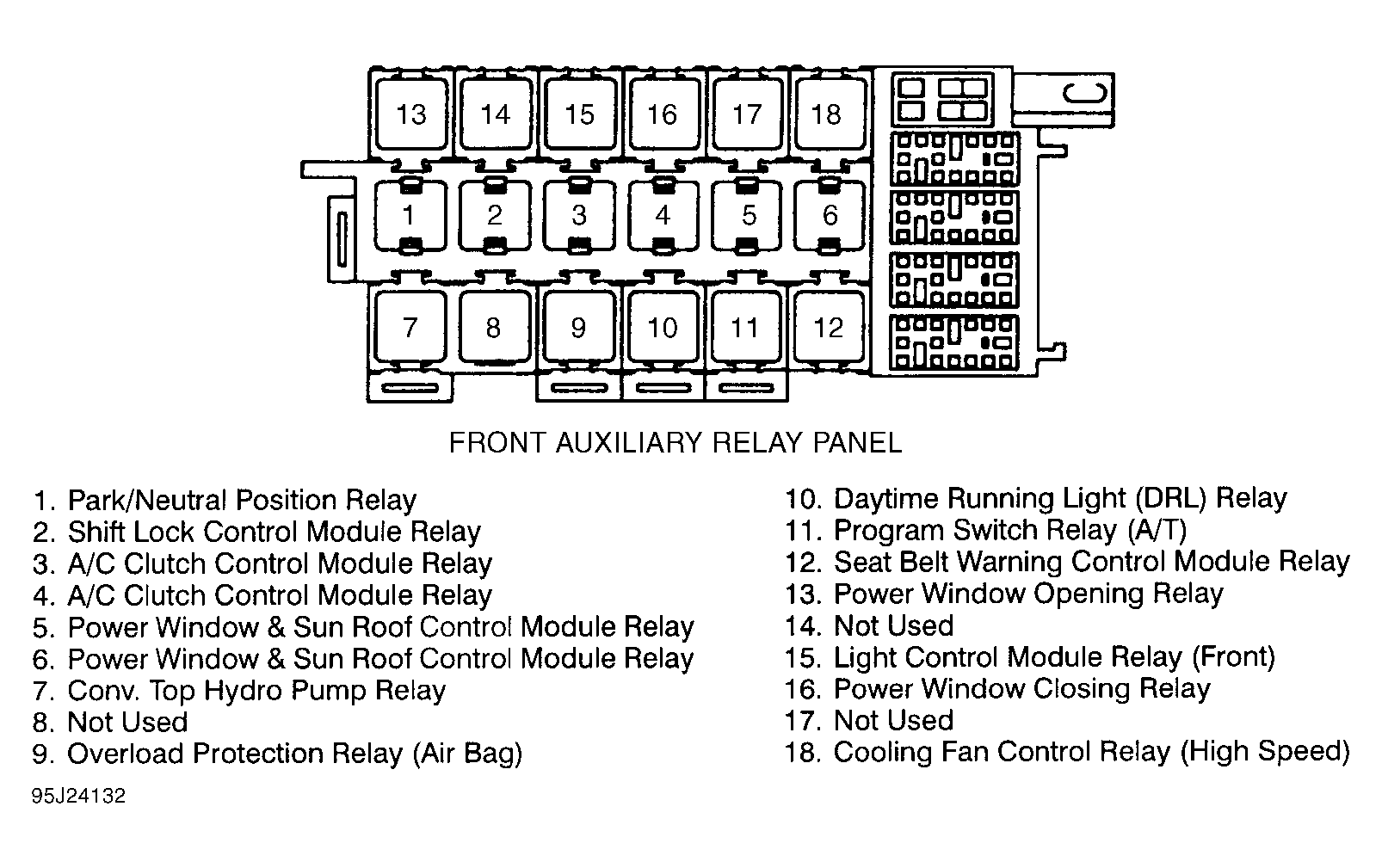

Fig 2: Component Locations (2 Of 3)
G95J24132
Fig 3: Component Locations (3 Of 3)
G95A24133
