Rpm Sensor Bracket

Remove Crankshaft Position sensor (CKP). Position crankshaft at TDC for No. 3 cylinder. See Fig 1 . Screw Crankshaft Positioner (V.A.G. 3242) into sensor hole. Notch in No. 3 cylinder counterweight can be seen or felt through sensor hole in block. See Fig 2 and Fig 3 .
Remove heat shield. Remove Engine Speed (RPM) sensor and loosen RPM sensor bracket.
Insert RPM Sensor Gauge (V.A.G. 3308) until locked into gear tooth. Push bracket within slots to ensure sensor gauge is locked into gear tooth. Retighten bracket and reinstall RPM sensor.

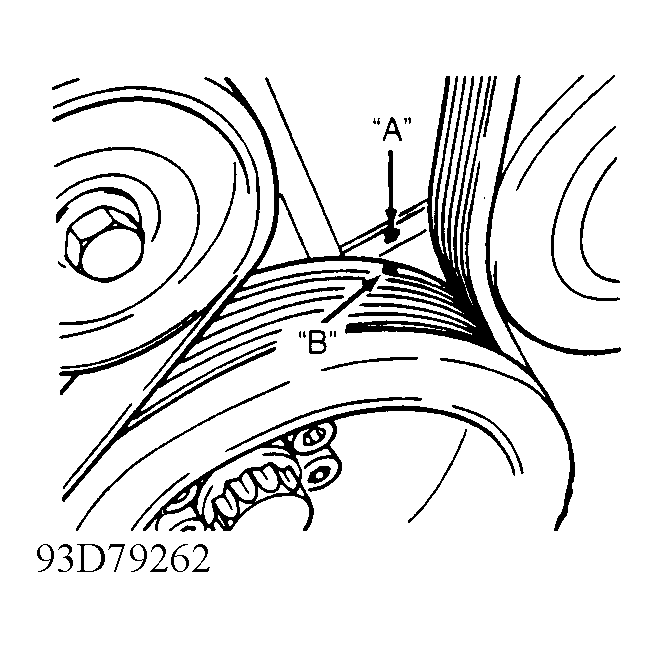

Fig 1: Locating TDC Marks

Courtesy of AUDI OF AMERICA, INC.

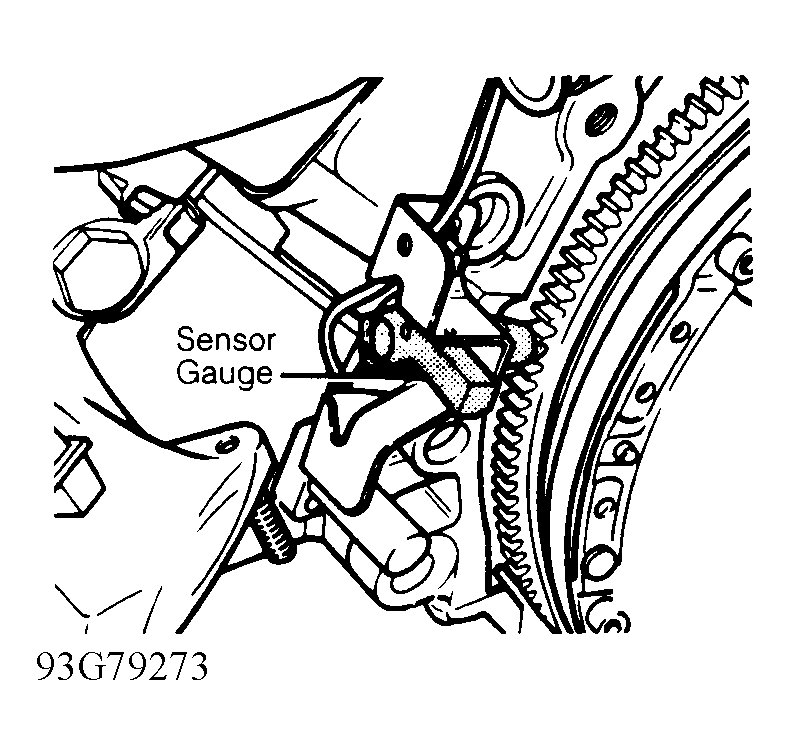

Fig 2: Crankshaft Positioner & RPM Sensor Gauge (1 Of 2)

Courtesy of AUDI OF AMERICA, INC.

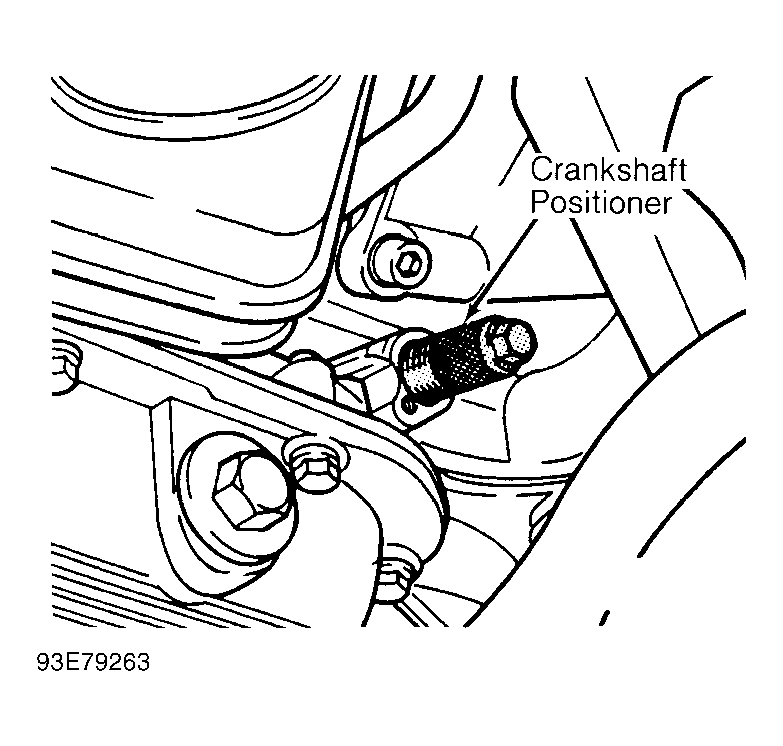

Fig 3: Crankshaft Positioner & RPM Sensor Gauge (2 Of 2)

Courtesy of AUDI OF AMERICA, INC.
