Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

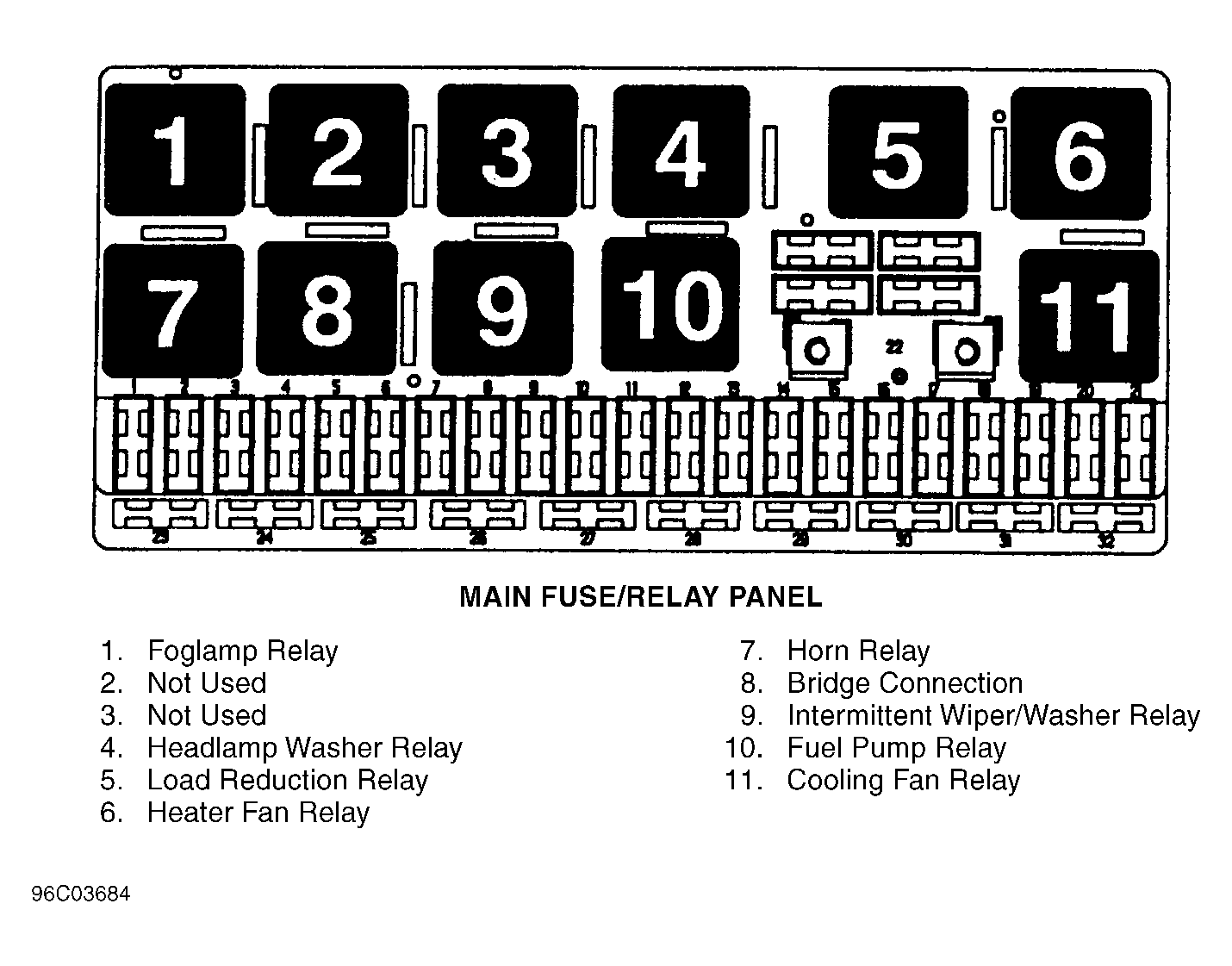

Fig 1: Main Fuse/Relay Panel

Fig 2: Front Auxiliary Relay Panel

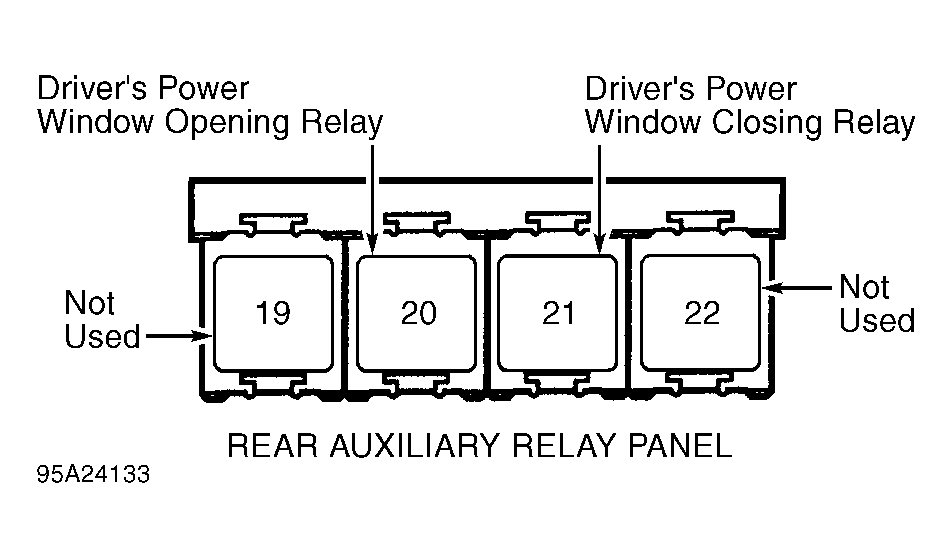

Fig 3: Rear Auxiliary Relay Panel

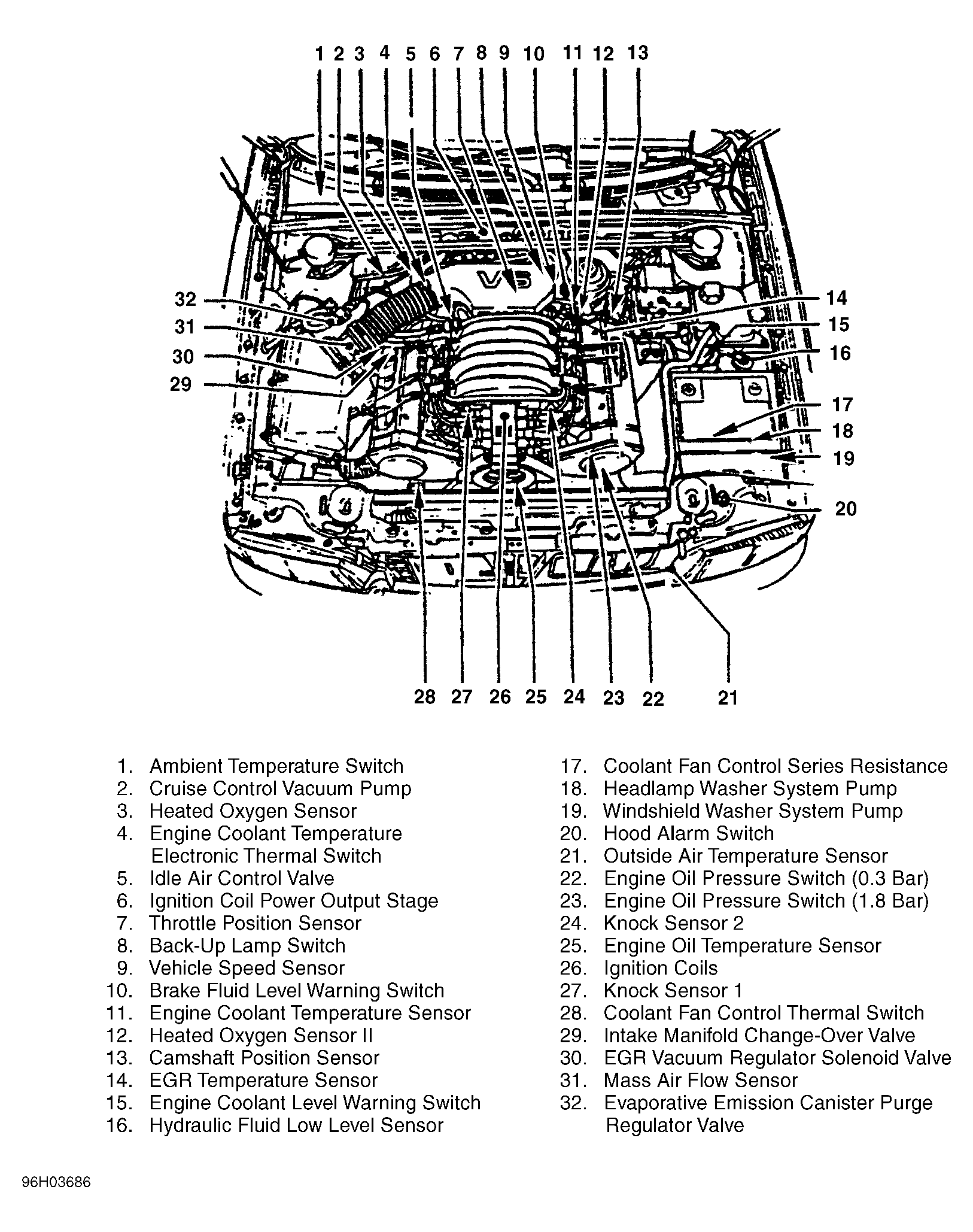

Fig 4: Engine Compartment

Fig 5: Dash

Fig 6: Rear Seating Area
