Toe Adjustment: Rear

Toe is not adjustable on Front Wheel Drive (FWD) models. If toe reading is not as specified, locate and replace damaged or worn suspension parts.

On All-Wheel Drive (AWD) models, loosen toe eccentric nut. Adjust toe eccentric bolt to desired setting and tighten nut. See Fig 1. Recheck alignment angles after adjustments.

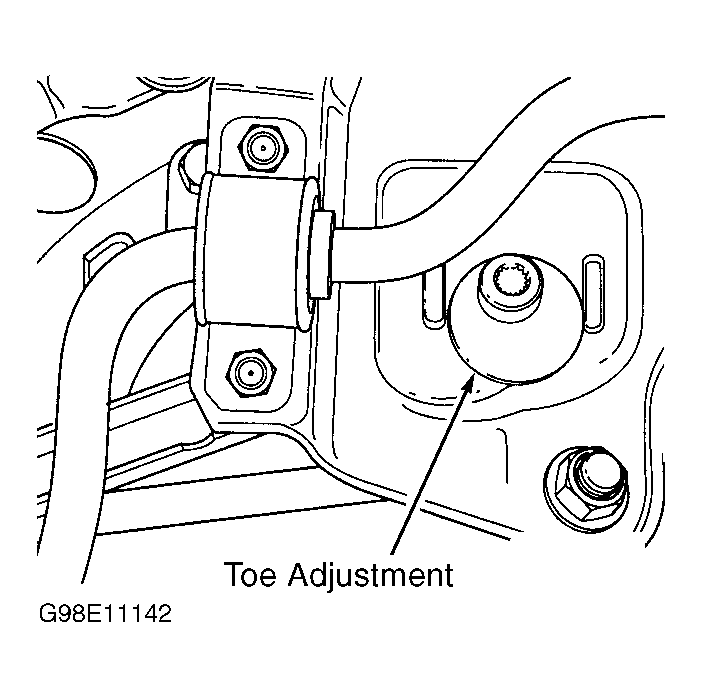

Fig 1: Adjusting Rear Toe Eccentric Bolt (A6 AWD)

Courtesy of AUDI OF AMERICA, INC.
