Component Location Graphics

NOTE: Figures May Show Multiple Component Locations. Refer To Appropriate Table For Proper Figure References.

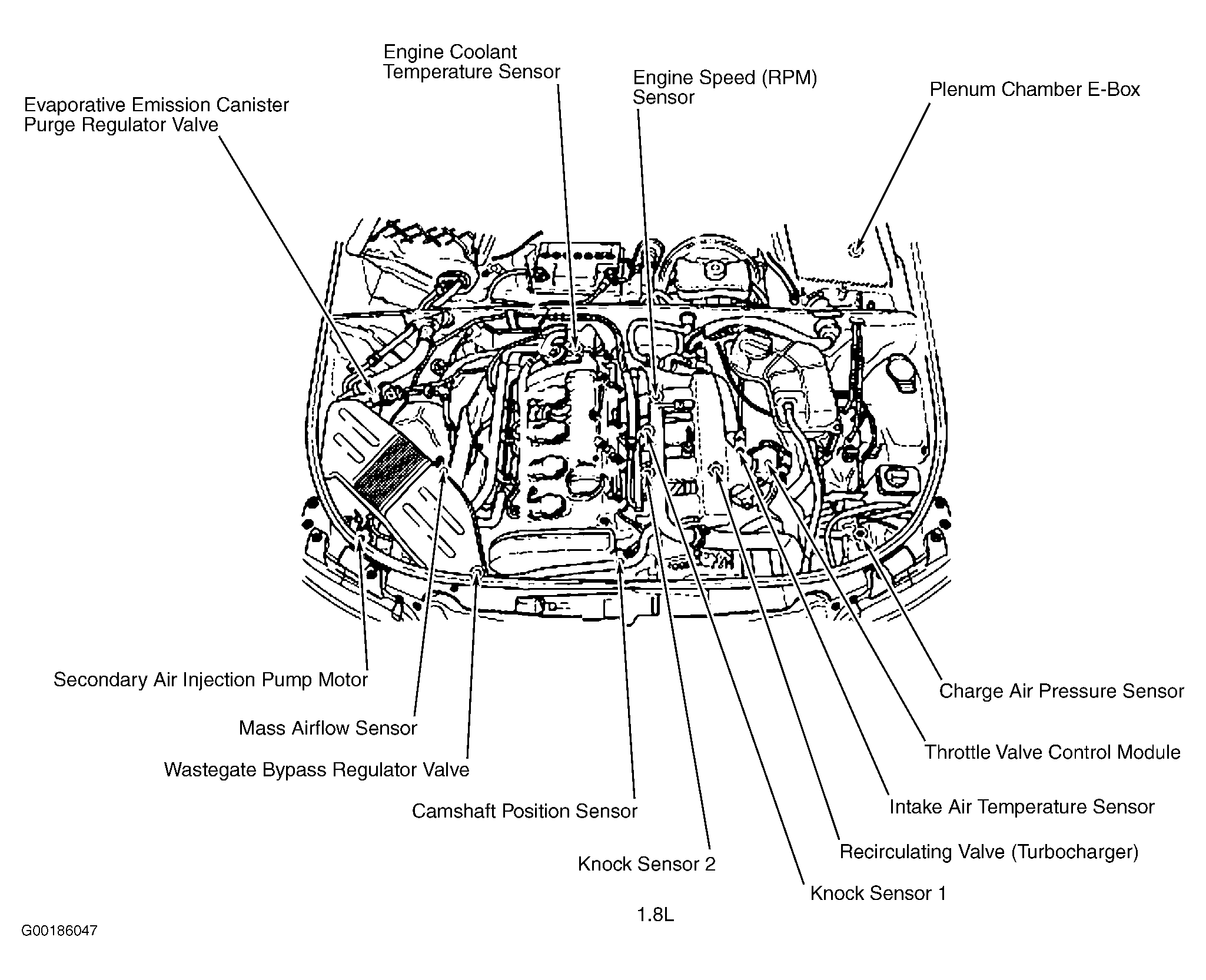

Fig 1: Engine Compartment (1.8L)

Fig 2: Engine Compartment (V6)

Fig 3: Engine Compartment (V6)

Fig 4: Vehicle Overview

Fig 5: Central Electric Panel (Front Side)

Fig 6: 8-Pin Relay Carrier

Fig 7: 13-Pin Relay Carrier
