Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.
Fig 1: Engine Compartment
G98D02350

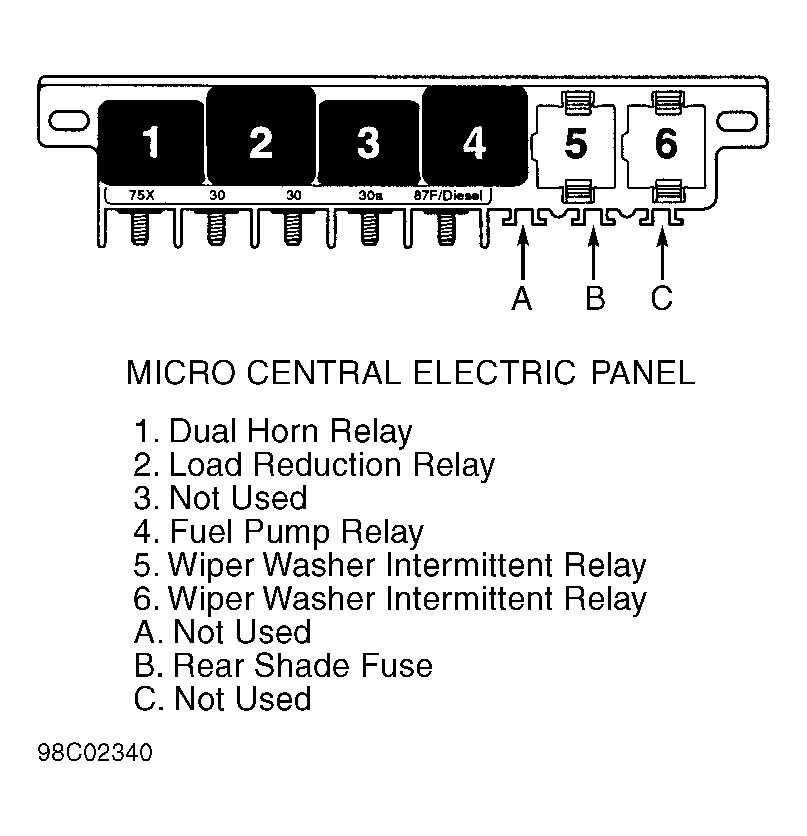

Fig 2: Micro Central Electric Panel
G98C02340

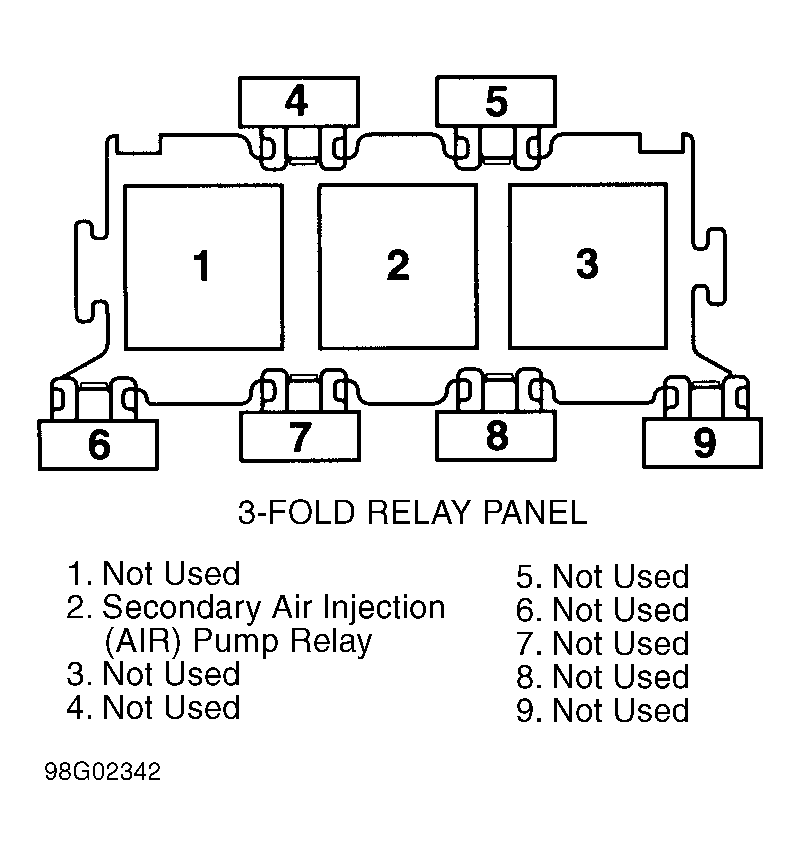

Fig 3: 3-Fold Relay Panel
G98G02342
Fig 4: 8-Fold Relay Panel
G98F63482
Fig 5: 13-Fold Relay Panel
G98E63481
Fig 6: Vehicle Overview
G98J02348
