Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

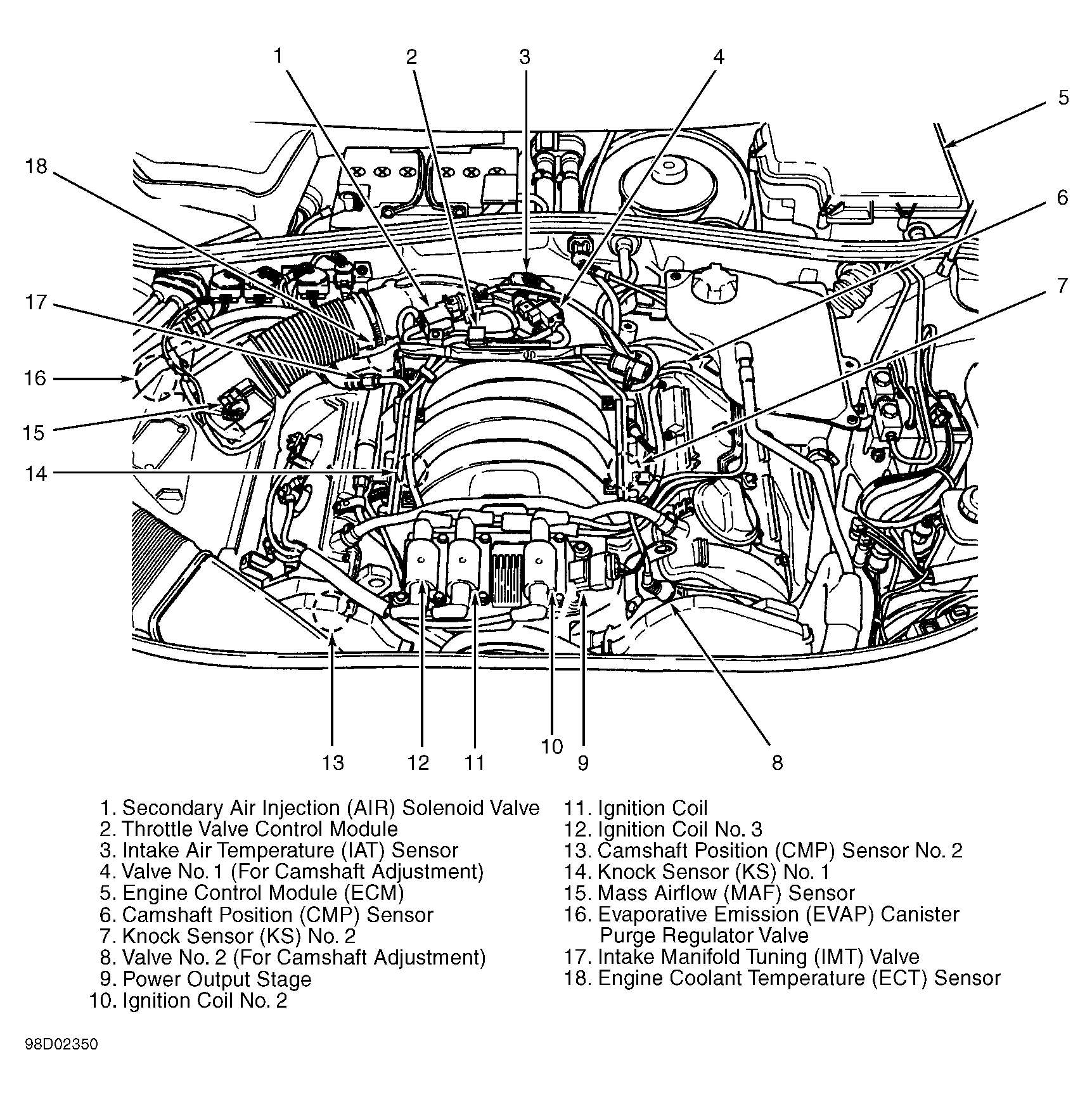

Fig 1: Engine Compartment
G98D02350
Fig 2: Micro Central Electric Panel
G98F63938
Fig 3: 3-Fold Relay Panel
G98G63939
Fig 4: 8-Fold Relay Panel
G98J63940
Fig 5: 13-Fold Relay Panel
G98A63941

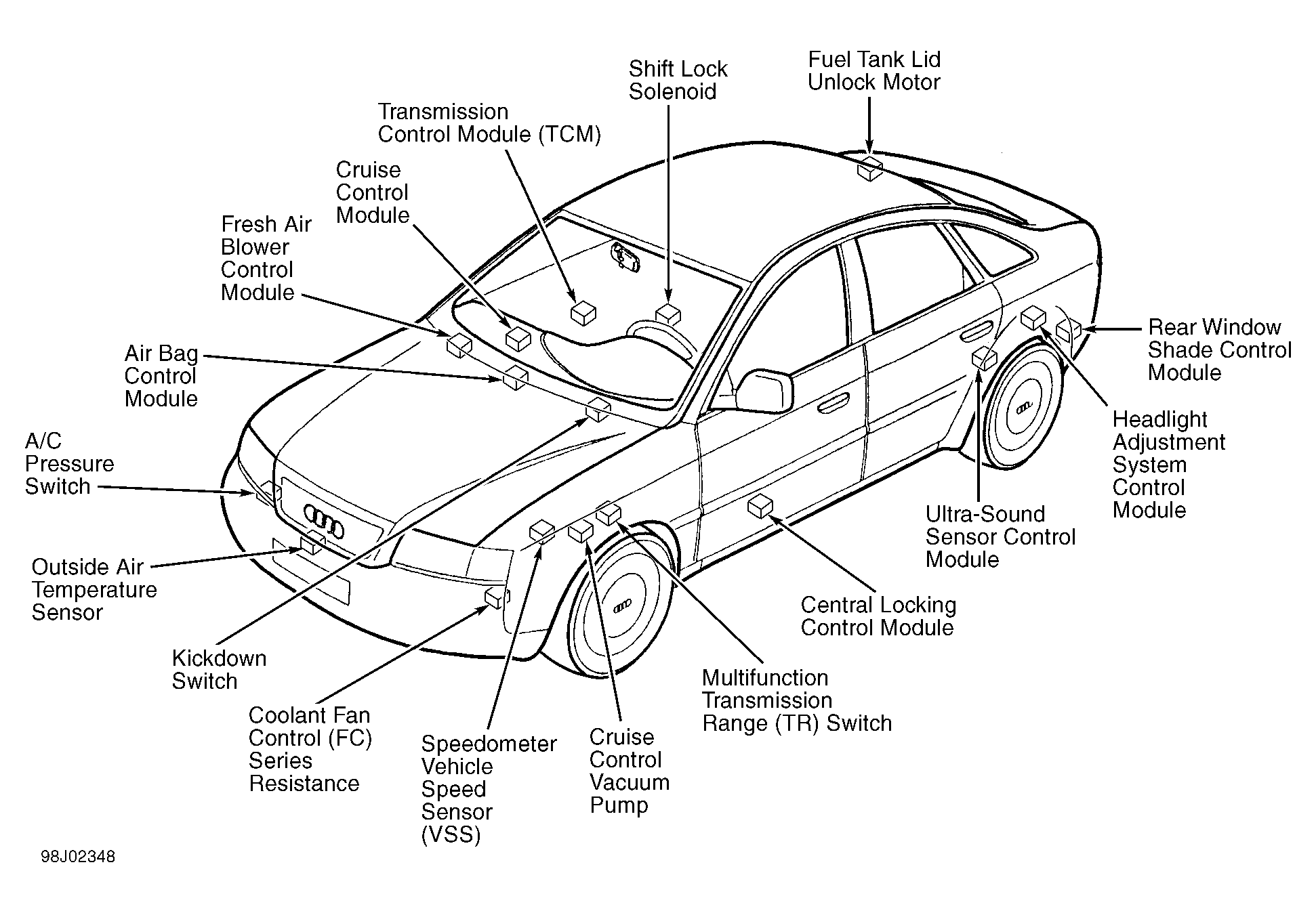

Fig 6: Vehicle Overview
G98J02348
