Assembly Overview

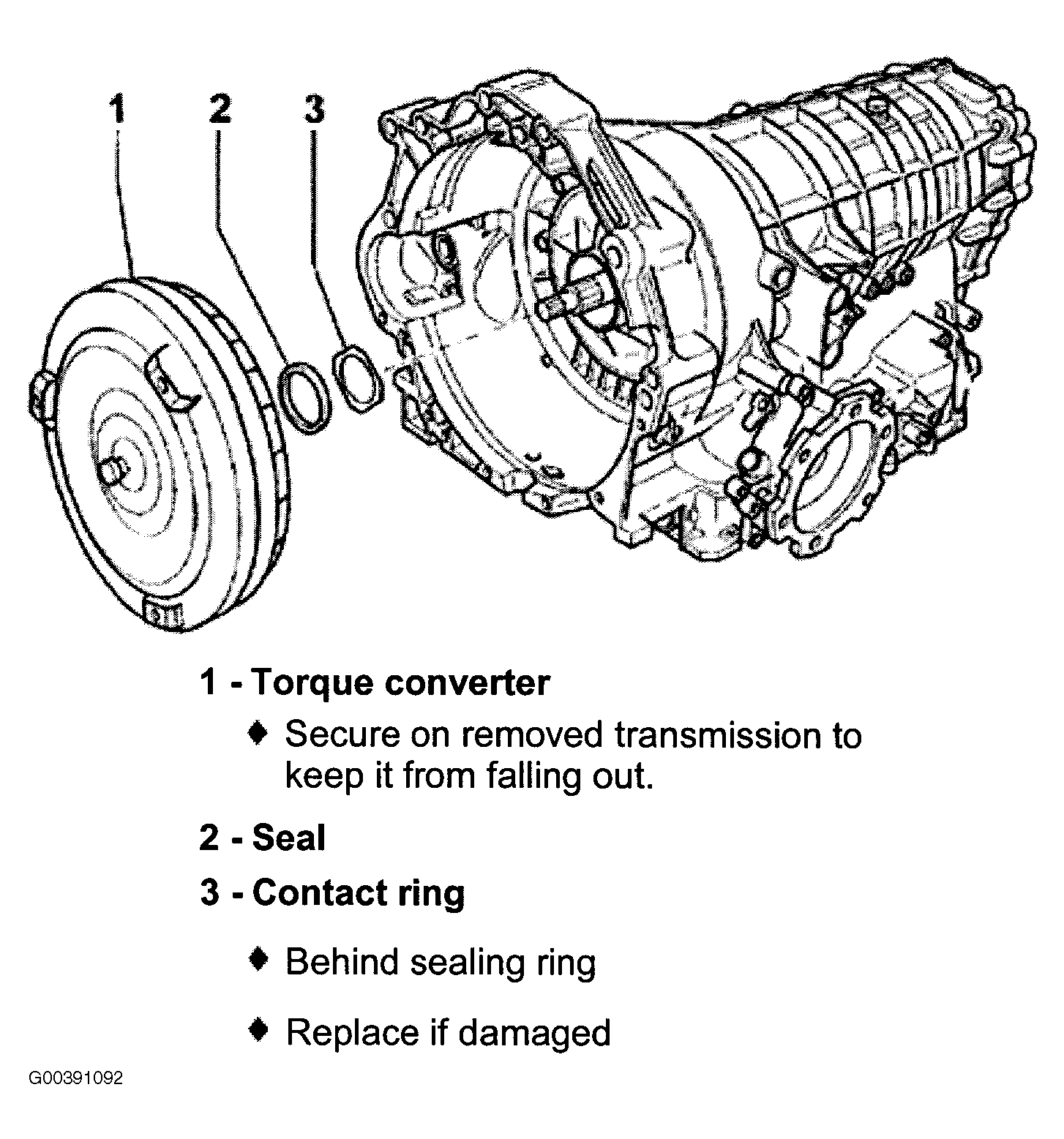

Fig 1: Overview Of Torque Converter Assembly

Courtesy of AUDI OF AMERICA, INC.

WARNING: Check installation dimension of torque converter before installing transmission. See TORQUE CONVERTER, INSTALLING .

Rules of cleanliness for working on automatic transmissions. See RULES OF CLEANLINESS FOR WORKING ON AUTOMATIC TRANSMISSIONS .
General repair notes. See REPAIR INSTRUCTIONS .
Lightly coat sealing ring with ATF. Other lubricating substances lead to functional problems in the hydraulic transmission control.
