Torque Specifications

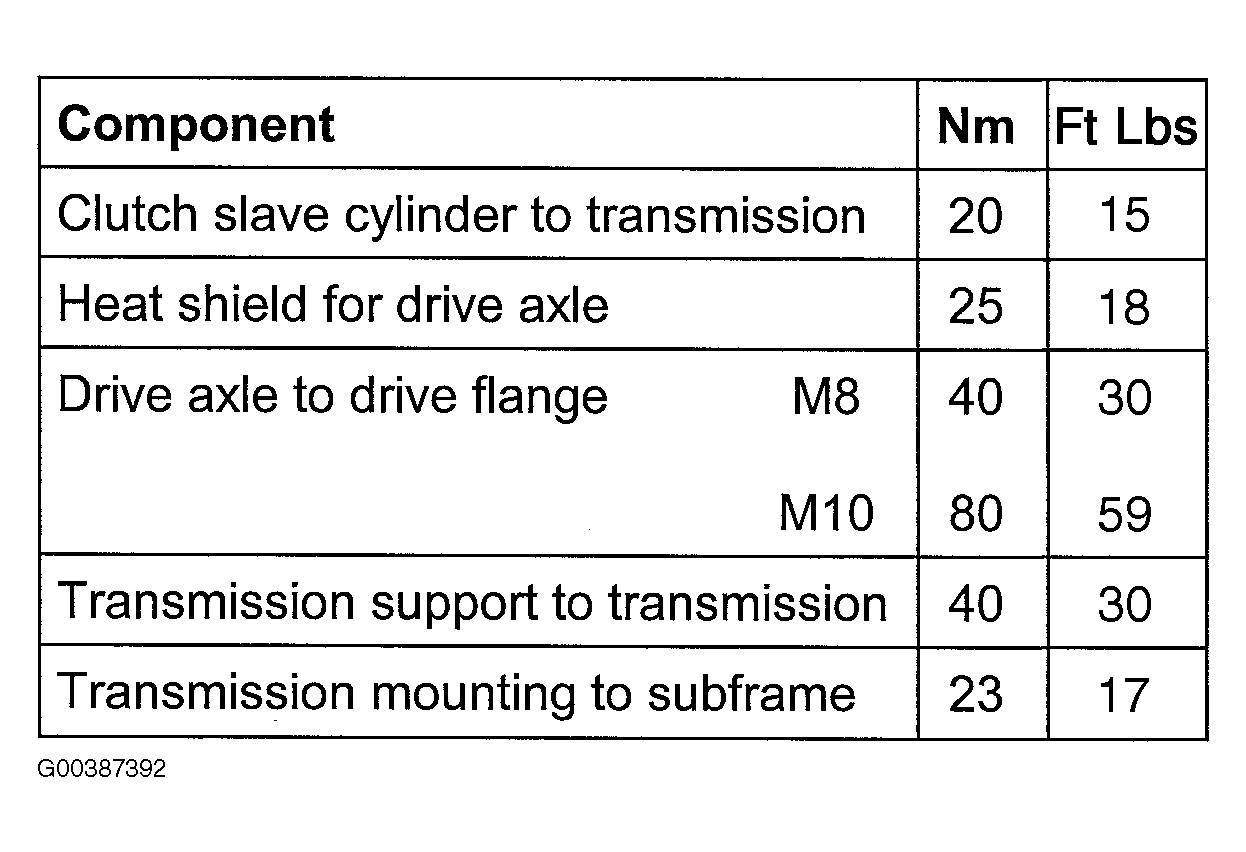

Fig 1: Slave Cylinder Peripheral Replacement Components Fastener Torque Specifications

Courtesy of AUDI OF AMERICA, INC.

Fig 2: Duel-Mass Flywheel Bolt Torque Specifications

Courtesy of AUDI OF AMERICA, INC.

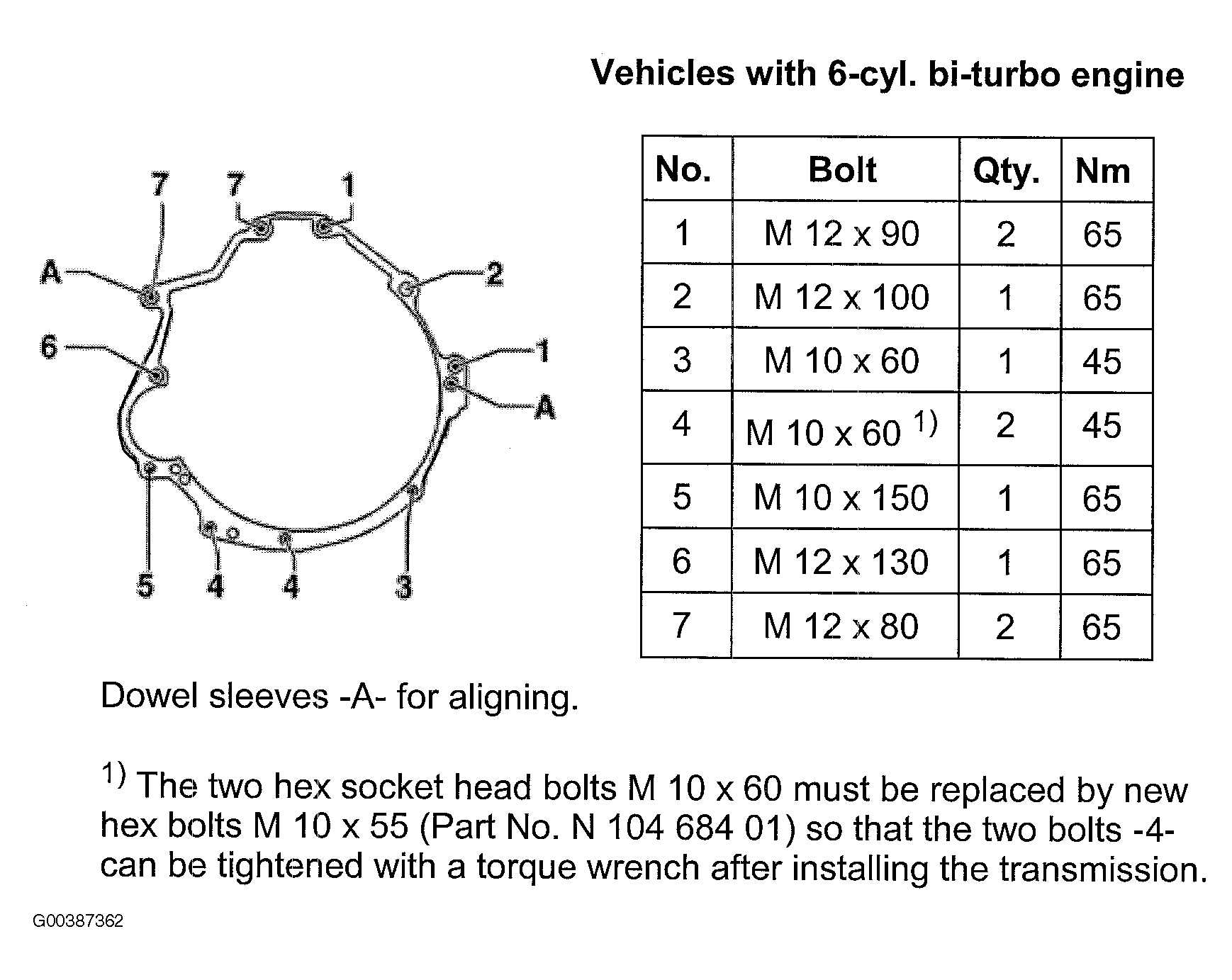

Fig 3: Engine-To-Transaxle Bolt Torque Specifications

Courtesy of AUDI OF AMERICA, INC.

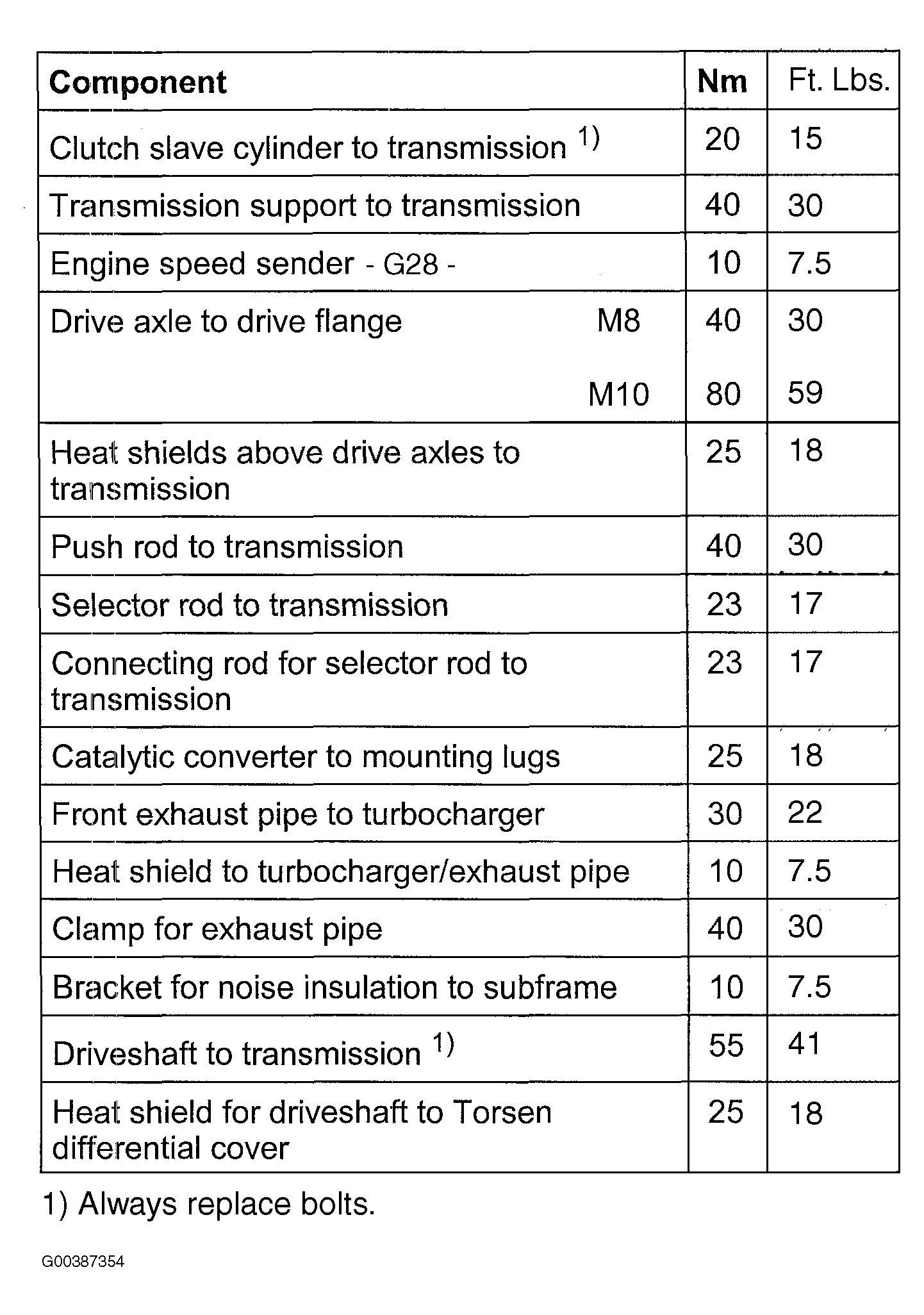

Fig 4: Peripheral Transaxle Replacement Components Fastener Torque Specifications

Courtesy of AUDI OF AMERICA, INC.

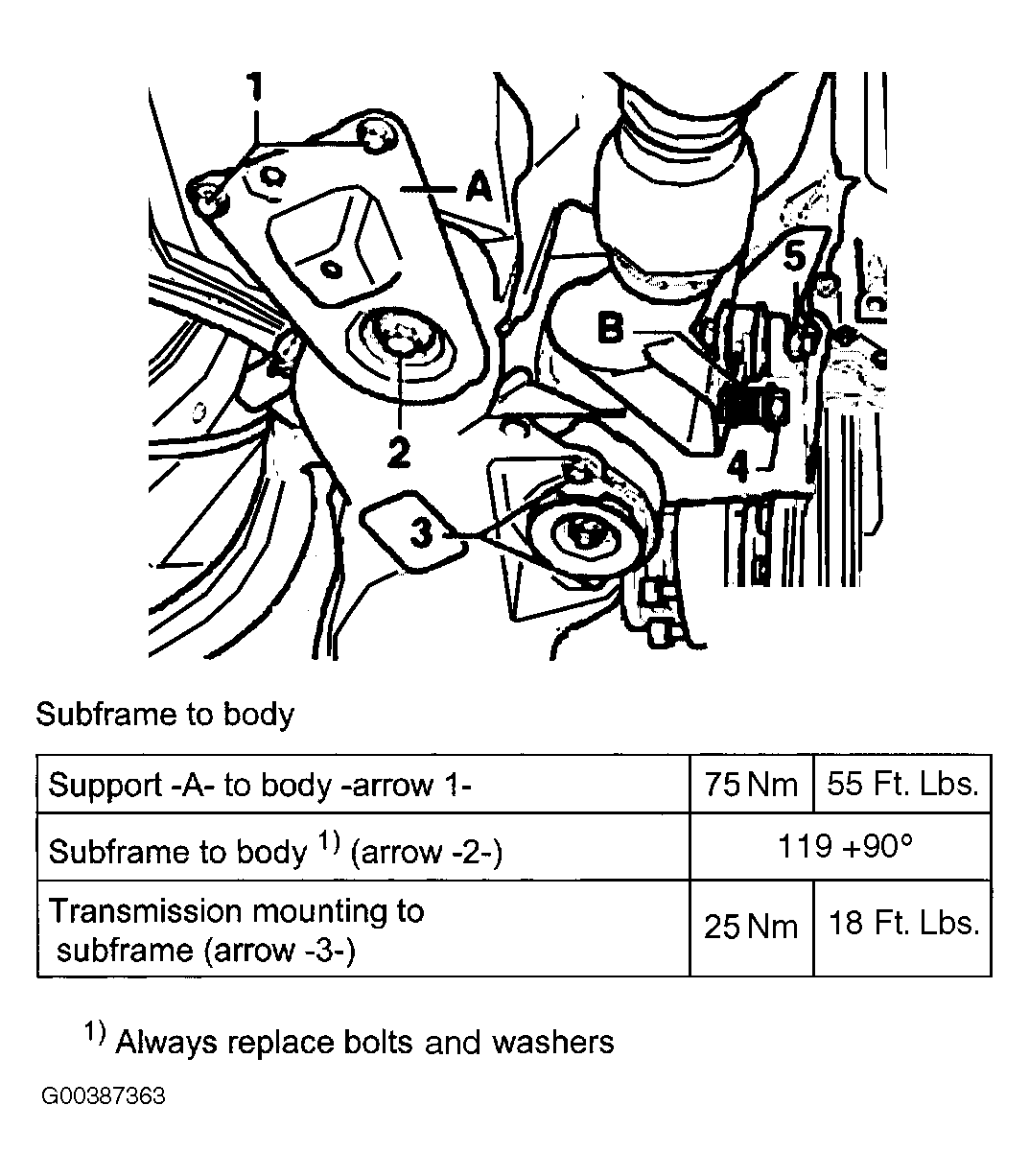

Fig 5: Subframe-To-Body Torque Specifications

Courtesy of AUDI OF AMERICA, INC.

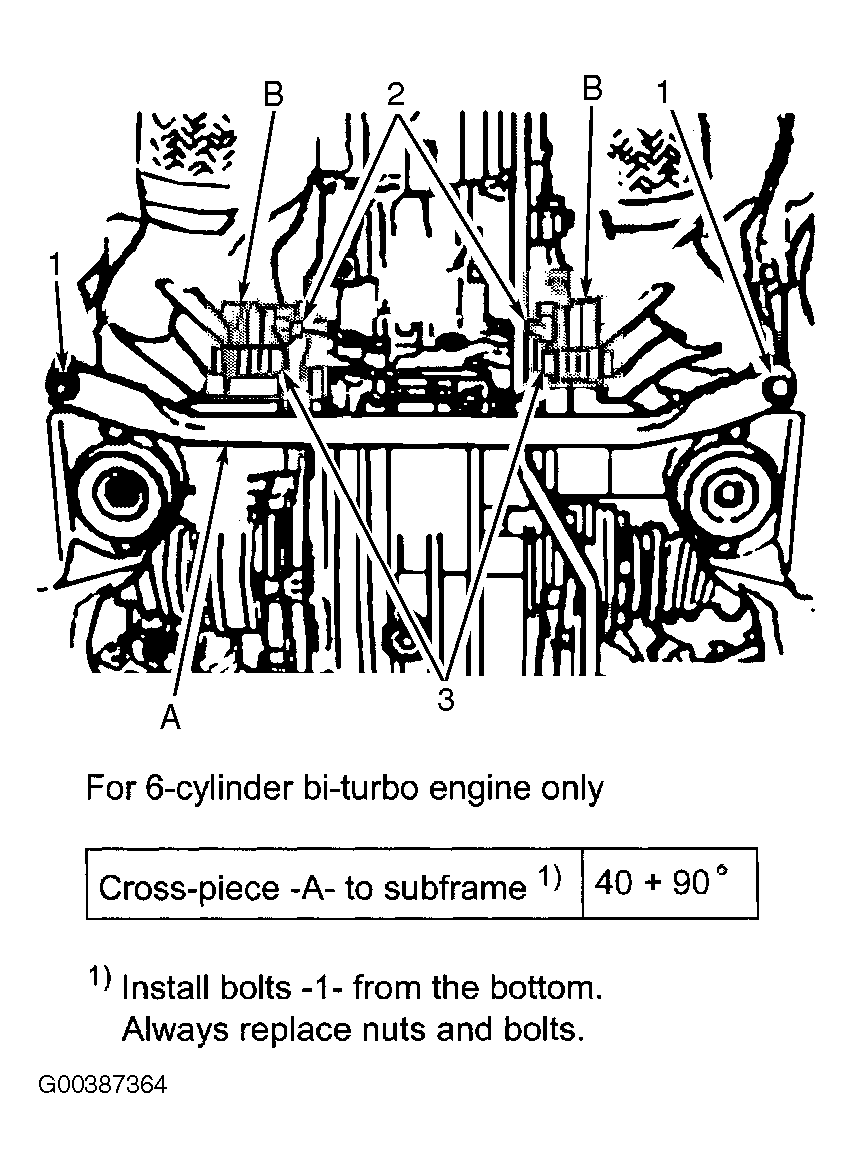

Fig 6: Cross-Piece (A) To Subframe Torque Specifications

Courtesy of AUDI OF AMERICA, INC.
