Vacuum Diagrams: Introduction

This article contains underhood views or schematics of vacuum hose routing. Use these vacuum diagrams during visual inspection in BASIC DIAGNOSTIC PROCEDURES article. This will assist in identifying improperly routed vacuum hoses which cause driveability and/or computer indicated malfunctions.

NOTE: Only evaporative emissions system vacuum diagram information is available for A6 equipped with 4.2L engine.

Fig 1: Vacuum Diagram (A4 - 1.8L Turbo)

G00077183

Courtesy of AUDI OF AMERICA, INC.

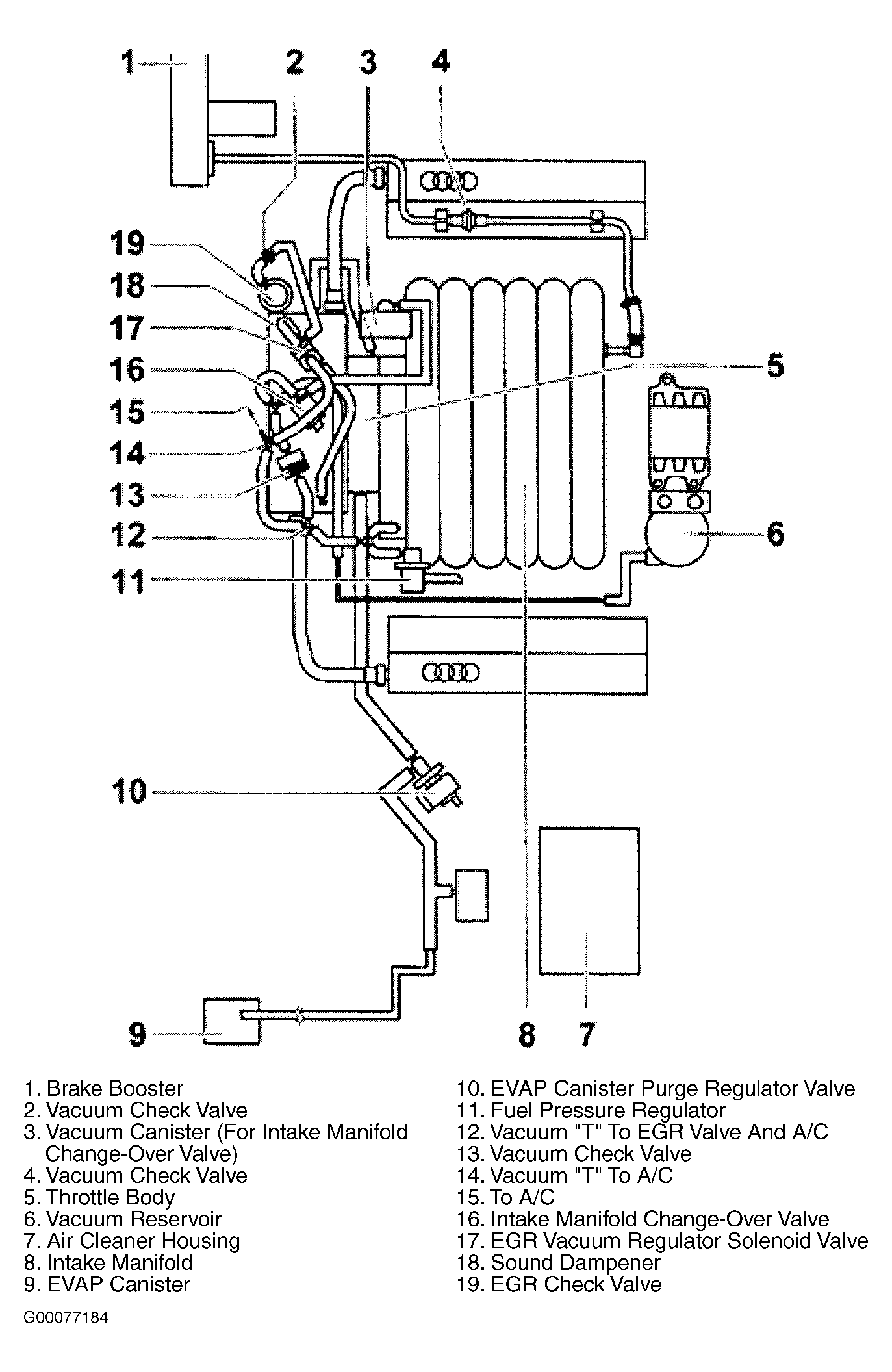

Fig 2: Vacuum Diagram (A4 - 2.8L - M/T)

G00077184

Courtesy of AUDI OF AMERICA, INC.

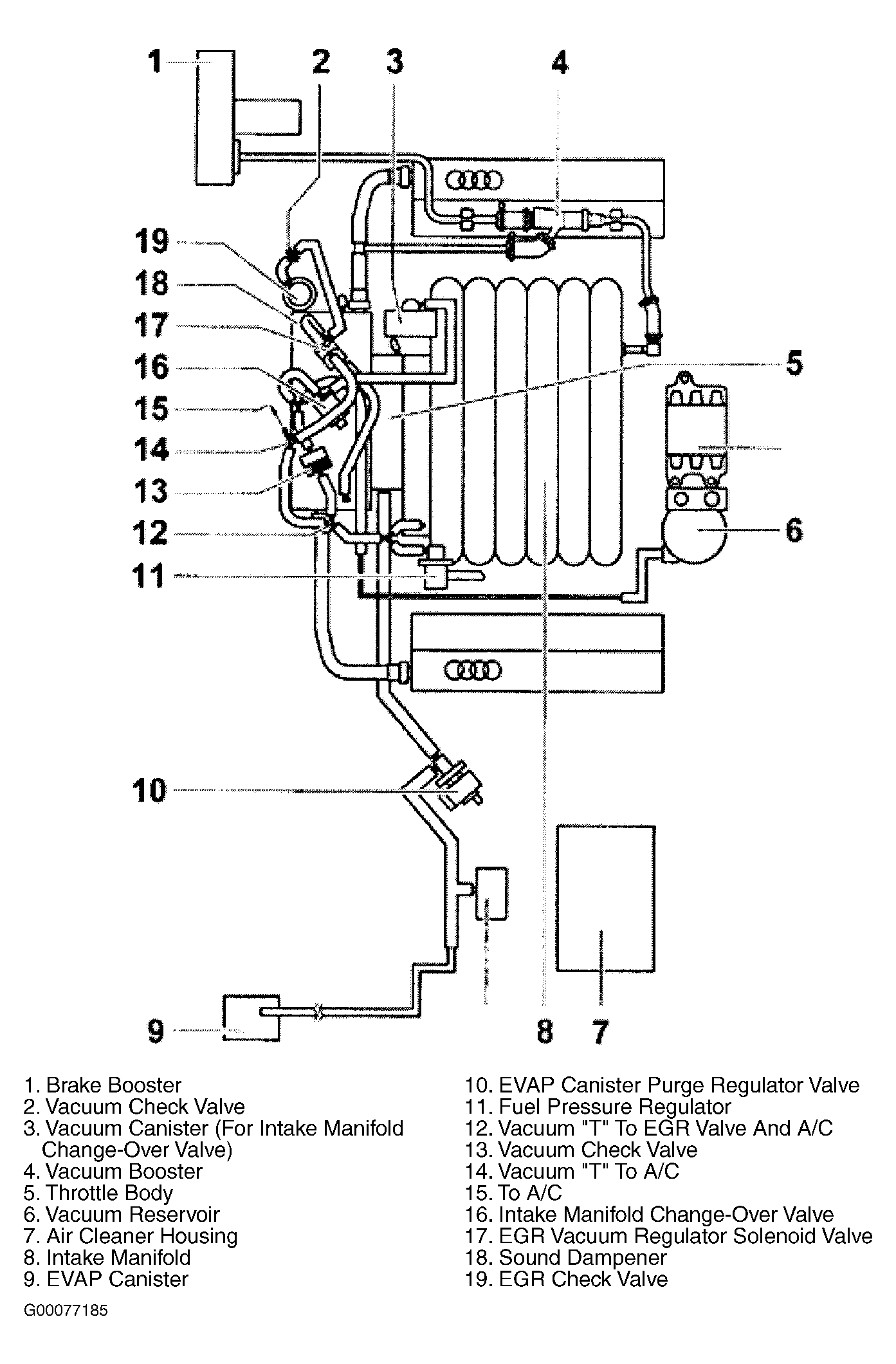

Fig 3: Vacuum Diagram (A4 - 2.8L - A/T)

G00077185

Courtesy of AUDI OF AMERICA, INC.

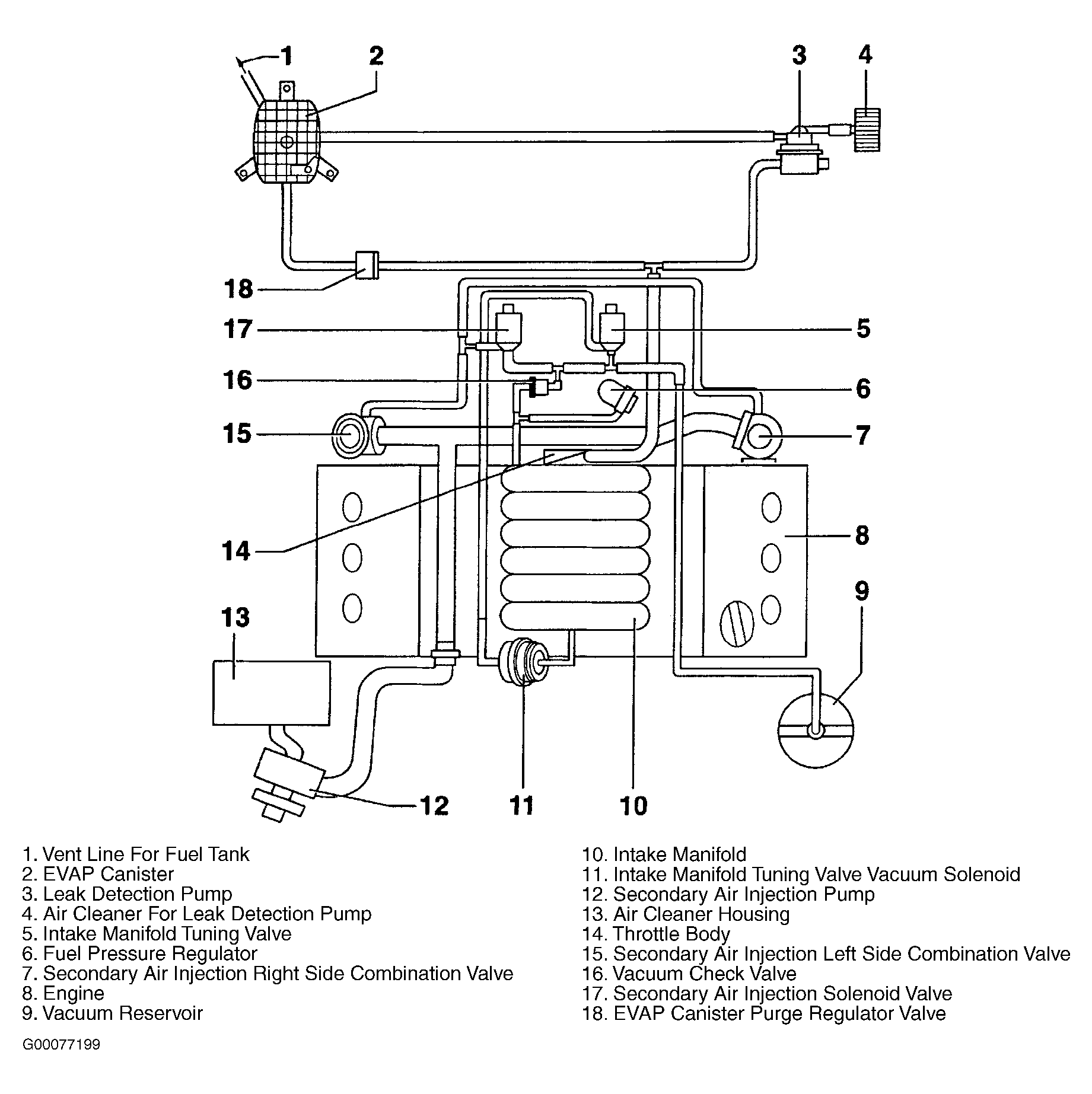

Fig 4: Vacuum Diagram (A6 - 2.8L)

G00077199

Courtesy of AUDI OF AMERICA, INC.

Fig 5: Vacuum Diagram (TT - Engine Code AMU)

G00077195

Courtesy of AUDI OF AMERICA, INC.

Fig 6: Vacuum Diagram (TT - Engine Code ATC)

G00077196

Courtesy of AUDI OF AMERICA, INC.

Fig 7: Vacuum Diagram (TT - Engine Code AWP)

G00077197

Courtesy of AUDI OF AMERICA, INC.

Fig 8: Evaporative Emissions System Vacuum Diagram (A4 - 1.8L Turbo)

G00077192

Courtesy of AUDI OF AMERICA, INC.

Fig 9: Secondary Air Injection System Vacuum Diagram (A4 - 1.8L Turbo)

G00077191

Courtesy of AUDI OF AMERICA, INC.

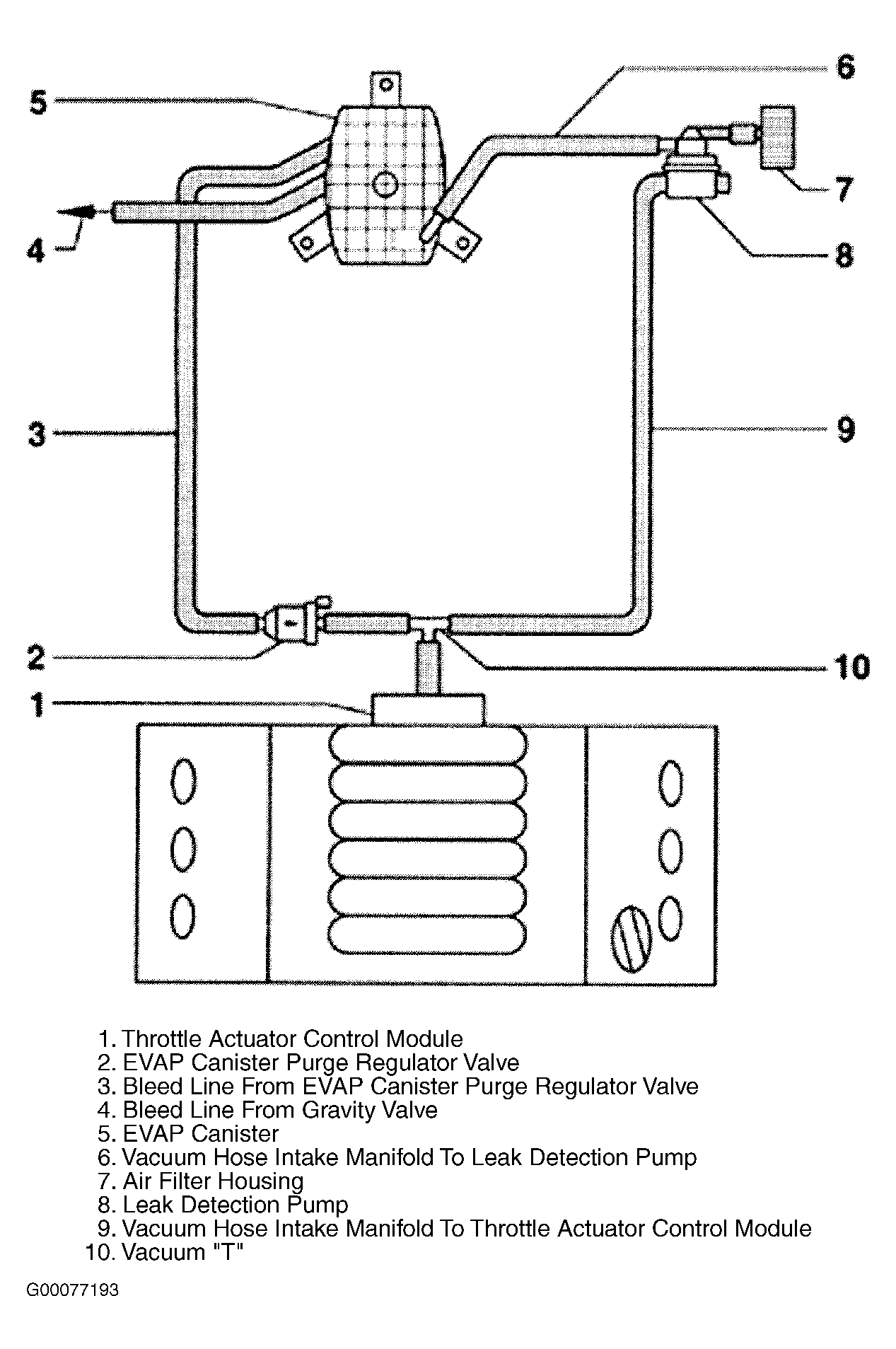

Fig 10: Evaporative Emissions System Vacuum Diagram (A4 - 2.8L)

G00077193

Courtesy of AUDI OF AMERICA, INC.

Fig 11: Boost Pressure Control Vacuum Diagram (A6 & S4 - 2.7L Turbo)

G00077186

Courtesy of AUDI OF AMERICA, INC.

Fig 12: Recirculating Air Control Vacuum Diagram (A6 & S4 - 2.7L Turbo)

G00077188

Courtesy of AUDI OF AMERICA, INC.

Fig 13: Crankcase Ventilation Vacuum Diagram (A6 & S4 - 2.7L Turbo)

G00077189

Courtesy of AUDI OF AMERICA, INC.

Fig 14: Suction Jet Pump Vacuum Diagram (A6 & S4 - 2.7L Turbo - A/T)

G00077190

Courtesy of AUDI OF AMERICA, INC.

Fig 15: Evaporative Emissions System Vacuum Diagram (A6 - 4.2L)

G00077200

Courtesy of AUDI OF AMERICA, INC.

Fig 16: Evaporative Emissions System Vacuum Diagram (S4 & A6 - 2.7L Turbo - 1 Of 2)

G00077187

Courtesy of AUDI OF AMERICA, INC.

Fig 17: Evaporative Emissions System Vacuum Diagram (S4 & A6 - 2.7L Turbo - 2 Of 2)

G00077194

Courtesy of AUDI OF AMERICA, INC.

Fig 18: Evaporative Emissions System Vacuum Diagram (TT)

G00077198

Courtesy of AUDI OF AMERICA, INC.
