Control Units

CONTROL UNITS LOCATION

Component Component Location
ABS Control Module On left side of engine compartment.
Air Bag Control Module Below center console.
Comfort System Central Control Module Near base of left front seat, in electronics box.
Convenience System Central Control Module Near base of left front seat, in electronics box.
Coolant Fan Control Module On top of radiator fan shroud.
Door Control Modules (4) Integral with respective window regulator motor.
Fresh Air Blower Control Module Integral with fresh air blower motor, behind right end of dash.
Headlight Range Control Module Behind glove box.
Heated Windshield Control Module Near base of windshield.
High Intensity Gas Discharge Lamp Control Module (Left/Right) On respective headlight assembly.
Memory Seat Control Module Under left front seat.
Motronic Engine Control Module In plenum chamber E-box, at left rear of engine compartment.
Multitronic Transmission Control Module (01J A/T) On rear of transmission.
Navigation Control Module (W/CD Mechanism) At left rear of luggage compartment.
Parking Aid Control Module At left rear of luggage compartment.
Rear Heated Seat Control Module (Left/Right) In rear of center console, behind respective heated seat switch.
Rear Window Shade Control Module Under left side of rear shelf.

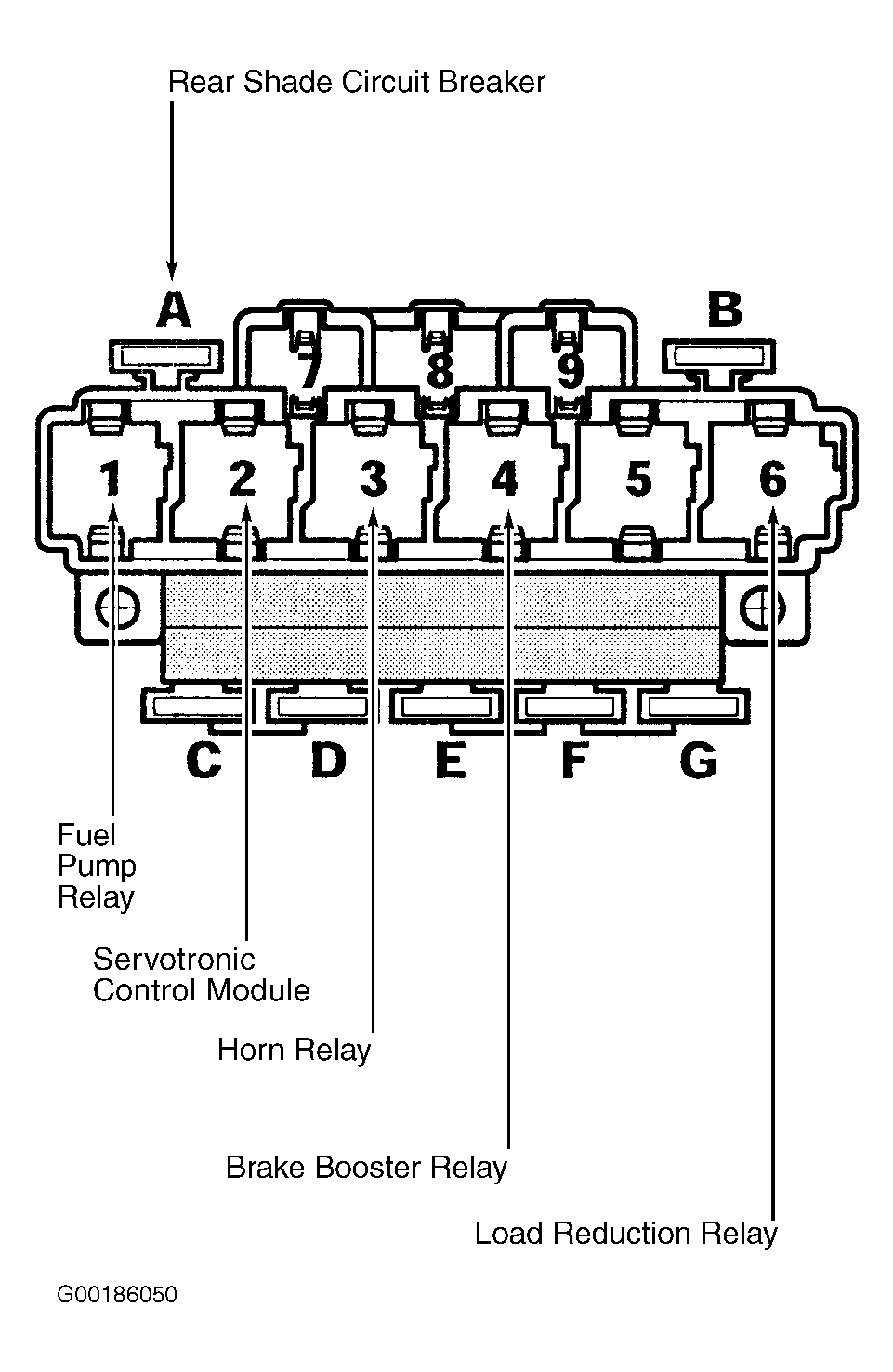

Servotronic Control Module On 9-pin relay carrier. See Figure .
Steering Column Electronic Systems Control Module In top of steering column.
Telephone/Telematic Control Module Near base of right front seat, in electronics box.
Throttle Valve Control Module (1.8L) At left side of engine, on throttle body. See Figure .
Throttle Valve Control Module (3.0L) At center rear of engine, on throttle body.
Transmission Control Module (01V A/T) In plenum chamber E-box, at left rear of engine compartment.
Vehicle Electrical System Control Module Behind left side of dash, below 9-pin relay carrier.
