MULTIFUNCTION Buttons: Notes

Two versions of the multifunction steering wheel are used.

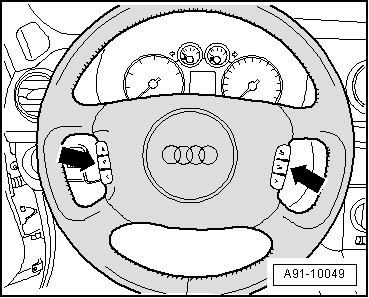

Fig 1: Identifying Multi-Function Steering Wheel

Courtesy of AUDI OF AMERICA, LLC

Multifunction buttons, removing and installing, refer to MULTIFUNCTION BUTTONS, WITH TWO BLOCKS OF BUTTONS .

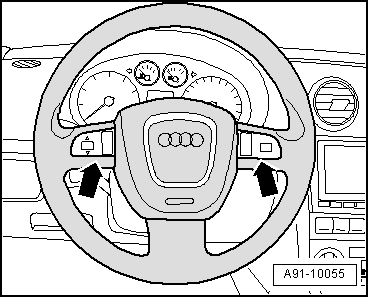

Fig 2: Identifying Multi-Function Steering Wheel With Multi-Function Roller Switch Modules

Courtesy of AUDI OF AMERICA, LLC

Multifunction buttons, removing and installing, refer to MULTIFUNCTION BUTTONS, WITH ROLLER BUTTONS .
