Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

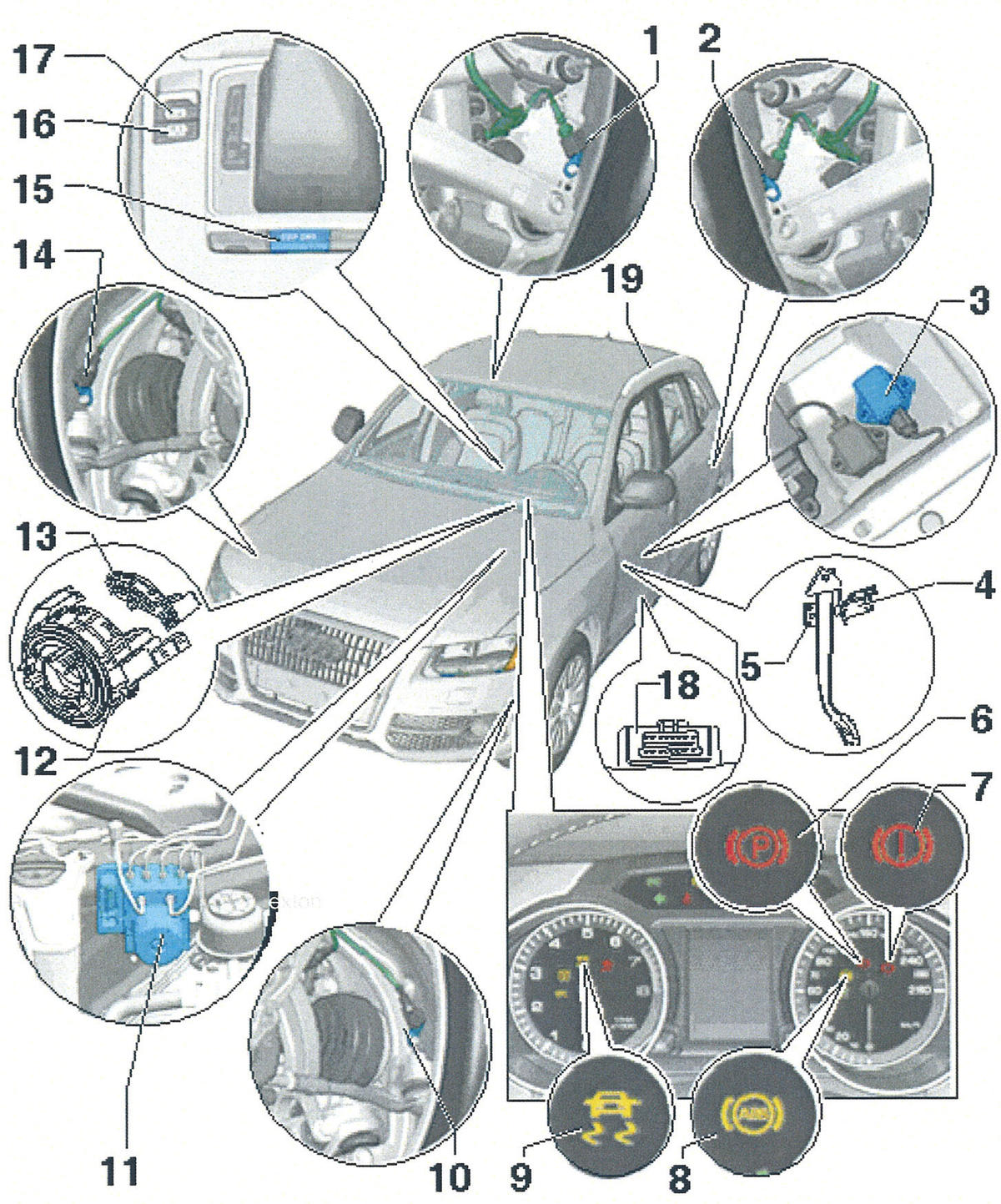

Fig 1: ABS System Component Overview

G00473979

Courtesy of AUDI OF AMERICA, INC.

Fig 2: A/C Unit & Air Intake Housing Components

G00473980

Courtesy of AUDI OF AMERICA, INC.

Fig 3: Left Side Dash Components

G00473981

Courtesy of AUDI OF AMERICA, INC.

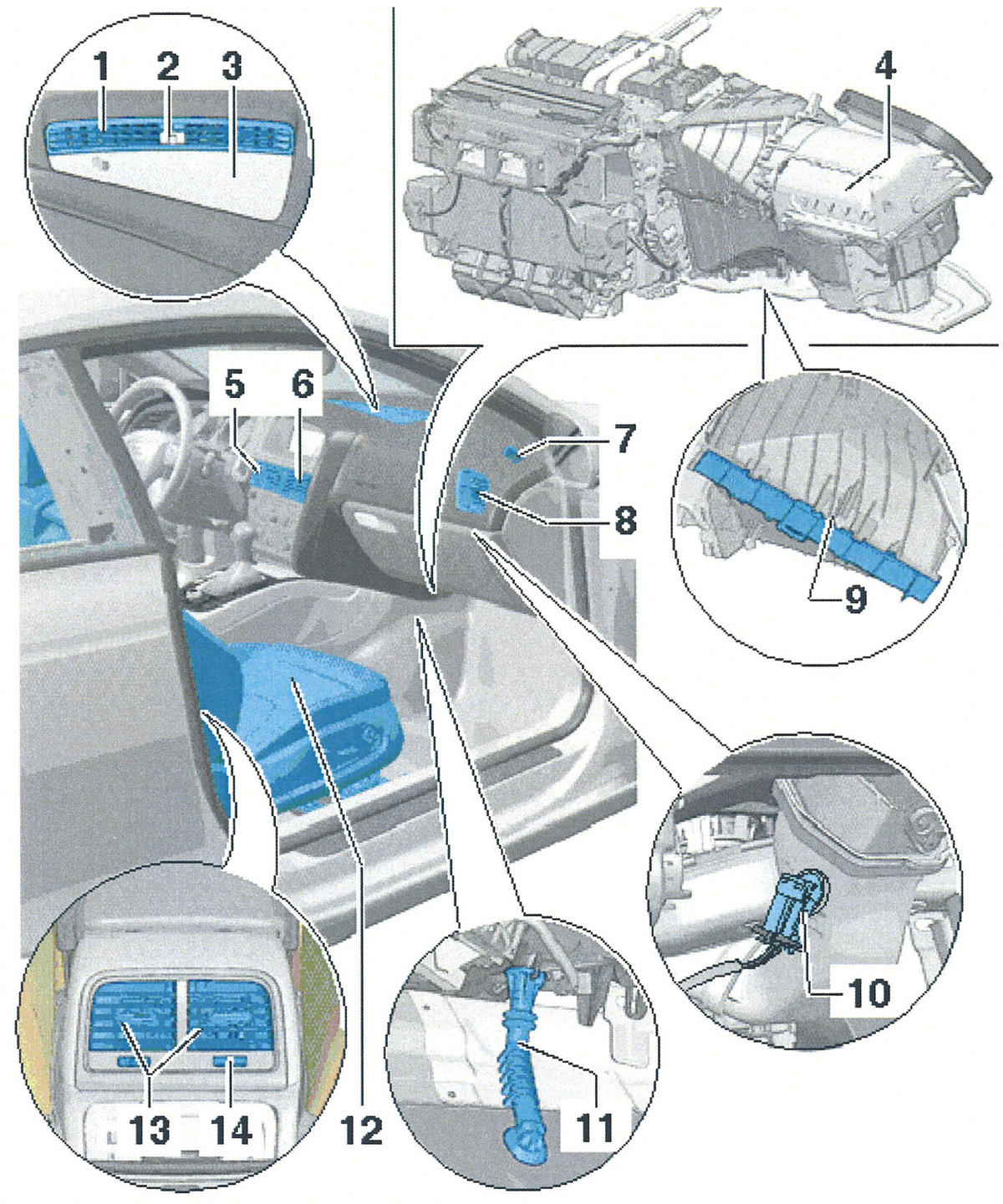

Fig 4: Right Side Dash Components

G00473982

Courtesy of AUDI OF AMERICA, INC.

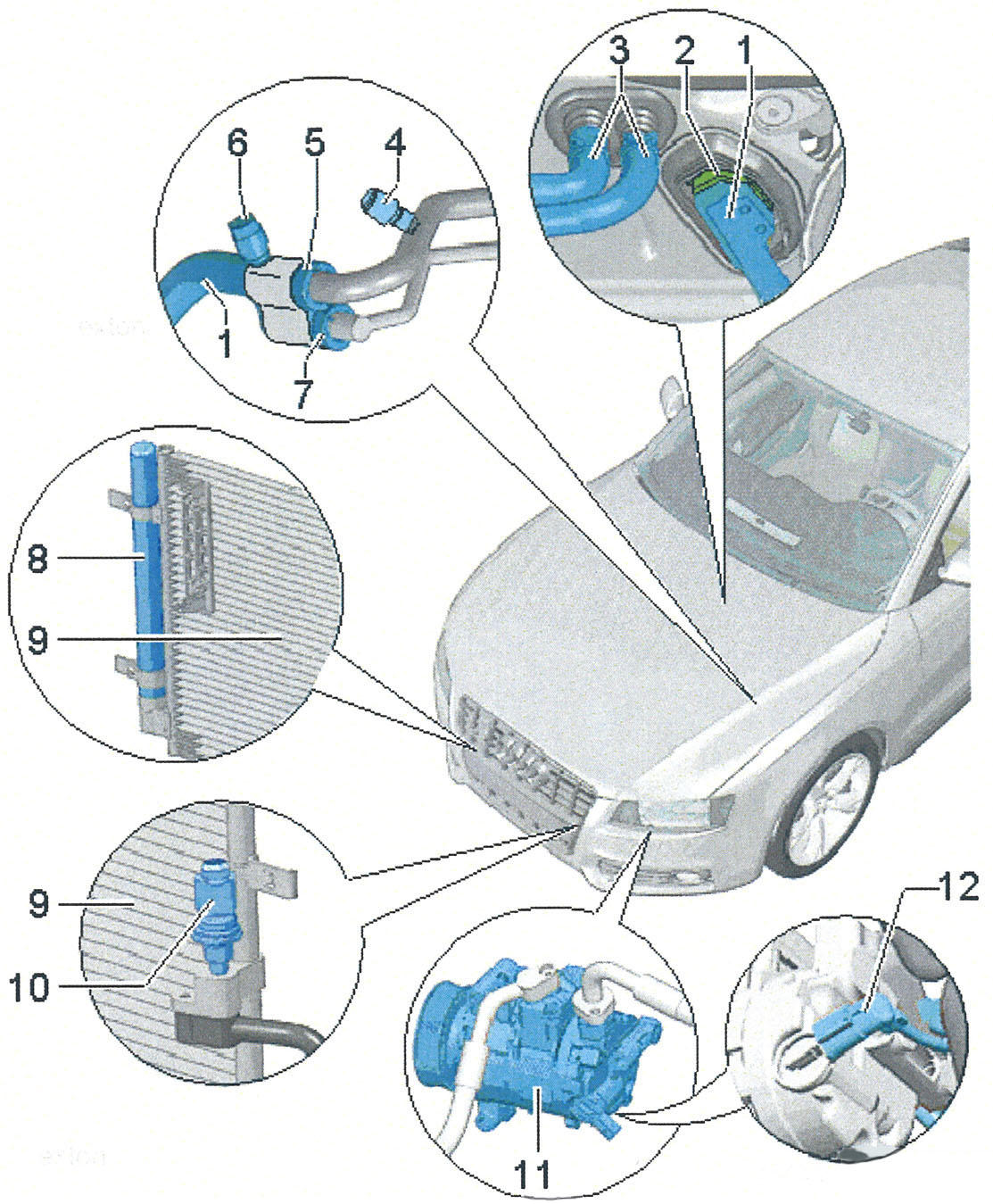

Fig 5: Climate Control Components

G00473983

Courtesy of AUDI OF AMERICA, INC.

Fig 6: Climate Control Components

G00473984

Courtesy of AUDI OF AMERICA, INC.

Fig 7: Access/Start Component Location Overview

G00473985

Courtesy of AUDI OF AMERICA, INC.

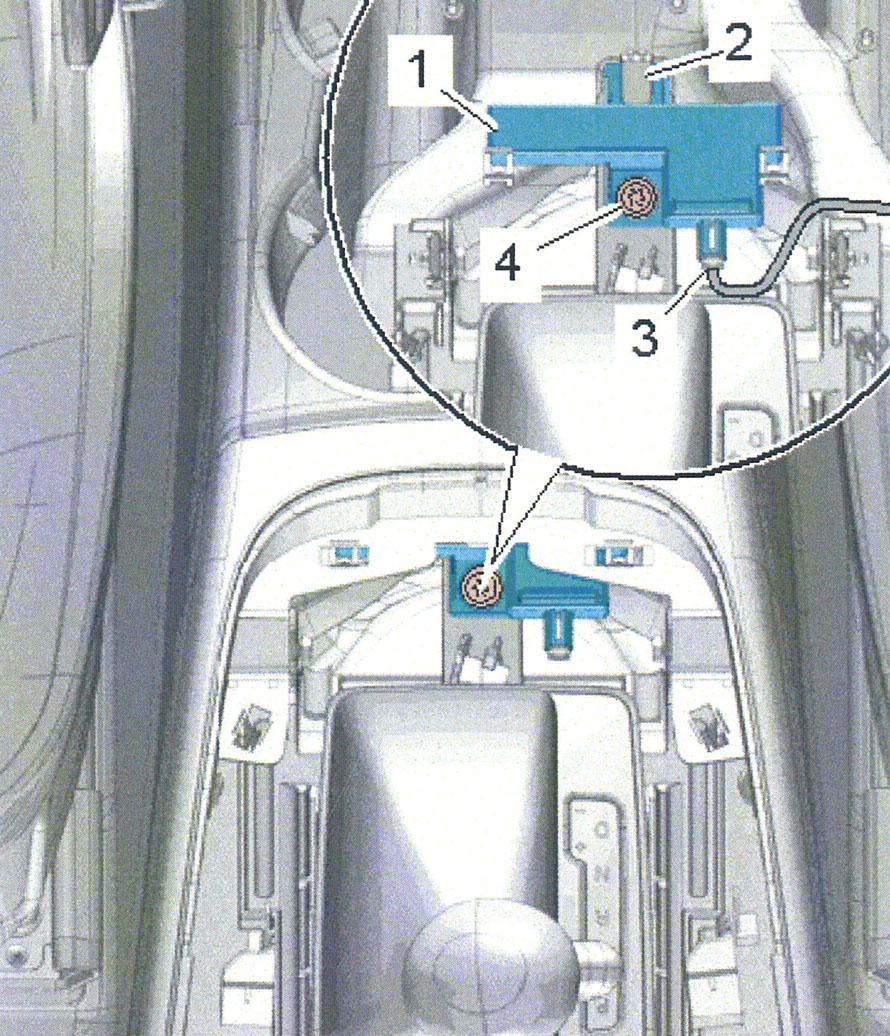

Fig 8: Front Of Floor Console Antenna

G00473986

Courtesy of AUDI OF AMERICA, INC.

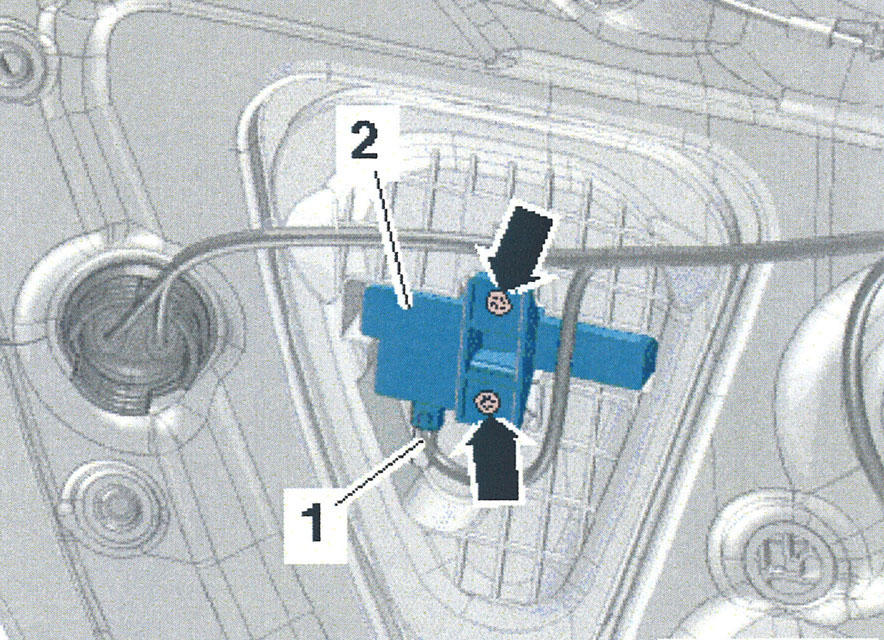

Fig 9: Cargo Area Antenna

G00473987

Courtesy of AUDI OF AMERICA, INC.

Fig 10: Luggage Compartment Antenna

G00473988

Courtesy of AUDI OF AMERICA, INC.

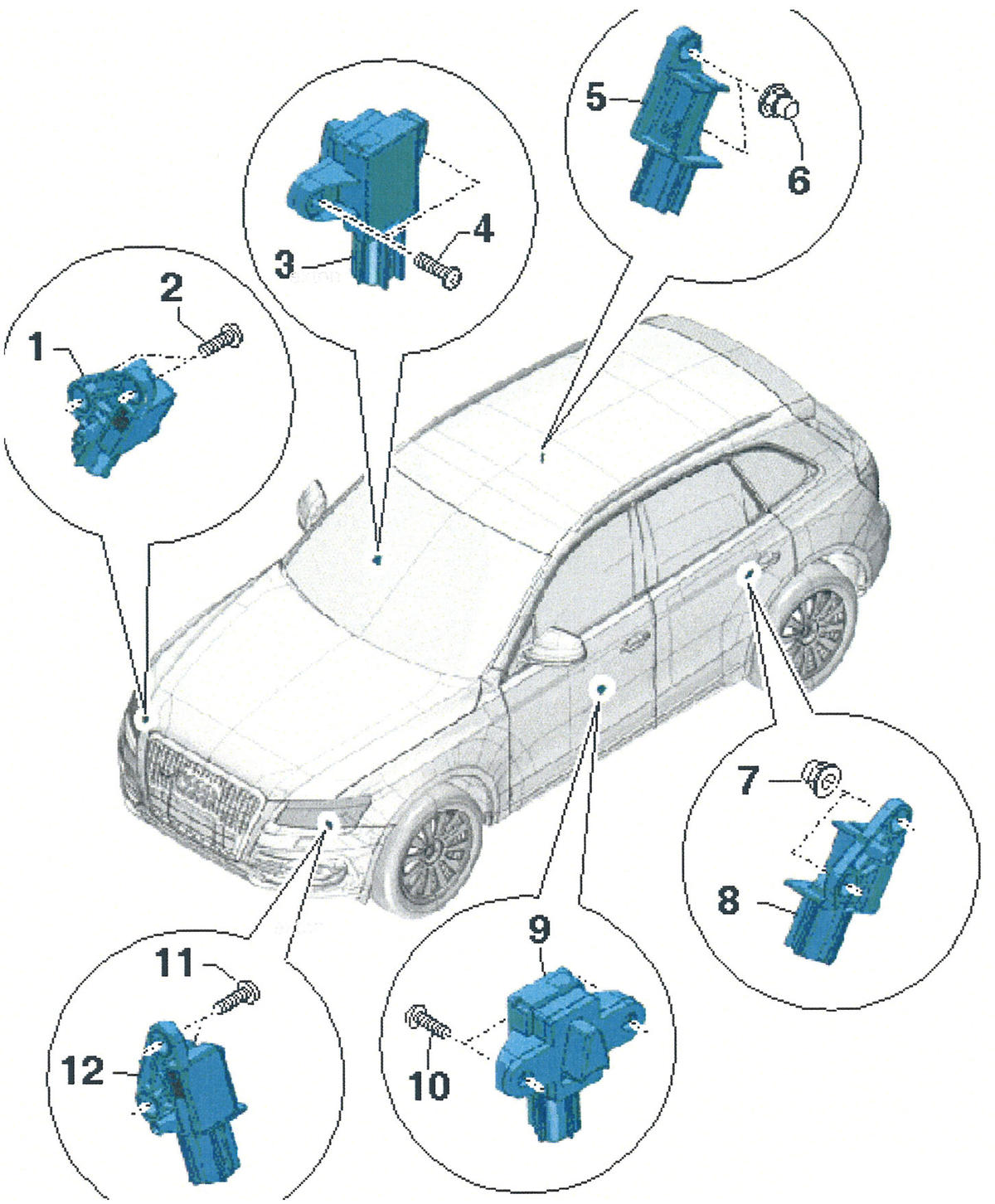

Fig 11: Crash Sensor Locations

G00473989

Courtesy of AUDI OF AMERICA, INC.

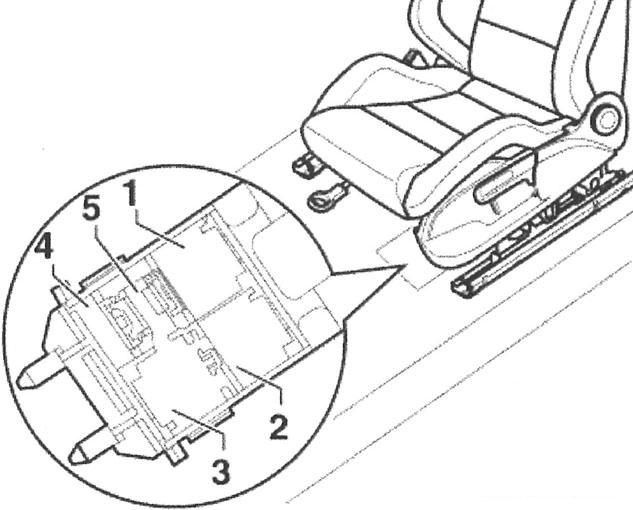

Fig 12: Connector Station Seat Wiring - Driver Seat

G00473990

Courtesy of AUDI OF AMERICA, INC.

Fig 13: 6-Pin Connector Station Connector Location

G00473991

Courtesy of AUDI OF AMERICA, INC.

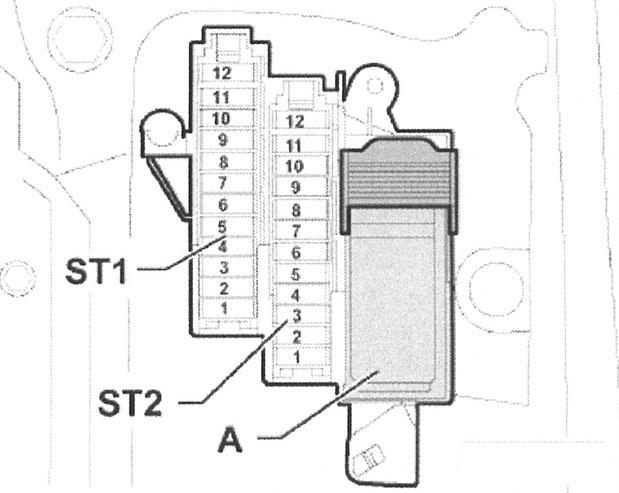

Fig 14: Fuse Panel Connector Station - Right Dash

G00473992

Courtesy of AUDI OF AMERICA, INC.

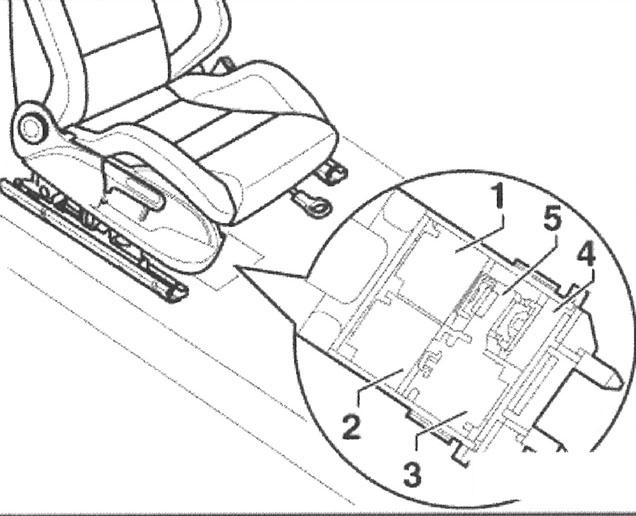

Fig 15: Connector Station Seat Wiring - Front Passenger Seat

G00473993

Courtesy of AUDI OF AMERICA, INC.

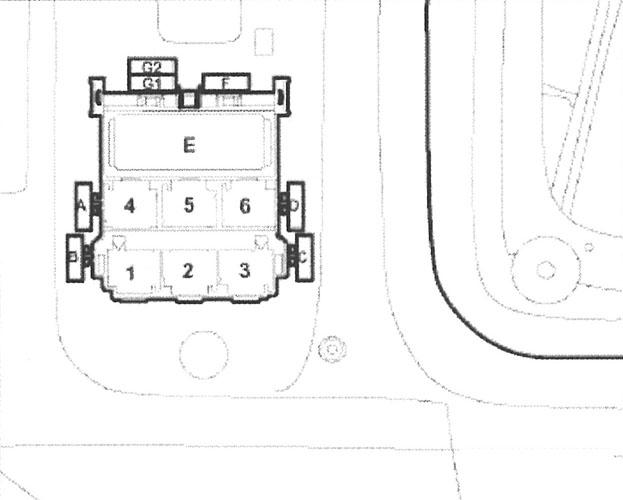

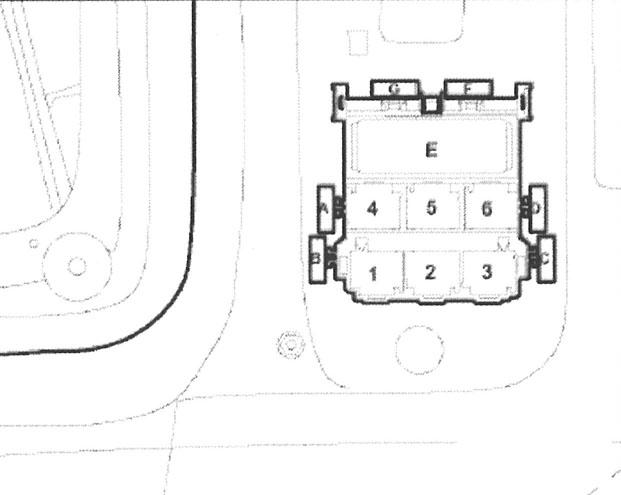

Fig 16: 6-Pin Connector Station Connector Location

G00473994

Courtesy of AUDI OF AMERICA, INC.

Fig 17: Control Module Overview

G00473995

Courtesy of AUDI OF AMERICA, INC.

Fig 18: Control Modules In Front Part Of Vehicle

G00473996

Courtesy of AUDI OF AMERICA, INC.

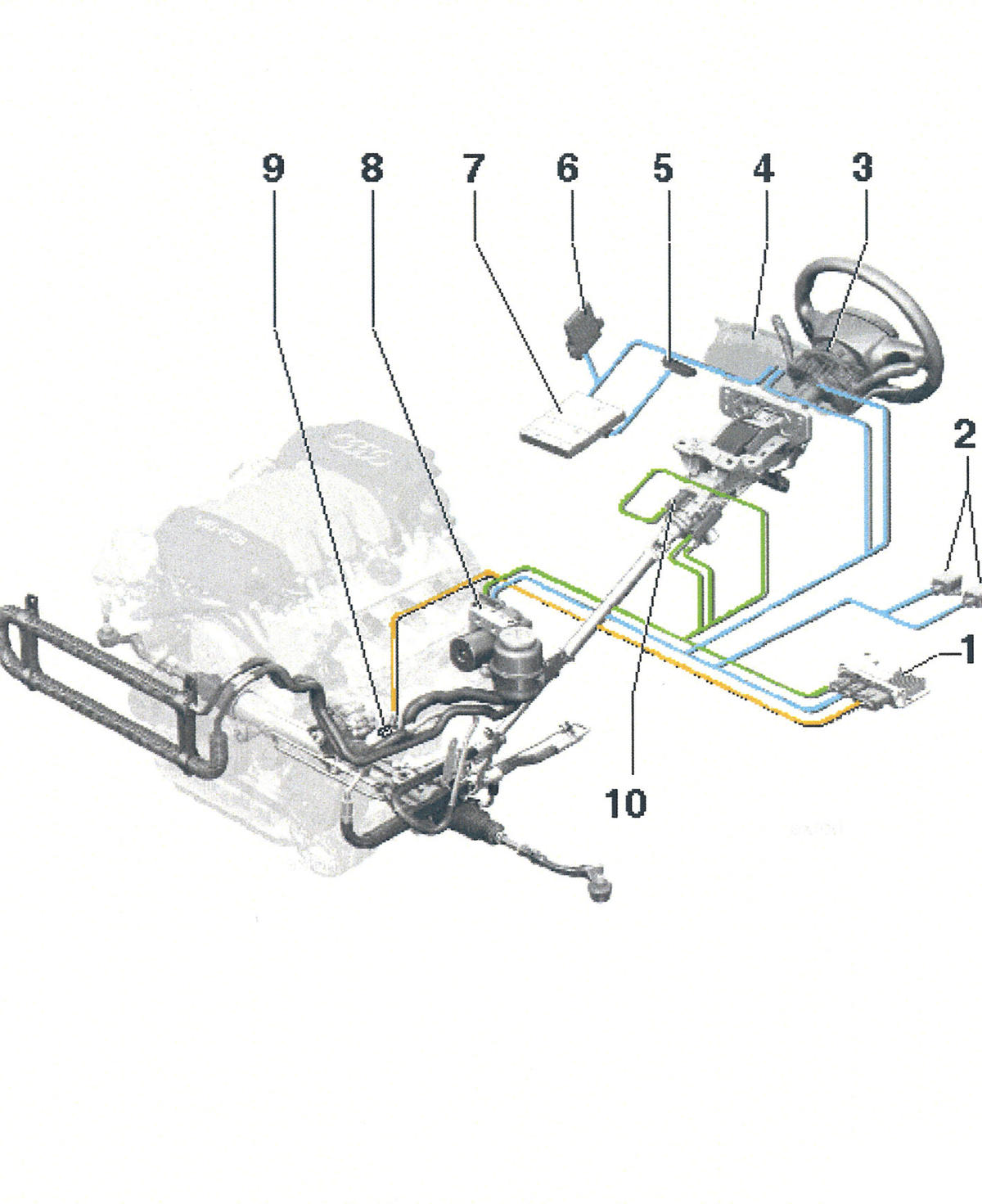

Fig 19: Steering Components

G00473997

Courtesy of AUDI OF AMERICA, INC.

Fig 20: Electronically Controlled Damping Assembly Overview

G00473998

Courtesy of AUDI OF AMERICA, INC.

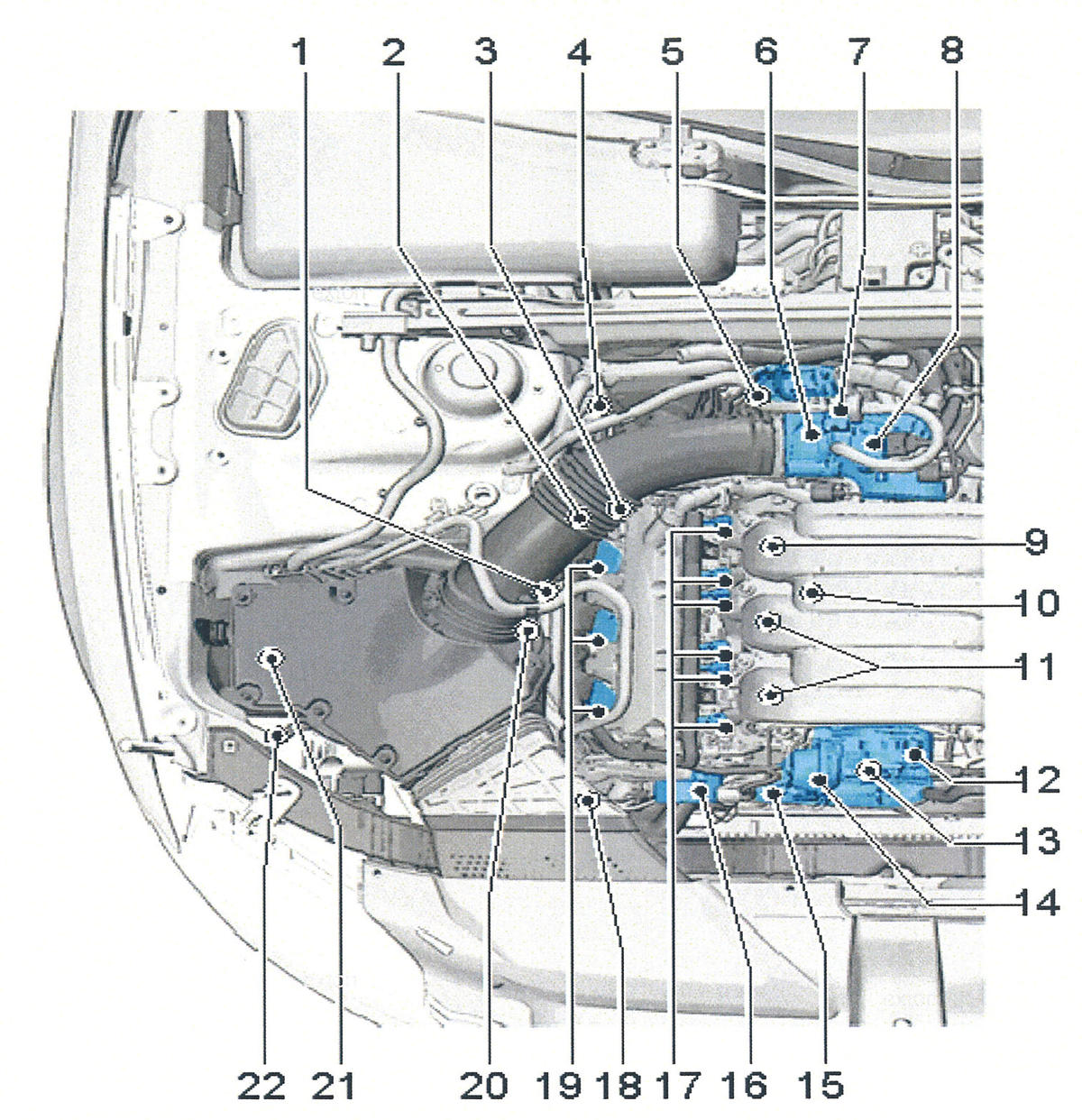

Fig 21: Right Side Of Engine Compartment

G00473999

Courtesy of AUDI OF AMERICA, INC.

Fig 22: Left Side Of Engine Compartment

G00474000

Courtesy of AUDI OF AMERICA, INC.

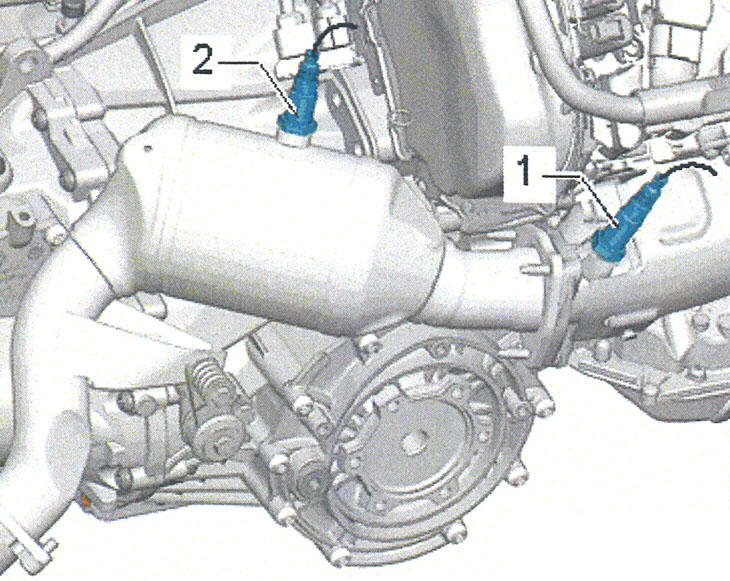

Fig 23: Right Rear Of Engine Compartment

G00474001

Courtesy of AUDI OF AMERICA, INC.

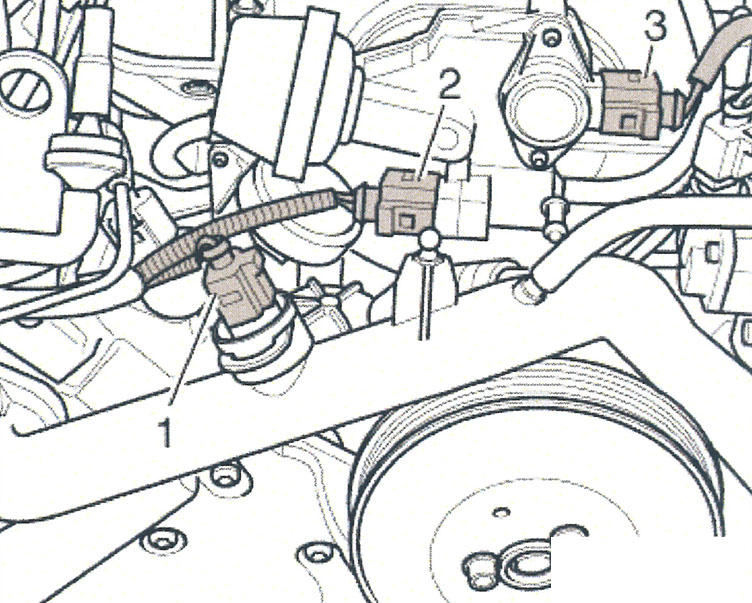

Fig 24: Front Of Engine

G00474002

Courtesy of AUDI OF AMERICA, INC.

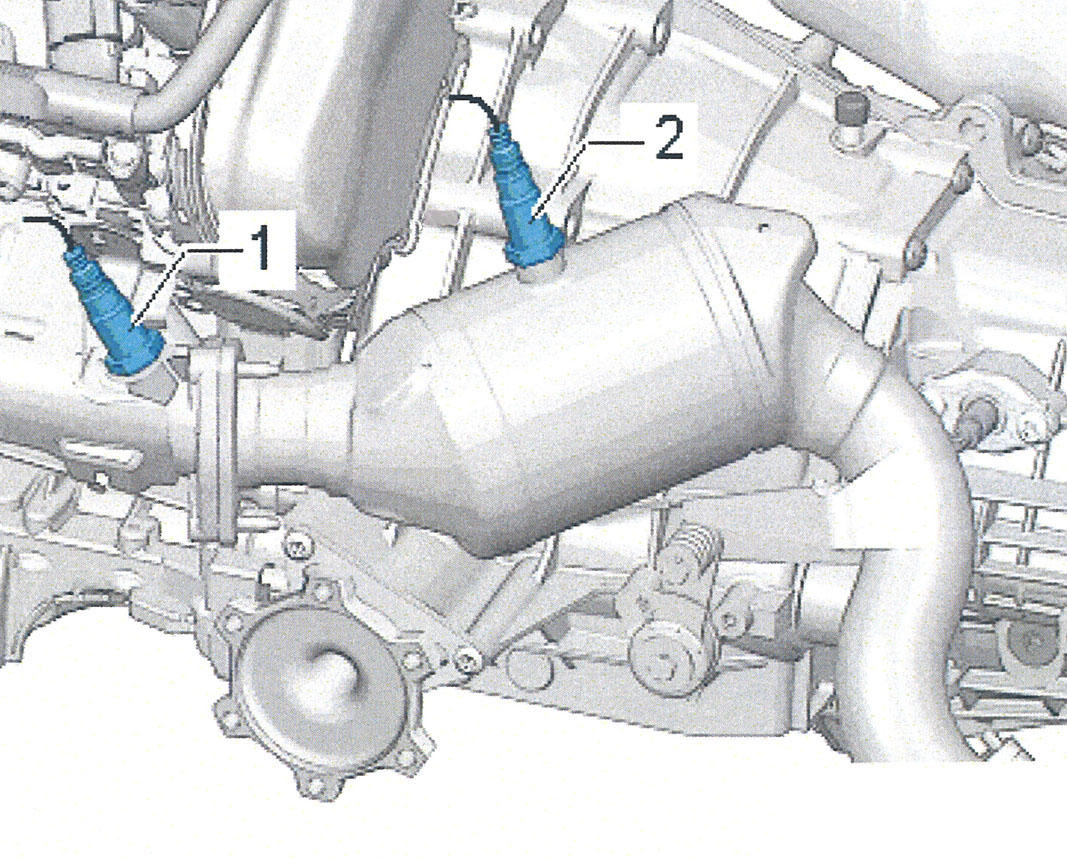

Fig 25: Left Rear Of Engine Compartment

G00474003

Courtesy of AUDI OF AMERICA, INC.

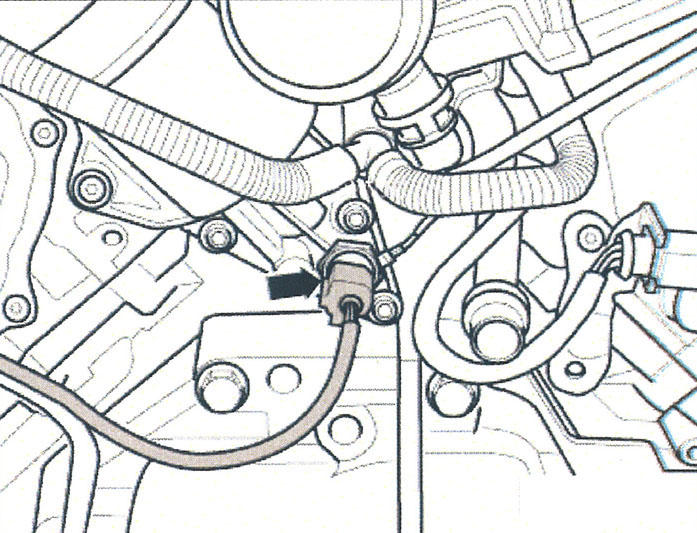

Fig 26: Rear Of Engine

G00474004

Courtesy of AUDI OF AMERICA, INC.

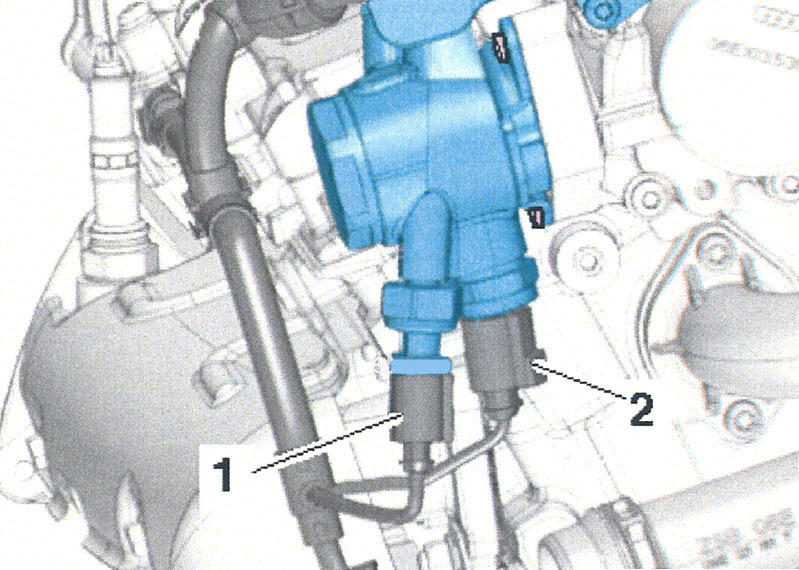

Fig 27: Right Rear Of Engine

G00474005

Courtesy of AUDI OF AMERICA, INC.

Fig 28: Lane Change Assist Component Overview

G00474006

Courtesy of AUDI OF AMERICA, INC.

Fig 29: Parking Assist Components Overview

G00474007

Courtesy of AUDI OF AMERICA, INC.

Fig 30: Tire Pressure Monitoring System Components

G00474008

Courtesy of AUDI OF AMERICA, INC.

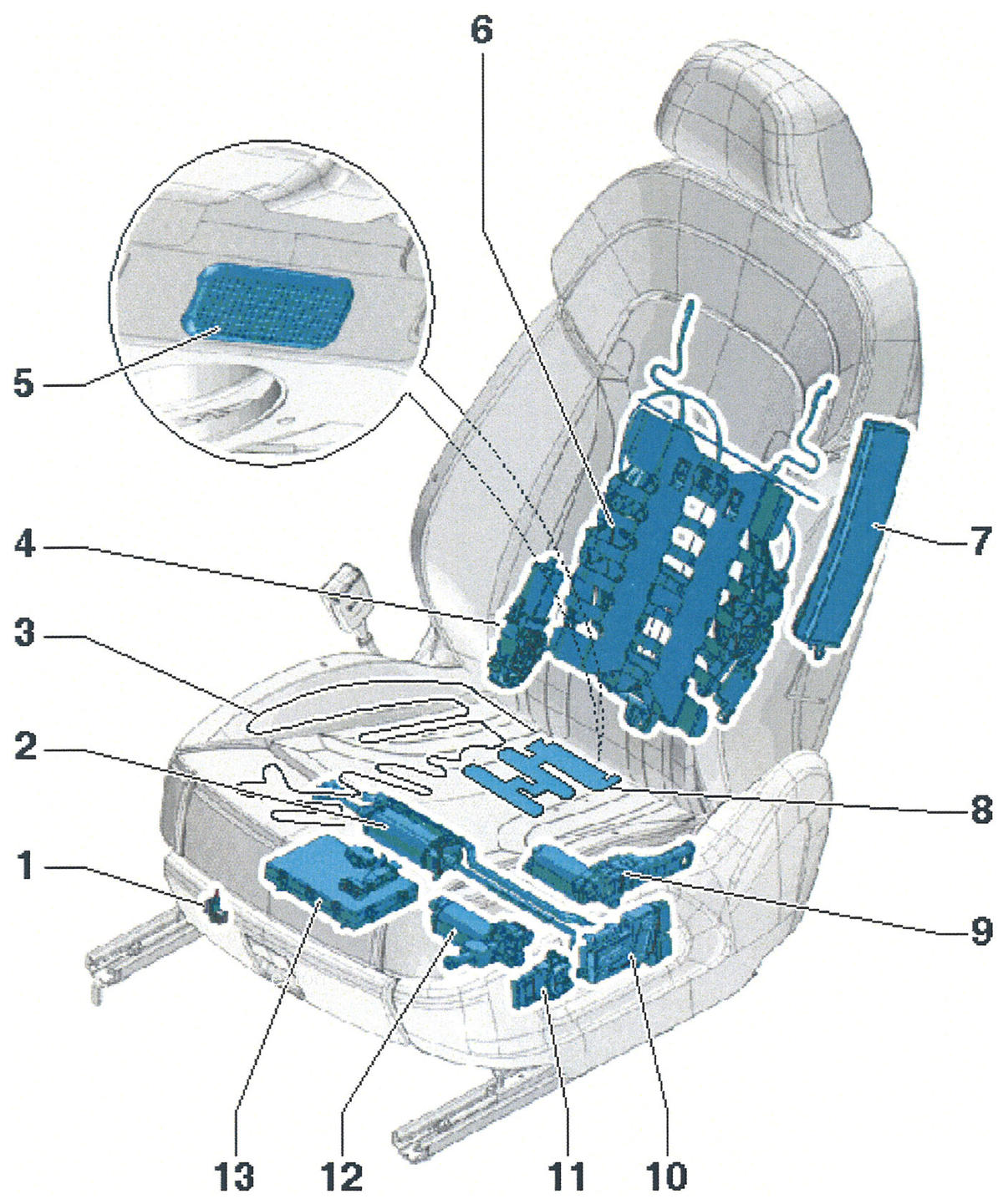

Fig 31: Memory Power Seat Overview

G00474009

Courtesy of AUDI OF AMERICA, INC.

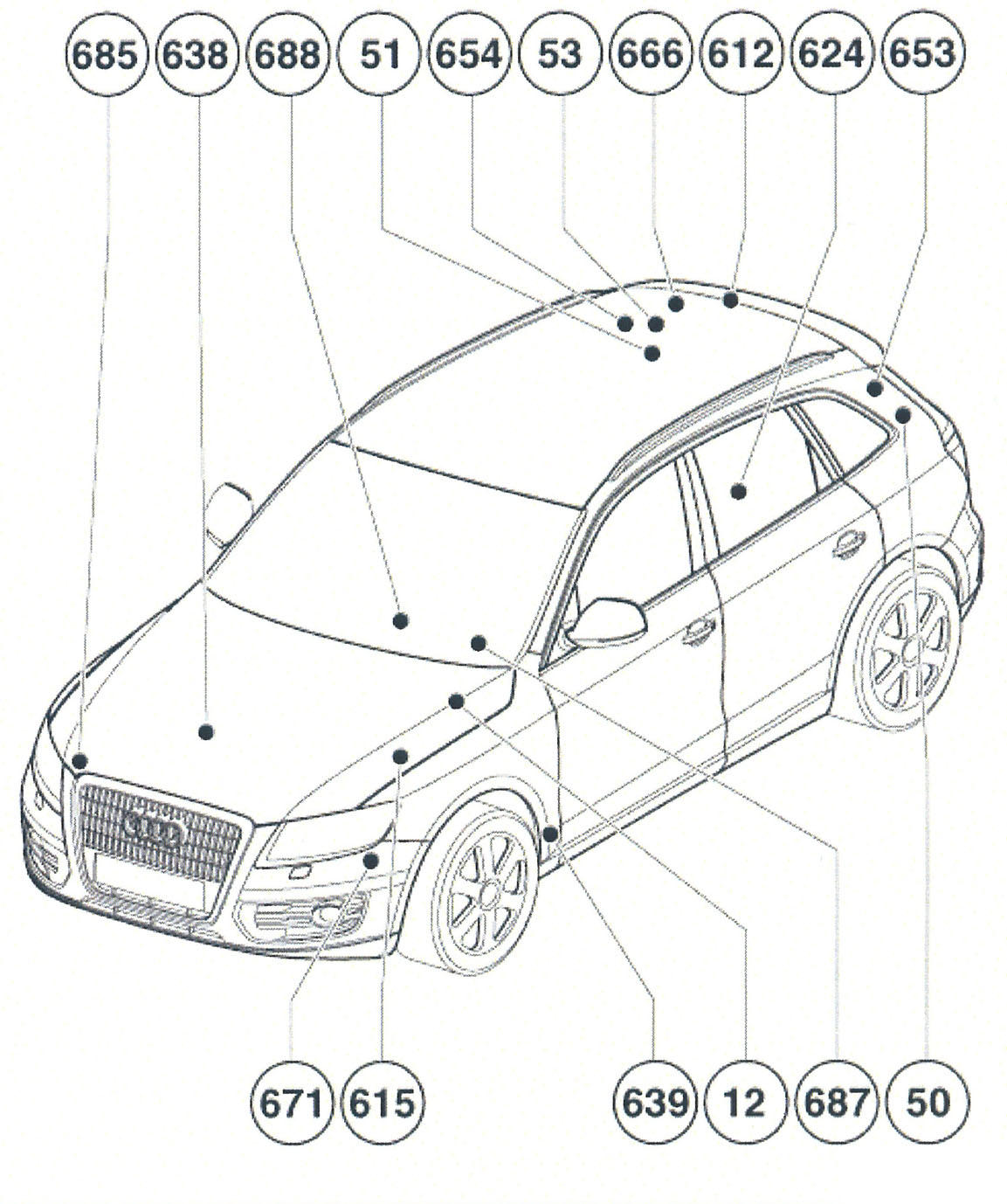

Fig 32: Overview Of Ground Connections

G00474010

Courtesy of AUDI OF AMERICA, INC.

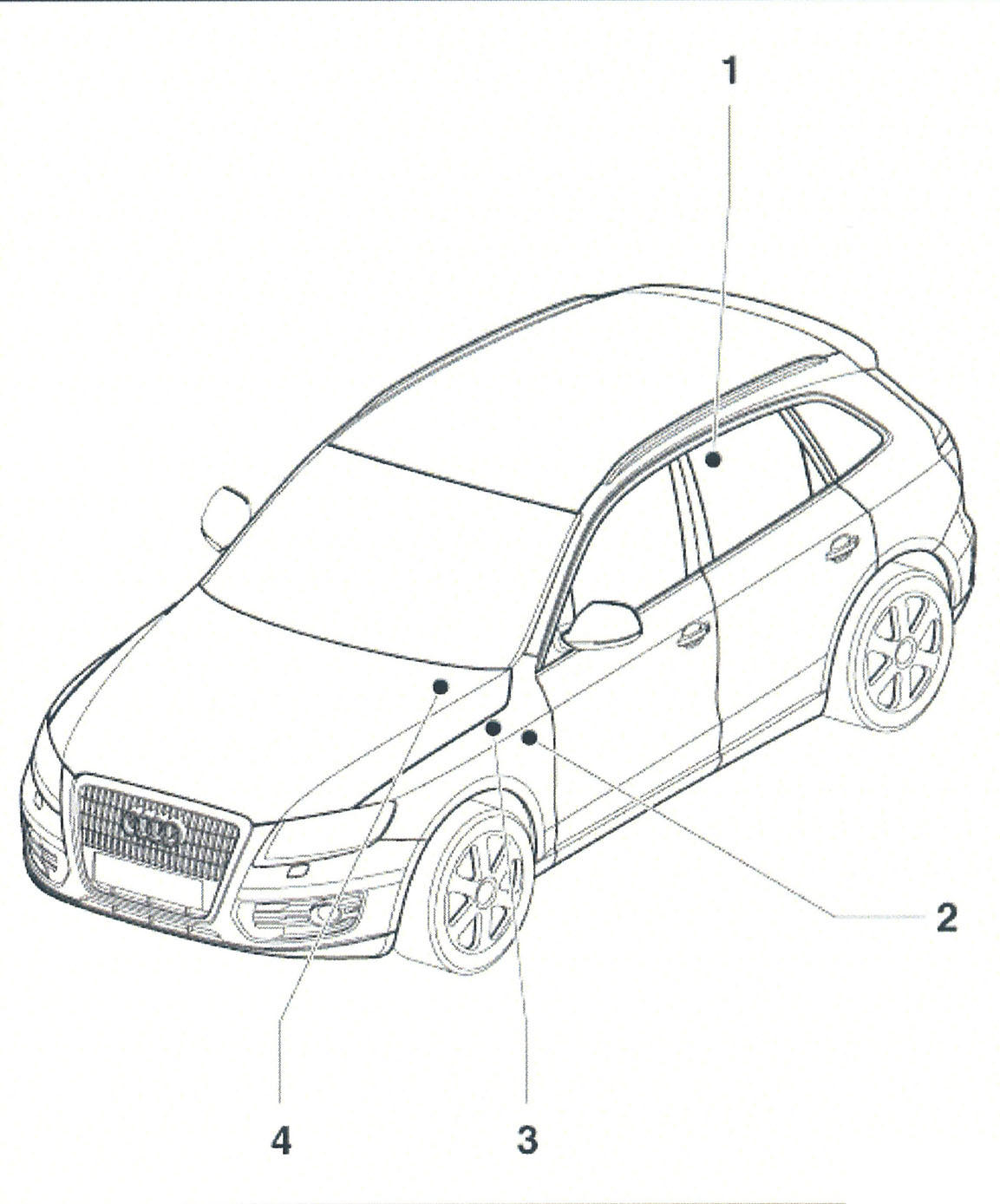

Fig 33: Relay Location Overview

G00474011

Courtesy of AUDI OF AMERICA, INC.

Fig 34: Relay Locations

G00474012

Courtesy of AUDI OF AMERICA, INC.

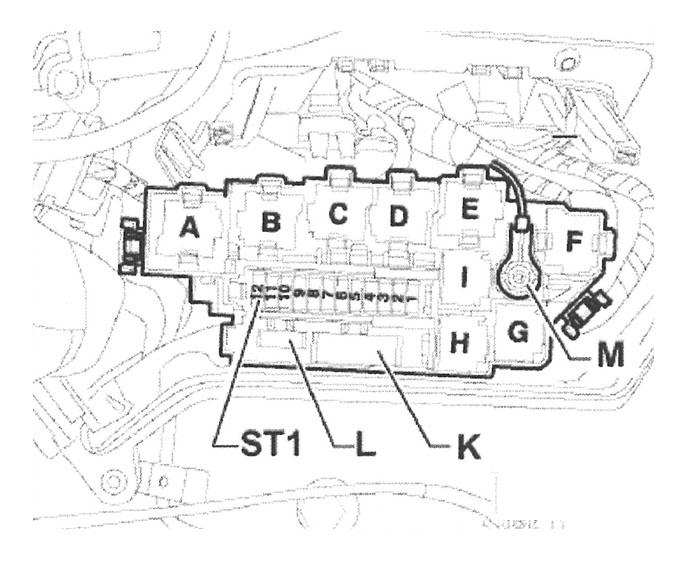

Fig 35: Relay Locations

G00474013

Courtesy of AUDI OF AMERICA, INC.

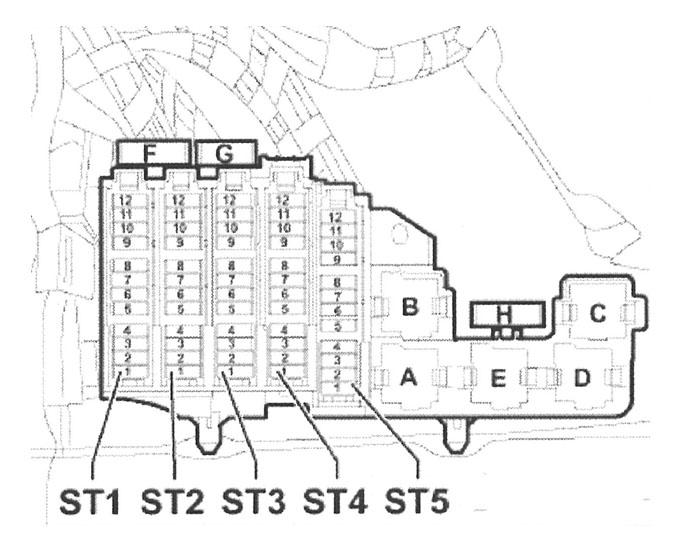

Fig 36: Relay Locations

G00474014

Courtesy of AUDI OF AMERICA, INC.
