Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component |
Location |

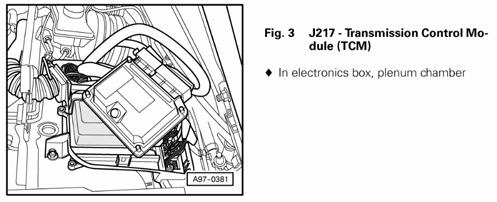

| E-Box (Plenum Chamber) |
Rear of engine compartment, in plenum chamber. See Figure. |

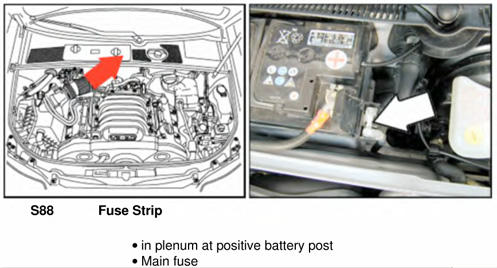

| Fuse Strip |
In plenum, at battery positive post. See Figure. |
| 9-Pin Carrier |
Behind driver's storage compartment. |
