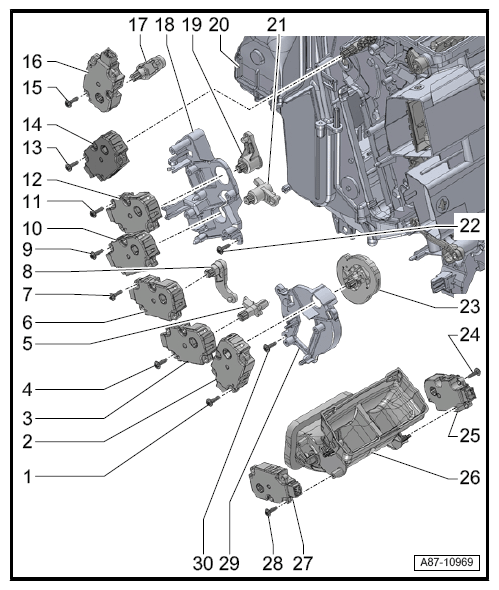

Plenum, Left
NOTE:
Air distribution image shown with deluxe version. Basic version is similar.
- 2 - Left rear air door motor -V239-
- 3 - Left rear temperature door motor -V313-
- 6 - Left footwell door motor -V108-
- 10 - Left side vent motor -V299-
- 12 - Left center vent motor -V110-
- 14 - Defroster door motor -V107-
- 16 - Left temperature door motor -V158-
- 25 - Right rear upper body vent motor -V316-
- 27 - Left rear upper body vent motor -V315-
