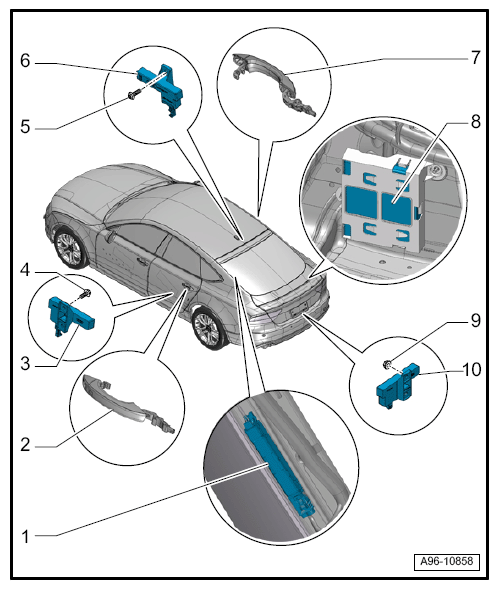

Keyless Entry, Rear
- 1 - Antenna amplifier 2 R111
- Located on the D-Pillar, top left
- 1 - Central locking and anti-theft alarm system antenna -R47-
- Located on the D-Pillar, top left
- 2 - Left rear exterior door handle touch sensor -G417-
- 3 - Left access/start authorization antenna -R200-
- 6 - Right access/start authorization antenna -R201-
- 7 - Right rear exterior door handle touch sensor -G418-
- 8 - Comfort system central control module J393
- 10 - Access/start authorization antenna 2 in vehicle interior -R139-
