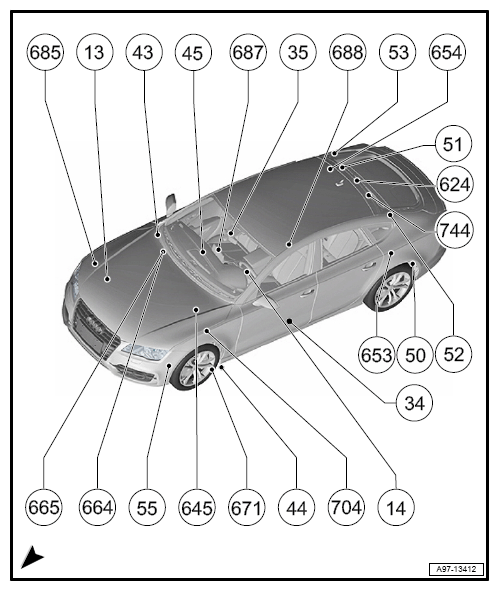

Comp. LOC. Grounds: Overview
- 685 - Ground Connection 1 (on right front long member) → Item 685
- 13 - Ground Connection (in engine compartment, right) → Item 13
- 43 - Ground Connection (on right lower A-pillar) → Item 43
- 45 - Ground Connection (behind instrument panel, center) → Item 45
- 687 - Ground Connection 1 (on center tunnel) → Item 687
- 35 - Ground Connection (below front passenger's seat) → Item 35
- 688 - Ground Connection 2 (on center tunnel) → Item 688
- 53 - Ground Connection (in rear lid, right) → Item 53
- 654 - Ground Connection (on right D-pillar) → Item 654
- 51 - Ground Connection (in luggage compartment, right) → Item 51
- 624 - Ground Connection (near starter battery) → Item 624
- 744 - Ground Connection in spare tire well → Item 744
- 52 - Ground Connection (in rear lid, left) → Item 52
- 50 - Ground Connection (in luggage compartment, left) → Item 50
- 653 - Ground Connection (on left D-pillar) → Item 653
- 34 - Ground Connection (below driver's seat) → Item 34
- 14 - Ground connection on transmission → Item 14
- 704 - Ground Connection 2 (below driver's seat) → Item 704
- 44 - Ground Connection (on left lower A-pillar) → Item 44
- 671 - Ground Connection 1 (on left front long member) → Item 671
- 645 - Ground connection 1 on bulkhead → Item 645
- 55 - Ground Connection beside ABS Control Module → Item 55
- 664 - Ground Connection (behind instrument panel, left) → Item 664
- 665 - Ground Connection (behind instrument panel, right) → Item 665
