Signal Horns

Removal

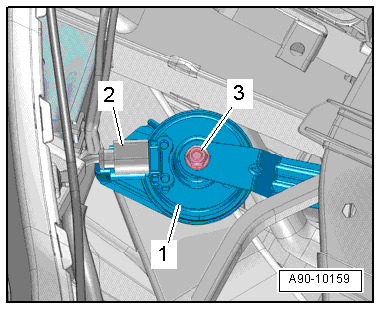

Fig 1: Identifying Horn And Nut

Courtesy of AUDI OF AMERICA, LLC

-- Remove the headlamp housing: HID headlamp, refer to HEADLAMP HOUSING , LED headlamp, refer to HEADLAMP HOUSING .

-- Remove the nut -3-.

-- Remove the horn -1- from the bracket.

-- Disconnect the electrical connector -2-.

Installation

• Tightening specification, refer to SIGNAL HORNS OVERVIEW .

Install in reverse order of removal, observing the following:

-- Install the headlamp housing: HID headlamp, refer to HEADLAMP HOUSING , LED headlamp, refer to HEADLAMP HOUSING .
