Connector Assignments

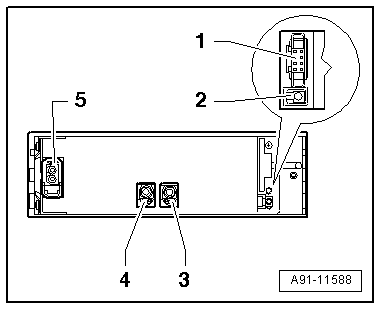

Fig 1: DVD Changer -R161-

Courtesy of AUDI OF AMERICA, LLC

1. 8-Pin Connector -T8e-
2. TV Tuner -R78- CVBS input
3. CVBS output to the Information Electronics Control Module 1 -J794-
4. FBAS OUT for Information Electronics Control Module 2 -J829-
5. MOST bus

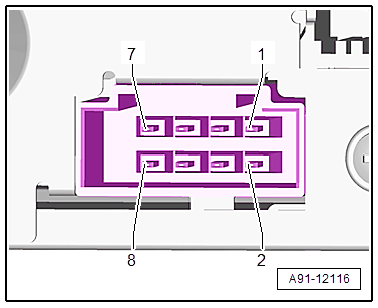

Fig 2: 1 - 8-Pin Connector -T8g-

Courtesy of AUDI OF AMERICA, LLC

1 - Terminal 31

2 - Terminal 30

5 - Ring-break Diagnostic Cable

Fig 3: 2 - MOST Bus

Courtesy of AUDI OF AMERICA, LLC

1. IN
2. OUT
