Component Location Overview - Infrared System

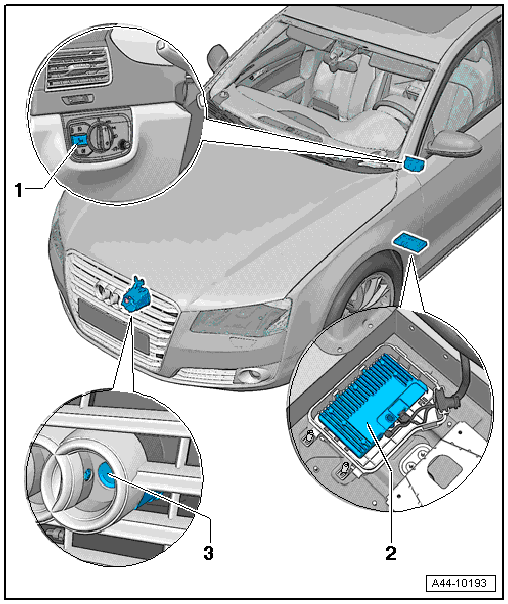

Fig 1: Component Location Overview Of Infrared System

Courtesy of AUDI OF AMERICA, LLC

1. Light Switch -E1- with Night Vision System Button -E680-
   • Removing and installing, refer to[For engine(s) CDRA,CTUB,CEUA,CGTA,CPNA,CEJA] ControlsConnector Assignment on Trailer Hitch Socket
2. Night Vision System Control Module -J853-
   • Component location in front left footwell
   • Removing and installing, refer to NIGHT VISION SYSTEM CONTROL MODULE, REMOVING AND INSTALLING .
3. Night Vision System Camera -R212-
   • Removing and installing, refer to NIGHT VISION SYSTEM CAMERA, REMOVING AND INSTALLING .
   • Calibration, refer to Infrared System .
