Component Location Overview - Peripheral Camera
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

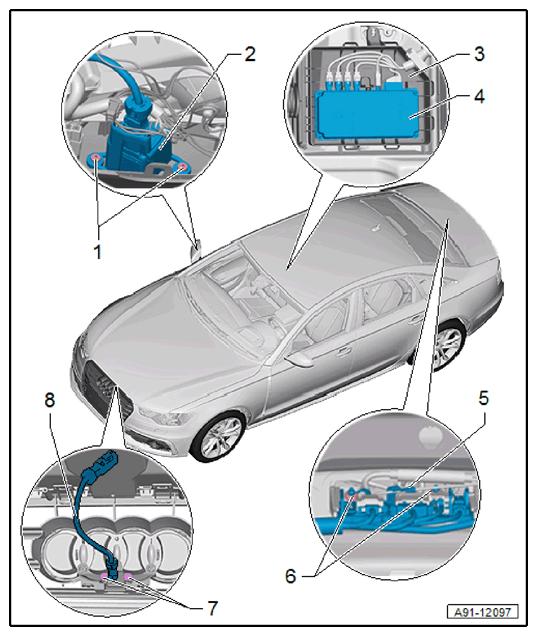

- Bolt
- 2 Nm
- Quantity: 2
- Right Peripheral Camera -R245-/Left Peripheral Camera -R244-
- Removing and installing. Refer to Exterior Rearview Mirror; Overview.
- Calibrating. Refer to Peripheral Camera System, Calibrating . -->
- E-Box
- Peripheral Camera Control Module -J928-
- Connector Assignment. Refer to Wiring diagrams, Troubleshooting & Component locations.
- Removing and installing. Refer to Peripheral Camera Control Module -J928-, Removing and Installing . -->
- Calibrating. Refer to Peripheral Camera System, Calibrating .
- Rear Peripheral Camera -R246-
- Sedan, removing and installing. Refer to Peripheral Camera System, Calibrating .
- Avant, removing and installing. Refer to Rear Peripheral Camera - R246-, Removing and Installing .
- Calibrating. Refer to Peripheral Camera System, Calibrating .
- Nut
- 3 Nm
- Quantity: 2
- Bolt
- 3 Nm
- Quantity: 2
- Front Peripheral Camera - R243-
- Removing and installing. Refer to Peripheral Camera System, Calibrating .
- Calibrating. Refer to Peripheral Camera System, Calibrating .
No Illustration
- Bumper cover end plate screws: 3 Nm
