Overview - Peripheral Camera System
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
The peripheral camera system (KA6) consists of four cameras.
They are located in the radiator grille, in both side exterior mirrors and in the rear lid. The system helps the driver when parking, maneuvering or when driving off-road. The camera images are displayed on the Front Information Display Control Head - J685-.
Camera Views That Can Be Selected:
- Bird's-eye view: the images from all 4 cameras (Front Peripheral Camera - R243-/Left Peripheral Camera - R244-/Right Peripheral Camera - R245-/Rear Peripheral Camera - R246-) show the view around the entire vehicle.
- Front camera (front view): the image from the camera inside the front bumper cover (Front Peripheral Camera - R243-) shows the area in front of the vehicle (up to the left and right corners of the bumper).
- Side cameras (side view): the images from the cameras inside the left and right exterior rearview mirrors (Left Peripheral Camera - R244-/Right Peripheral Camera - R245-) show the side areas next to the vehicle.
- Rear camera (rear view): the image from the camera in the rear lid (Rear Peripheral Camera - R246-) shows the area behind the vehicle.
Peripheral camera system components:
- Front Peripheral Camera - R243-
- Left Peripheral Camera - R244-
- Right Peripheral Camera - R245-
- Rear Peripheral Camera - R246-
- Peripheral Camera Control Module - J928-
- Information Electronics Control Module 1 - J794-
Other control modules may be installed as optional equipment.
Installing an additional license is not permitted on vehicles with the peripheral camera system because it will impair the system.
Fault Finding is performed using the "Guided Fault Finding". Refer to Vehicle Diagnostic Tester.

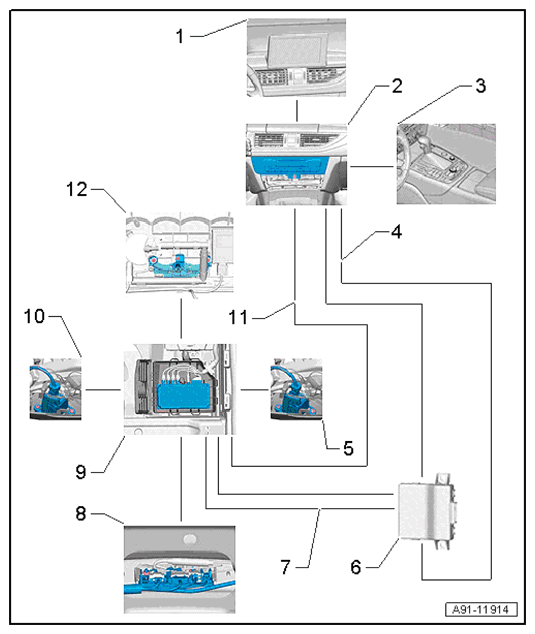

- Front Information Display Control Head - J685- in Center of the Instrument Panel
- Information Electronics Control Module 1 - J794- Inside the Instrument Panel
- Multimedia System Control Head - E380- in the Center Console
- MOST Bus
- Right Peripheral Camera -R245- in the Right Exterior Mirror
- Data Bus On Board Diagnostic Interface - J533- under the Rear Bench Seat
- CAN bus, Instrument Cluster
- Rear Peripheral Camera -R246- inside the Rear Lid
- Peripheral Camera Control Module - J928- under the Right Front Seat
- Left Peripheral Camera -R244- in the Left Exterior Mirror
- CVBS cable from the Peripheral Camera Control Module - J928-
- Front Peripheral Camera -R243- in the Center of the Front Bumper Cover
