Special Tools

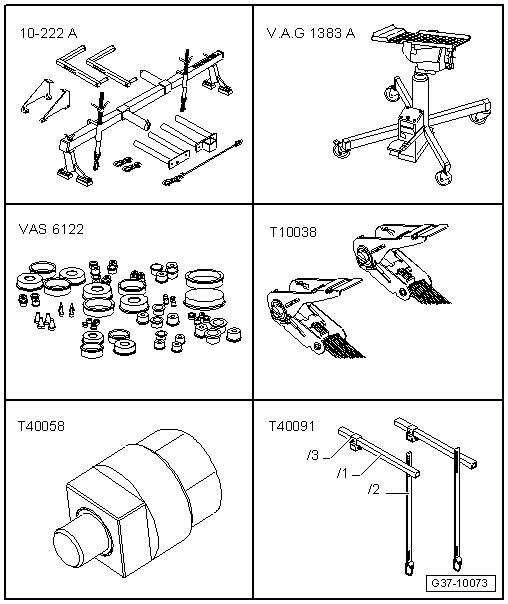

Special tools and workshop equipment required

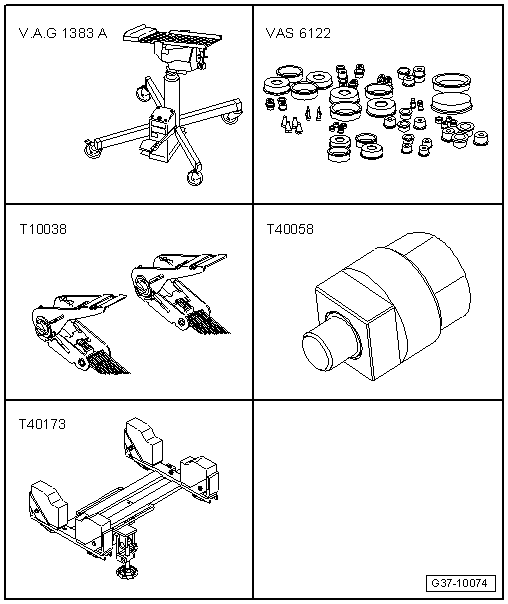

• Engine Support Bridge:10-222A  for AWD vehicles
• Engine and Gearbox Jack:VAS6931
• Engine Bung Set:VAS6122
• Tensioning Strap:T10038  for AWD vehicles
• Crankshaft Socket:T40058
• Engine Support - Basic Set:T40091  for AWD vehicles

Special tools and workshop equipment required

• Engine and Gearbox Jack:VAS6931
• Engine Bung Set:VAS6122
• Tensioning Strap:T10038
• Crankshaft Socket:T40058
• Gearbox Support:T40173

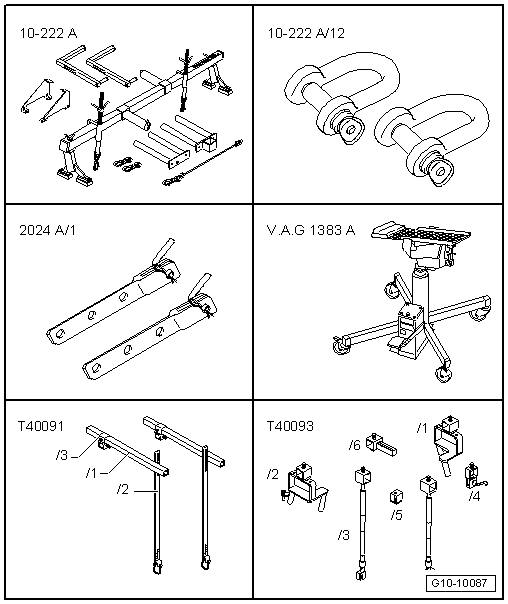

Special tools and workshop equipment required

• Engine Support Bridge:10-222A
• Engine/Gearbox Support Shackle (2 pc.):10-222A/12
• Engine Sling - Engine Bracket :2024 A /1
• Engine and Gearbox Jack:VAS6931
• Engine Support - Basic Set:T40091
• Engine Support - Supplement Kit:T40093A  with Engine Support Brackets:T40093/7  , Engine Support Brackets:T40093/8

Special tools and workshop equipment required

• Engine and Gearbox Jack:VAS6931
• Engine Bung Set:VAS6122
• Tensioning Strap:T10038
• Gearbox Support:T40173
• Wrench - 21mm:T40263
• Crankshaft Turning Tool:T40272

Special tools and workshop equipment required

• Used Oil Collection and Extraction Unit:SMN372500

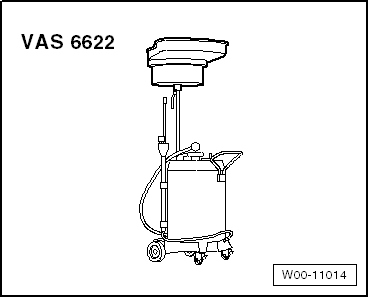

  Fig 5: Identifying Used Oil Collection And Extraction Device VAS 6622

  Courtesy of AUDI OF AMERICA, LLC

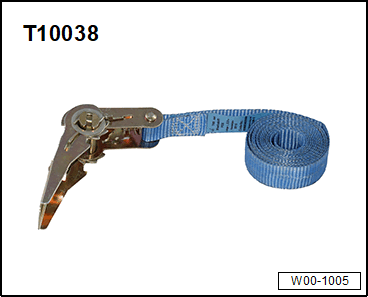

• Tensioning Strap:T10038
  Fig 6: Identifying Special Tools -- Tensioning Belt T10038

  Courtesy of AUDI OF AMERICA, LLC

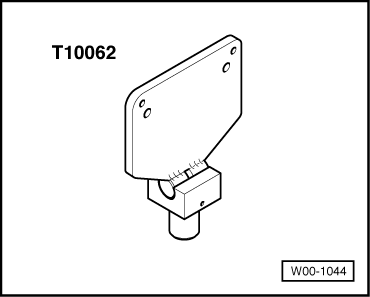

• Engine/Gearbox Jack Adapter - Support Plate:T10062  for FWD vehicles
  Fig 7: Support T10062

  Courtesy of AUDI OF AMERICA, LLC
• Bits for VAG1331/13:T10099
  Fig 8: Bits T10099

  Courtesy of AUDI OF AMERICA, LLC
• Counterhold - Multiple Use:T10172A  with Counterhold - Kit - Adapter 2:T10172/2

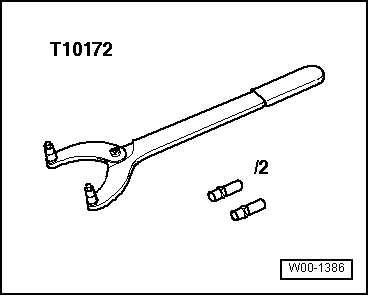

  Fig 9: Counter-Holder Tool T10172

  Courtesy of AUDI OF AMERICA, LLC

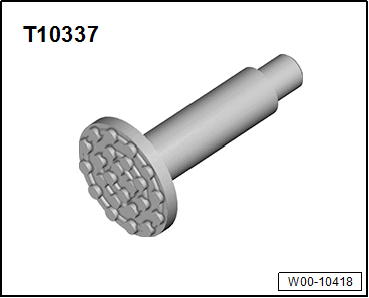

• Engine/Gearbox Jack - Gearbox Support:T10337  for AWD vehicles
  Fig 10: Engine/Gearbox Jack - Gearbox Support T10337

  Courtesy of AUDI OF AMERICA, LLC

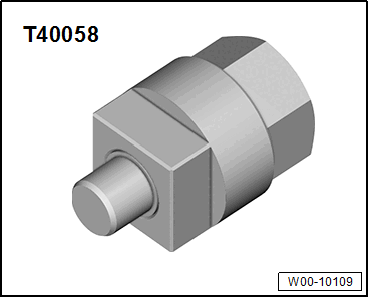

• Crankshaft Socket:T40058
  Fig 11: Adapter (Socket) T140058

  Courtesy of AUDI OF AMERICA, LLC

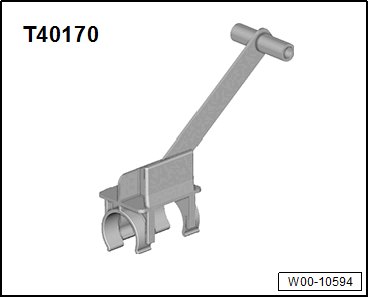

• Clutch Module Transportation Lock:T40170
  Fig 12: Clutch Module Transportation Lock T40170

  Courtesy of AUDI OF AMERICA, LLC
• Crankshaft Turning Tool:T40257

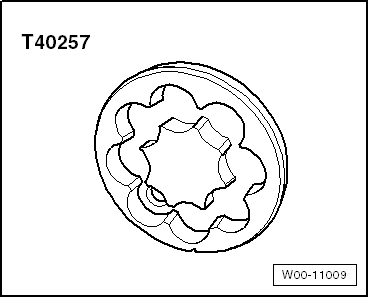

  Fig 13: Crankshaft Turning Tool T40257

  Courtesy of AUDI OF AMERICA, LLC

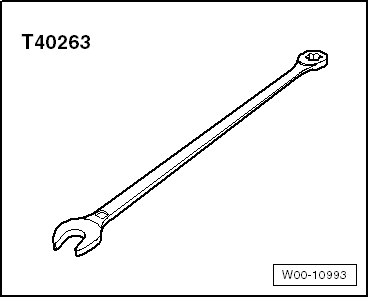

• Wrench - 21mm:T40263
  Fig 14: Identifying Wrench 21 mm T40263

  Courtesy of AUDI OF AMERICA, LLC

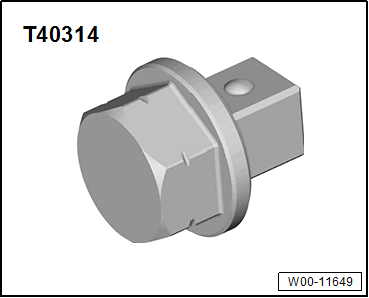

• Adapter:T40314
  Fig 15: Adapter T40314

  Courtesy of AUDI OF AMERICA, LLC
• Torque Wrench 1331 5-50Nm:VAG1331
  Fig 16: Identifying Torque Wrench

  Courtesy of AUDI OF AMERICA, LLC
• Torque Wrench 1331 Insert - Ring Wrench - 10mm:VAG1331/13
• Torque Wrench 1332 Insert - Ring Wrench - 16mm:VAG1332/14

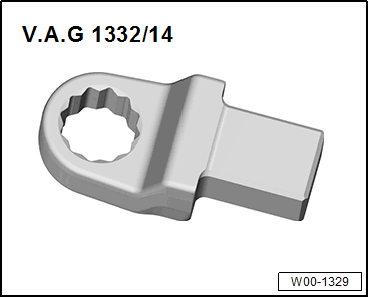

  Fig 17: Identifying Ring Spanner Insert AF 16 VAG 1332/14

  Courtesy of AUDI OF AMERICA, LLC

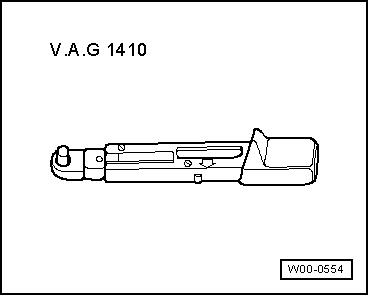

• Torque Wrench 1410:VAG1410
  Fig 18: Identifying Torque Wrench VAG 1410

  Courtesy of AUDI OF AMERICA, LLC
• Torque Screwdriver:VAG1624

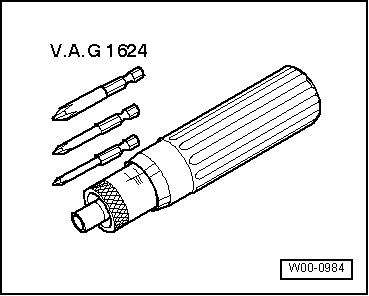

  Fig 19: Identifying Torque Screwdriver VAG 1624 (Or Locally Available Equivalent)

  Courtesy of AUDI OF AMERICA, LLC

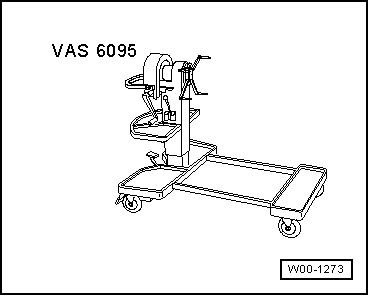

• Engine And Transmission Holder:VAS6095
  Fig 20: Engine And Transmission Holder VAS 6095

  Courtesy of AUDI OF AMERICA, LLC

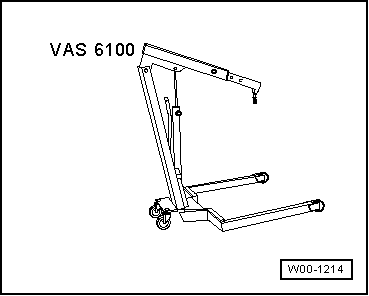

• Shop Crane:VAS6100
  Fig 21: Identifying Shop Crane VAS 6100

  Courtesy of AUDI OF AMERICA, LLC

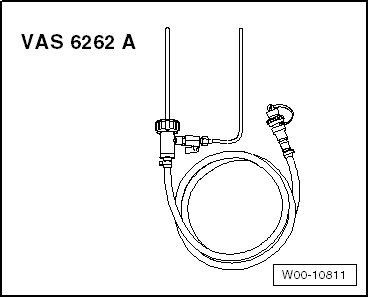

• Oil Filler:VAS6262A
  Fig 22: Adapter For Oil Filling VAS 6262 A

  Courtesy of AUDI OF AMERICA, LLC
• Oil Filler - Jointed Hose:VAS6262/5
• If necessary, Oil Filler - Adapter 6:VAS6262/6

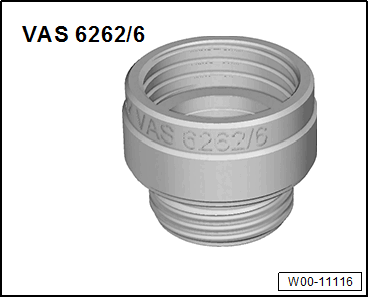

  Fig 23: Adapter For Oil Filling 6 VAS 6262/6

  Courtesy of AUDI OF AMERICA, LLC

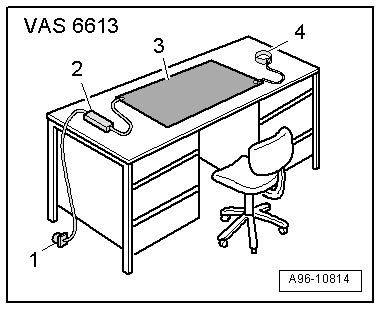

• ESD Work Surface:VAS6613
  Fig 24: Identifying Electro-Static Discharge Work Surface VAS 6613

  Courtesy of AUDI OF AMERICA, LLC

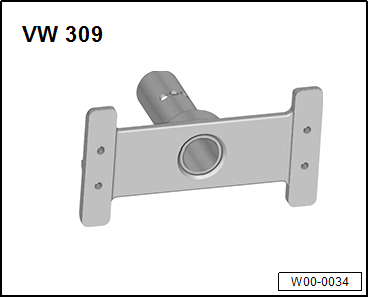

• Holding Plate :VW309
  Fig 25: Holding Plate VW 309

  Courtesy of AUDI OF AMERICA, LLC
• Hose Clamps - Up To 25 mm:3094
  Fig 26: 3094 Hose Clamps

  Courtesy of AUDI OF AMERICA, LLC

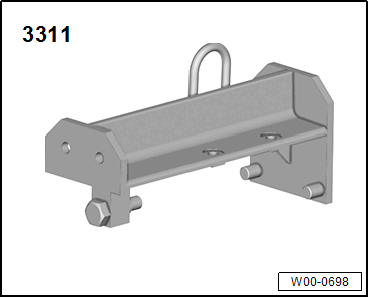

• Hook And Support Tool:3311  with Hook And Support Tool - Bolt:3311/1
  Fig 27: Hook And Support Tool 3311 With Bolt 3311/1

  Courtesy of AUDI OF AMERICA, LLC
• Inner TORX®, size T6
• Commercially available torque wrench with 0.25 Nm torque, for example, made by Stahlwille, No. 775/12, range 0.2 - 1.2 Nm
