Windshield Projection Head Up Display Control Module, Calibrating

Special tools and workshop equipment required

• Vehicle Diagnostic Tester
• Calibration Board for Head-Up Display VAS721003: VAS721003

Conditions

-- The windshield projection control module must be calibrated during the following conditions:

• The Windshield Projection Head Up Display Control Module -J898- was replaced.
• The windshield was removed and installed.
• "No or incorrect basic setting/adaptation" is stored in the DTC memory.

Preliminary Work

-- Move the vehicle onto a secure flat surface.

-- Apply the parking brake - the vehicle must not move during the measurement.

-- Fold down the left and right sun visors, disengage them and move them to the side.

Courtesy of AUDI OF AMERICA, LLC

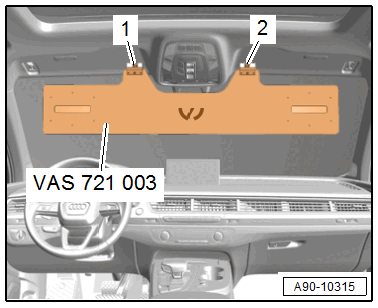

-- Engage the Calibration Board for Head-Up Display VAS721003: VAS721003  on the center support -1 and 2- for the sun visor.

Calibrating

• The Vehicle Diagnostic Tester is connected.

-- Select the Diagnostic  mode and start.

-- Select the Test plan  tab.

-- Press the Select individual tests  button and select the following one after the other:

• Body
• Electrical Equipment
• 01 - OBD-capable systems
• 82 - Windshield Projection Head Up Display Control Module - J898
• 82 - Windshield projection control module, function
• 82 - Calibrating the head up display

-- Start the selected program and follow the instructions in the Vehicle Diagnostic Tester display.

-- After calibrating the windshield projection head up control module successfully, end "calibration", turn off the ignition and disconnect the data link connector.
