Windshield Projection Head Up Display Control Module, Removing And Installing: Removing

Courtesy of AUDI OF AMERICA, LLC

-- Cover the control module -2- with a soft towel.

-- Remove the windshield. Refer to WINDSHIELD, REMOVING AND INSTALLING .

-- Remove the windshield projection trim. Refer to OVERVIEW - INSTRUMENT PANEL .

CAUTION:

Risk of destroying the windshield projection head up display control module

- Only remove the designated bolts from the control module.

- Never remove the bolts for the housing upper section.

-- Remove the bolts -1, 3 and 4-.

-- Lift the control module slightly and disconnect the connector.

-- Remove the control module.

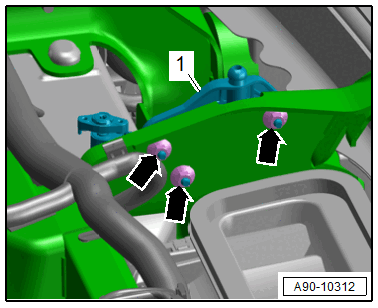

Removing the Exterior Bracket

-- Remove the instrument panel. Refer to INSTRUMENT PANEL, REMOVING AND INSTALLING .

-- Remove the nuts -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bracket -1-.

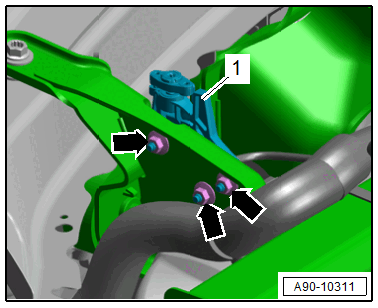

Removing the Inner Bracket

-- Remove the instrument panel. Refer to INSTRUMENT PANEL, REMOVING AND INSTALLING .

-- Remove the nuts -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bracket -1-.
