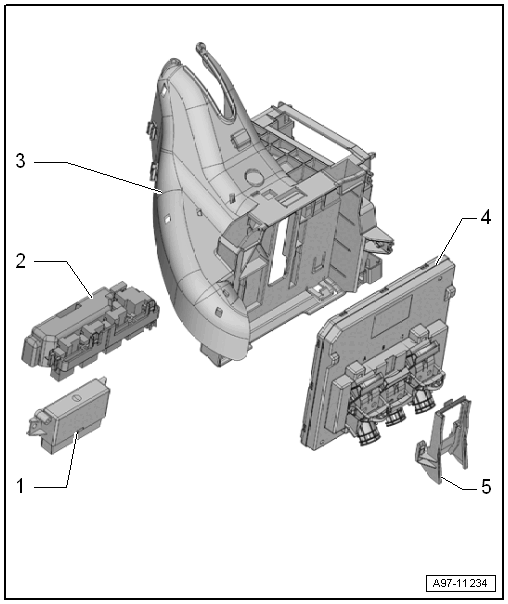

Overview - Control Modules
- Control Module
Vehicle Equipment Version with Parking Aid
- Parking Aid Control Module -J446-
- Overview. Refer to OVERVIEW - PARKING AID
.
Vehicle Equipment Version with Parallel Parking Assistance
- Parallel Parking Assistance Control Module -J791-
- Overview. Refer to OVERVIEW - PARALLEL PARKING ASSIST .
- Bracket
- For the control module
- Overview. Refer to OVERVIEW - RELAY CARRIERS, FUSE CARRIERS AND E-BOX .
- Bracket
- For vehicle electrical system control module
- Overview. Refer to OVERVIEW - RELAY CARRIERS, FUSE CARRIERS AND E-BOX .
- Vehicle Electrical System Control Module -J519-
- Removing and installing. Refer to Vehicle Electrical System Control Module -J519-, REMOVING AND INSTALLING .
- Guide
- For the center connector
