Component Location Overview - Control Modules

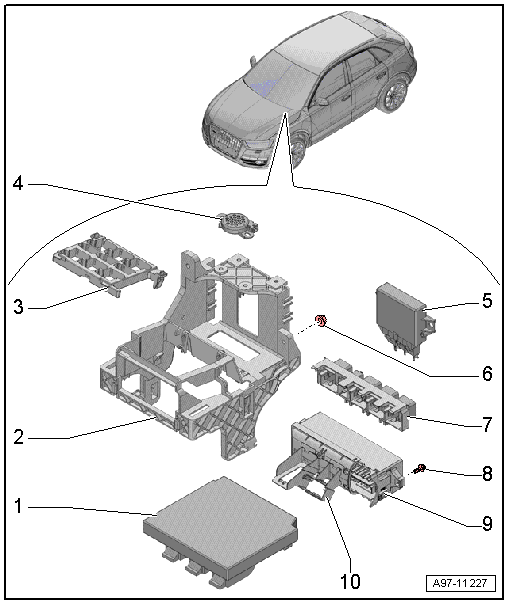

Fig 1: Control Modules Component Location

Courtesy of AUDI OF AMERICA, LLC

1. Vehicle Electrical System Control Module -J519-
   • Removing and installing. Refer to Vehicle Electrical System Control Module -J519-, REMOVING AND INSTALLING .
2. Mount
   • For the relay and fuse panel control module
3. Relay Carrier under Left Instrument Panel
4. Front Parking Aid Warning Buzzer -H22-
   • Overview. Refer to OVERVIEW - PARKING AID .
5. Vehicle Positioning System Interface Control Module -J843-
   • Removing and installing. Refer to Central Locking .
6. Nut
   • Tightening specification. Refer to OVERVIEW - INSTRUMENT PANEL RELAY CARRIER/FUSE CARRIER AND A-PILLAR RELAY CARRIER/FUSE CARRIER .
   • Quantity: 2
7. Vehicle Electrical System Control Module Relay Panel
   • Removing and installing. Refer to RELAY CARRIER ON VEHICLE ELECTRICAL SYSTEM CONTROL MODULE, REMOVING AND INSTALLING .
8. Bolt
   • Tightening specification. Refer to OVERVIEW - INSTRUMENT PANEL RELAY CARRIER/FUSE CARRIER AND A-PILLAR RELAY CARRIER/FUSE CARRIER .
   • Quantity: 2
9. Fuse Panel C -SC-
   • Overview. Refer to OVERVIEW - INSTRUMENT PANEL RELAY CARRIER/FUSE CARRIER AND A-PILLAR RELAY CARRIER/FUSE CARRIER .
10. Mount
    • For 16-Pin Connector -T16-
