Chip Card Reader Control Module, Removing And Installing: Removing

-- Turn off the ignition and all electrical equipment and remove the ignition key.

-- Open the glove compartment.

-- Remove the chip card from the Chip Card Reader Control Module -J676-.

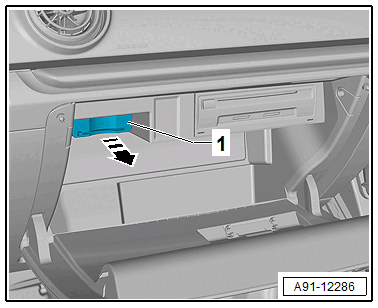

-- Slide the Chip Card Reader Control Module -J676- -1- back in the direction of -arrow- until it can be removed from the trim.

Courtesy of AUDI OF AMERICA, LLC

-- Release and disconnect the connectors from the Chip Card Reader Control Module -J676- -1-.

-- Remove the Chip Card Reader Control Module -J676-.
