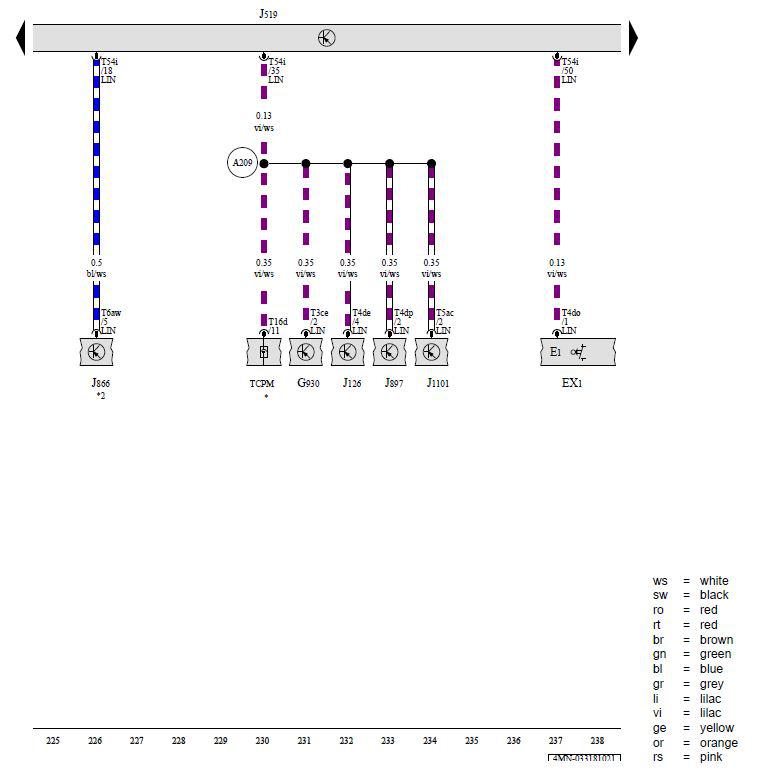

Rotary Light Switch, A/C System Particulate Matter Concentration Sensor, Fresh Air Blower Control Module, Vehicle Electrical System Control Module, Power Adjustable Steering Column Control Module, Ionizer Control Module, Fragrance Diffuser System Control Module
E1 - Light Switch
EX1 - Rotary Light Switch
G930 - A/C System Particulate Matter Concentration Sensor
J126 - Fresh Air Blower Control Module
J519 - Vehicle Electrical System Control Module
J866 - Power Adjustable Steering Column Control Module
J897 - Ionizer Control Module
J1101 - Fragrance Diffuser System Control Module
T3ce - 3-Pin Connector, Blue
T4de - 4-Pin Connector, Black
T4do - 4-Pin Connector, Red
T4dp - 4-Pin Connector, Black
T5ac - 5-Pin Connector, Black
T6aw - 6-Pin Connector, Brown
T16d - 16-Pin Connector, Black
T54i - 54-Pin Connector, Black
TCPM - Coupling Point on Instrument Panel, Center
A209 - LIN Bus Connection 1 (in Instrument Panel Wiring Harness)
* - Refer to Applicable A/C System Wiring Diagram
*2 - Refer to Applicable Power Steering Column Adjustment Wiring Diagram
