Overview - Control Modules

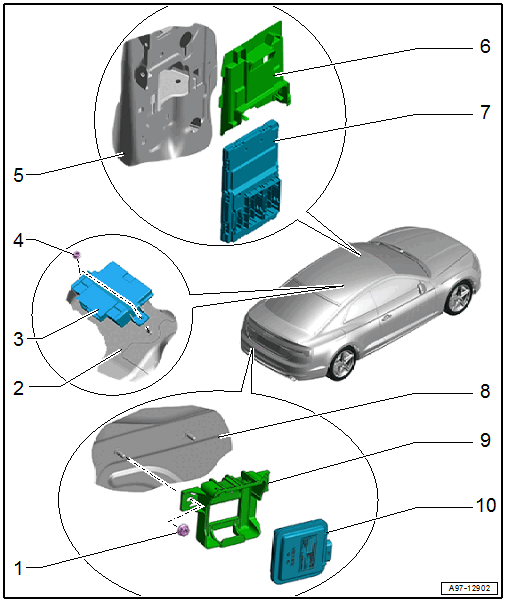

Fig 1: Exploded View Of Control Modules

Courtesy of AUDI OF AMERICA, LLC

Nut
- 2 Nm
- Quantity: 2
Body
Data Bus on Board Diagnostic Interface -J533-
- There are different versions. Refer to the Parts Information.
- Overview. Refer to OVERVIEW - DATA BUS ON BOARD DIAGNOSTIC INTERFACE .
Nut
- Tightening specification. Refer to OVERVIEW - DATA BUS ON BOARD DIAGNOSTIC INTERFACE .
- Quantity: 2
Left A-Pillar
Mount
- For Vehicle Electrical System Control Module -J519-
- Removing and installing. Refer to Vehicle Electrical System Control Module -J519- MOUNT, REMOVING AND INSTALLING .
Vehicle Electrical System Control Module -J519-
- Removing and installing. Refer to Vehicle Electrical System Control Module -J519-, REMOVING AND INSTALLING .
Body
Bracket
- For Garage Door Opener Control Module -J530-
Garage Door Opener Control Module -J530-
- Removing and installing. Refer to GARAGE DOOR OPENER CONTROL MODULE, REMOVING AND INSTALLING .
