Component Location Overview - Control Modules

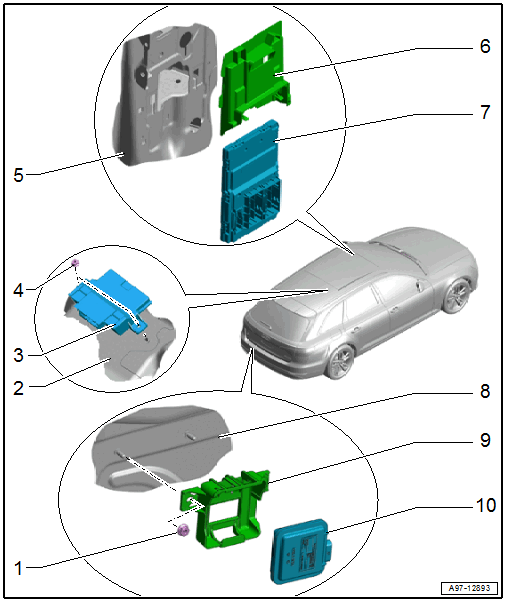

Fig 1: Locating Control Modules

Courtesy of AUDI OF AMERICA, LLC

1. Nut
   • 2 Nm
   • Quantity: 2
2. Body
3. Data Bus on Board Diagnostic Interface -J533-
   • There are different versions.
   • Overview. Refer to OVERVIEW - DATA BUS ON BOARD DIAGNOSTIC INTERFACE .
4. Nut
   • Tightening specification. Refer to OVERVIEW - DATA BUS ON BOARD DIAGNOSTIC INTERFACE .
   • Quantity: 2
5. Left A-Pillar
6. Mount
   • For Vehicle Electrical System Control Module -J519-
   • Removing and installing. Refer to Vehicle Electrical System Control Module -J519- MOUNT, REMOVING AND INSTALLING .
7. Vehicle Electrical System Control Module -J519-
   • Removing and installing. Refer to Vehicle Electrical System Control Module -J519-, REMOVING AND INSTALLING .
8. Body
9. Bracket
   • For Garage Door Opener Control Module -J530-
10. Garage Door Opener Control Module -J530-
    • Removing and installing. Refer to GARAGE DOOR OPENER CONTROL MODULE, REMOVING AND INSTALLING .
