Component Location Overview - Control Modules

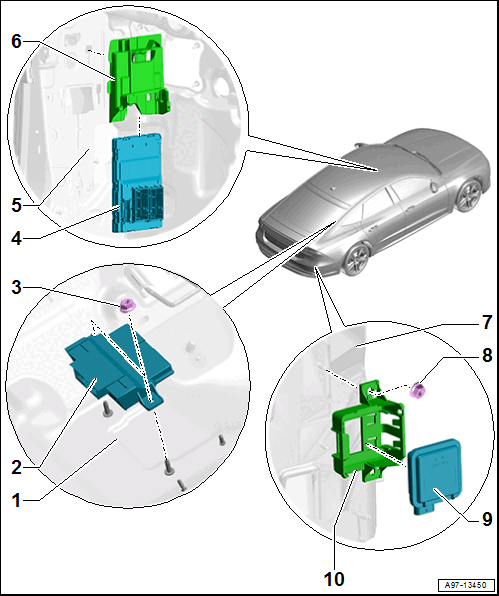

Fig 1: Component Location Overview - Control Modules

Courtesy of AUDI OF AMERICA, LLC

1. Body
2. Data Bus on Board Diagnostic Interface -J533-
   • Overview. Refer to OVERVIEW - DATA BUS ON BOARD DIAGNOSTIC INTERFACE .
3. Nut
   • Tightening specification. Refer to OVERVIEW - DATA BUS ON BOARD DIAGNOSTIC INTERFACE .
   • Quantity: 2
4. Vehicle Electrical System Control Module -J519-
   • Removing and Installing. Refer to Vehicle Electrical System Control Module -J519-, REMOVING AND INSTALLING .
5. Left A-Pillar
6. Mount
   • For the Vehicle Electrical System Control Module -J519-
   • Removing and Installing. Refer to Vehicle Electrical System Control Module -J519- MOUNT, REMOVING AND INSTALLING .
7. Body
8. Spring Nut
   • Replace after removing
     • A6: quantity: 1
     • A7 Sportback: quantity: 2
9. Garage Door Opener Control Module -J530-
   • A6 component location: on the lower mount for the rear bumper coverFig 2
   • A7 component location: under the right rear bumper cover.
   • Removing and Installing. Refer to GARAGE DOOR OPENER CONTROL MODULE, REMOVING AND INSTALLING .
10. Bracket
    • For the Garage Door Opener Control Module -J530-

A6 Component Location - Garage Door Opener Control Module

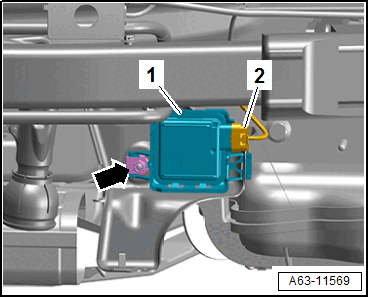

Fig 2: A6 Component Location - Garage Door Opener Control Module

Courtesy of AUDI OF AMERICA, LLC

The version with a trailer hitch is shown.
